NVIDIA DGX H100 Service Manual

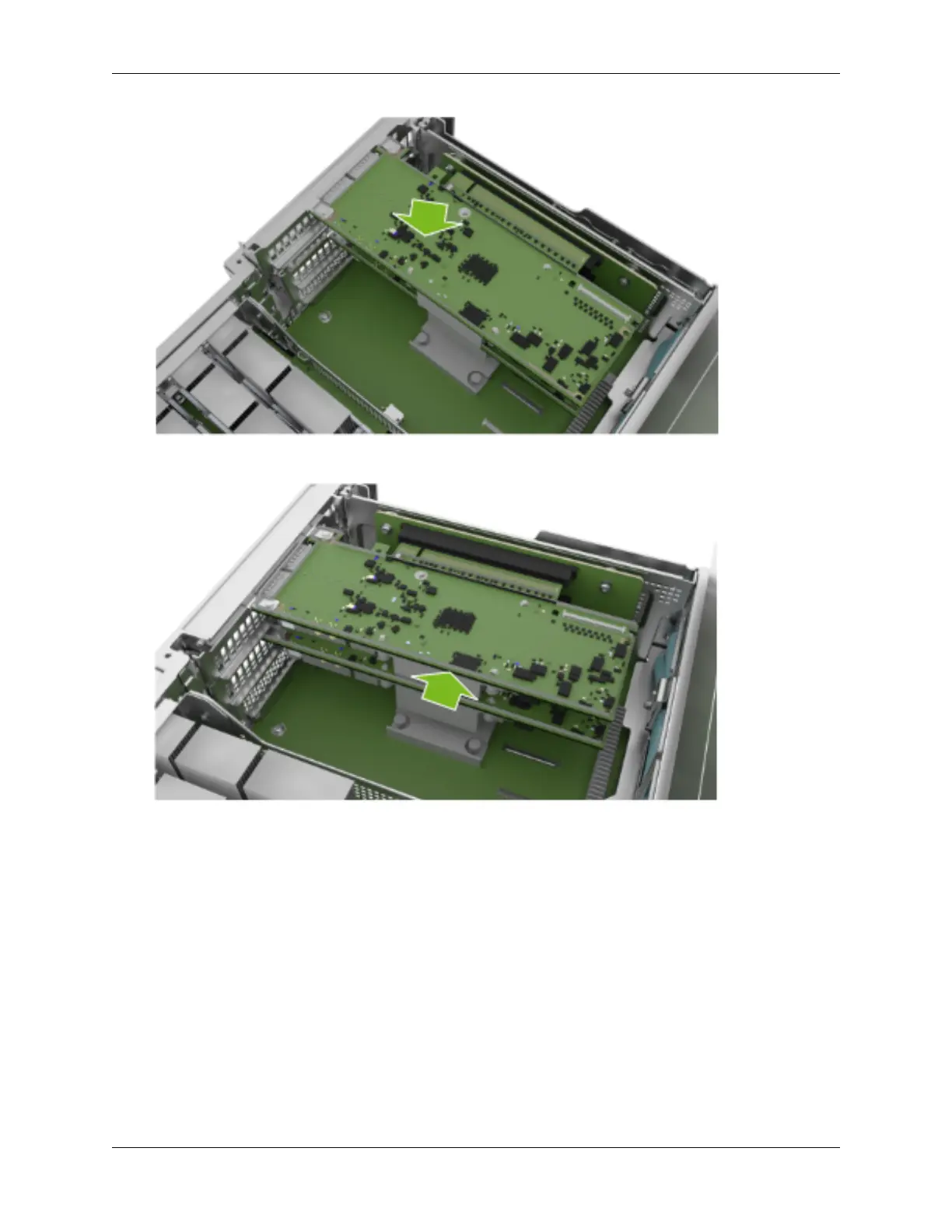

2. Push the card into the PCI slot:

3. Close the latch to lock the PCI cards in place:

94 Chapter 15. Motherboard Tray Battery Replacement
