NVIDIA DGX H100 Service Manual
3. Follow the instructions in the next steps to remove and insert the IPEX connectors.

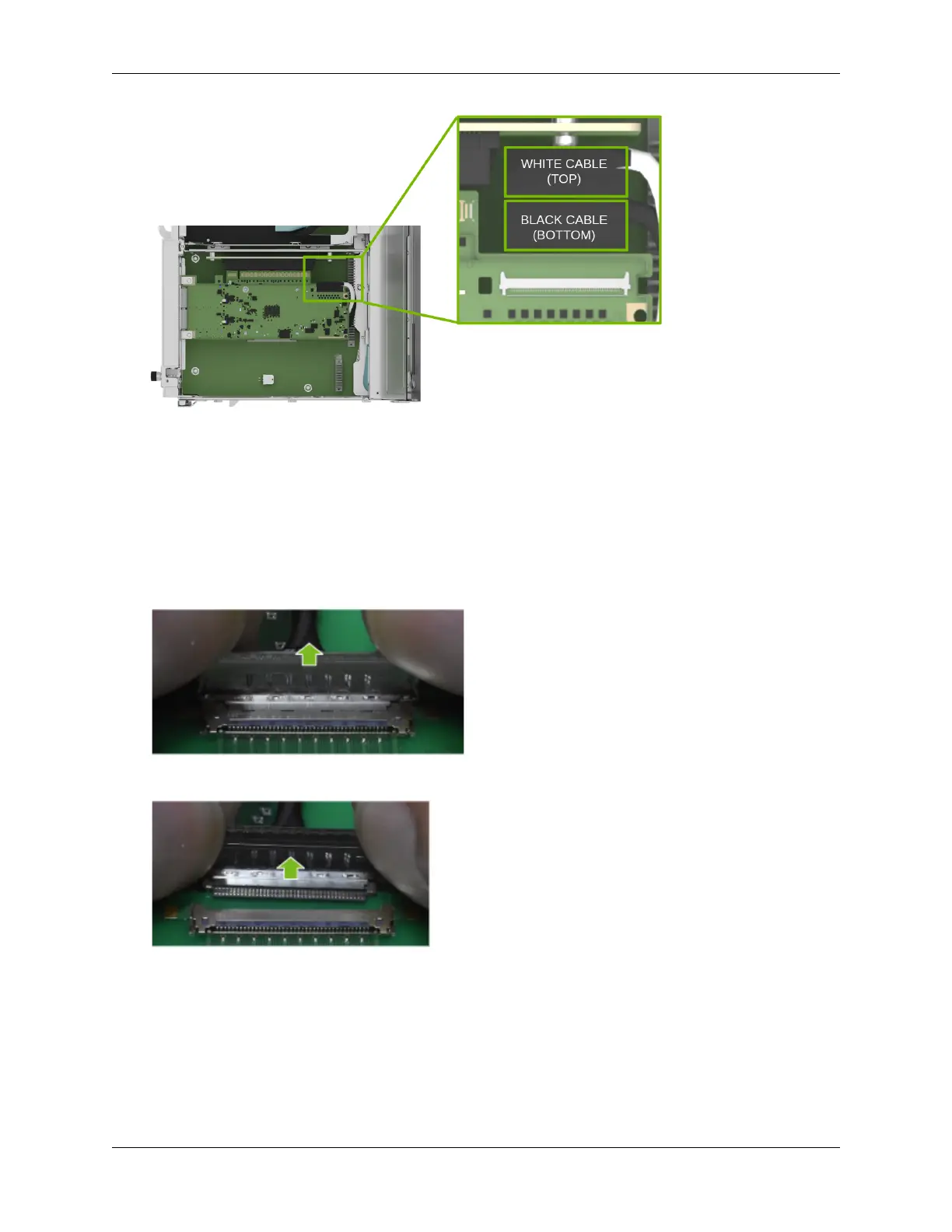

15.6. Remove an IPEX Cable
Repeat this process for both white and black cables.
1. Lift the locking door:
2. Push the cable away from the connector:
15.6. Remove an IPEX Cable 89
