NVIDIA DGX H100 Service Manual

17.2. Bezel Installation

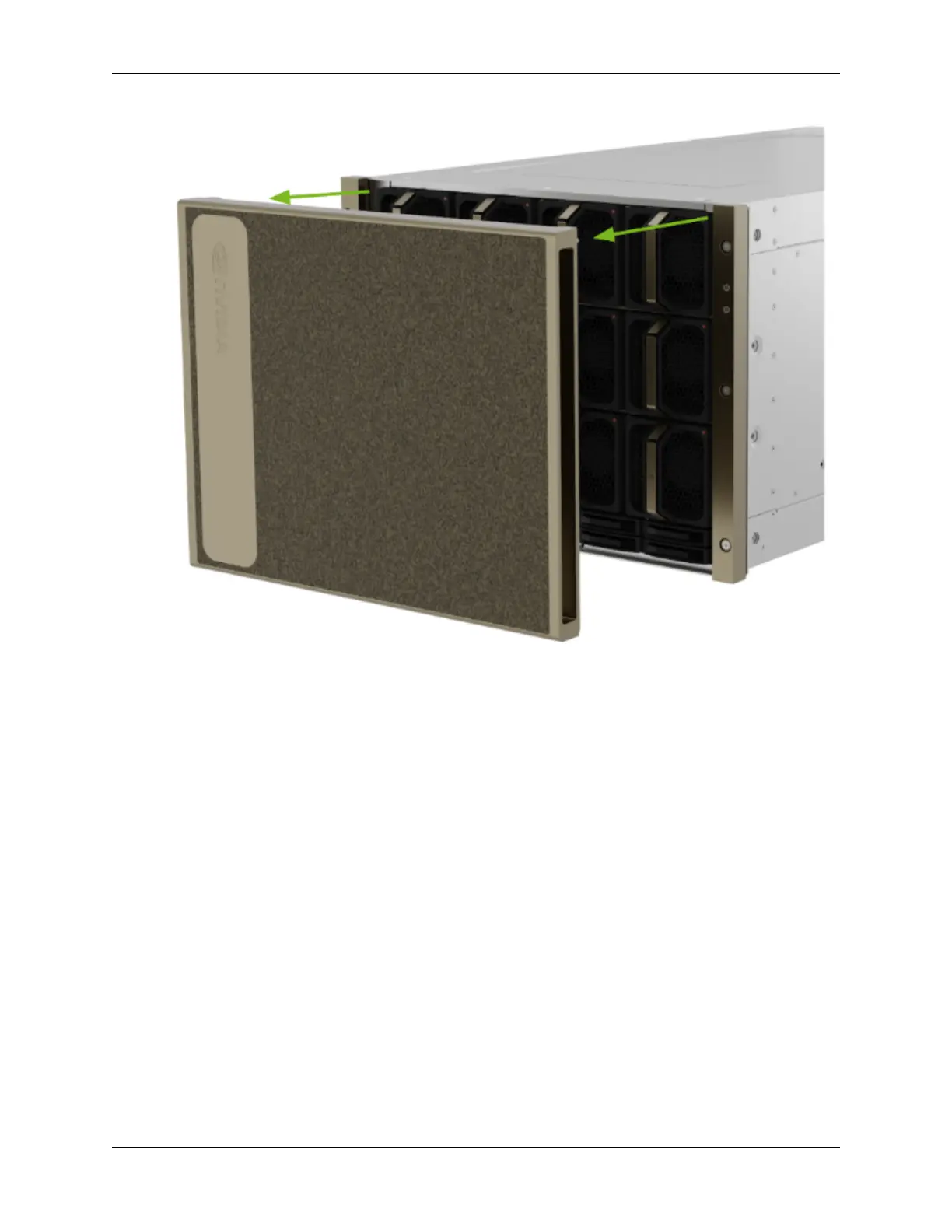

1. Align the pins on the bezel to the notches on the system fascia.

104 Chapter 17. Removing and Attaching the Bezel
