NVIDIA DGX H100 Service Manual

5.2. Release the Motherboard

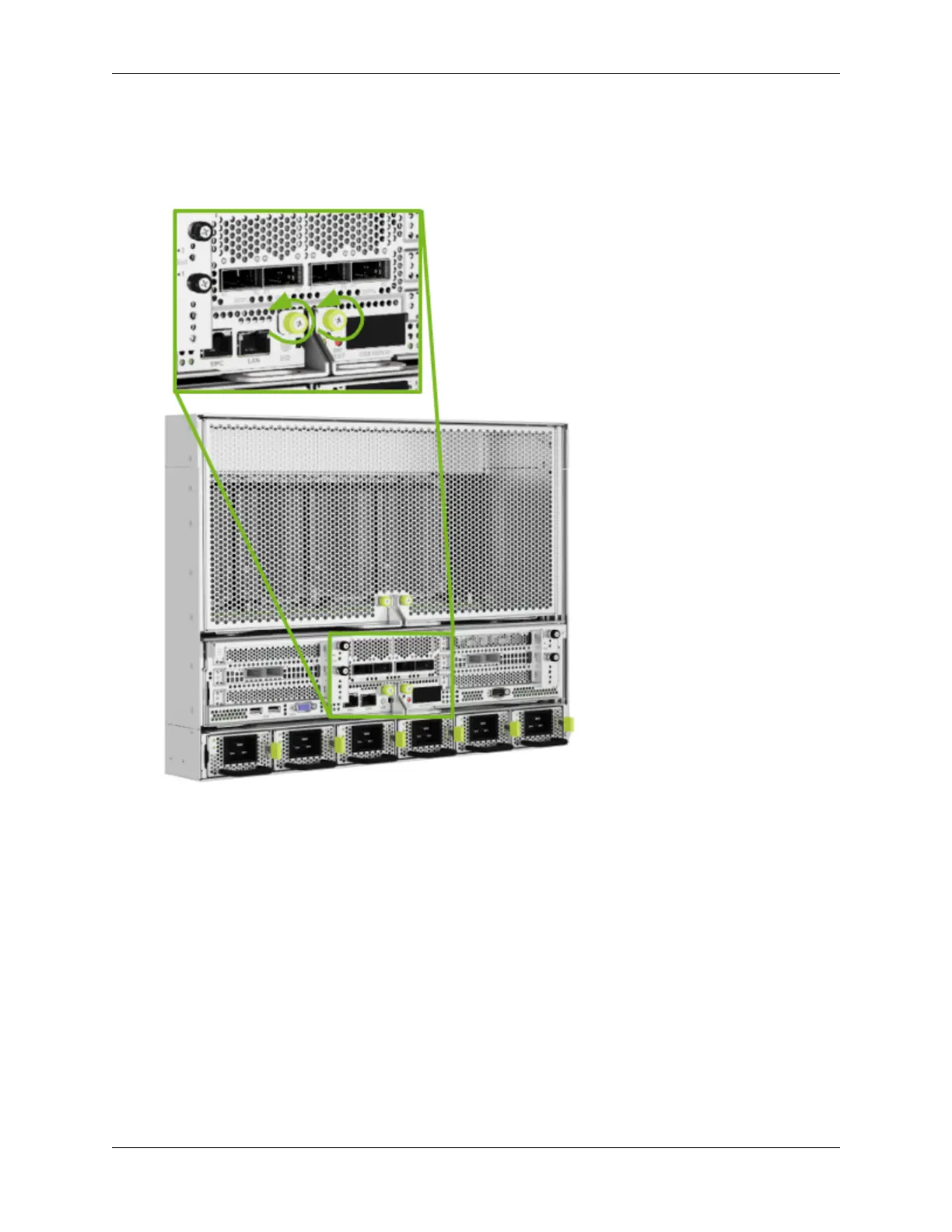

1. Unlock the motherboard by loosening the captive screws that hold the ejection levers in place:

2. Pull the ejection levers to disengage the midplane connectors:

28 Chapter 5. Motherboard Tray - Removal and Installation
