NVIDIA DGX H100 Service Manual

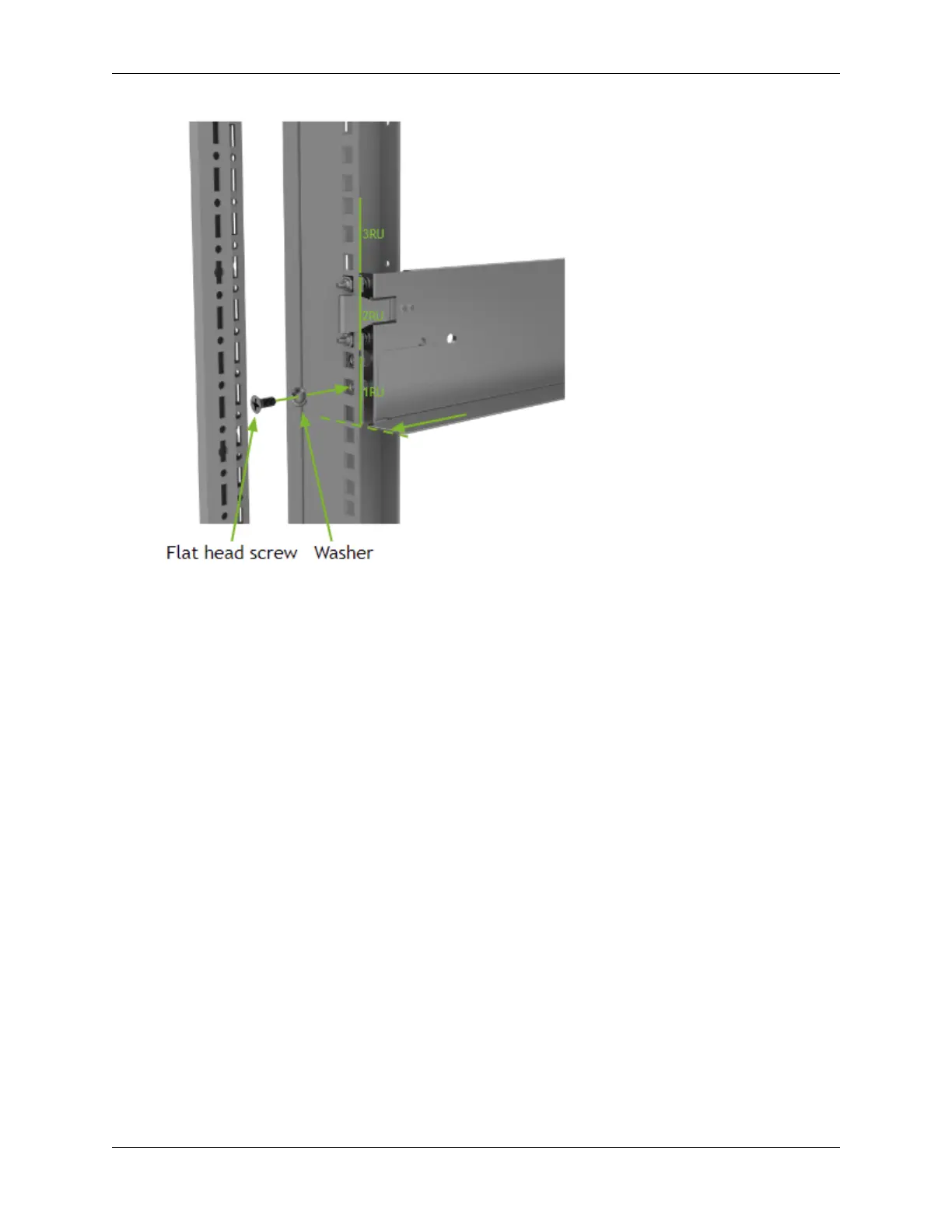

18.7. Install Rack Mount Kit - Rear
1. To install the rear section of the rack mount kit, follow the same steps to align the bottom lip to
the bottom of where the system should be.
2. Pull open the clip and insert the prongs through the corresponding holes in the second rack unit.
Make sure the prongs are fully extended. Release the clip so it locks the rack mount kit into place.
3. Install the round head screw in the rack mount kit to secure it to the post.
18.7. Install Rack Mount Kit - Rear 115

Nvidia DGX H100 Specifications

General

GPU	8x NVIDIA H100 Tensor Core GPUs
GPU Memory	640 GB HBM3 (80GB per GPU)
System Memory	2 TB DDR5
Form Factor	6U rackmount
Storage	30TB NVMe SSD
Power Supply	10kW
Interconnect	NVLink 4.0
