Chapter 17. Removing and Attaching

the Bezel

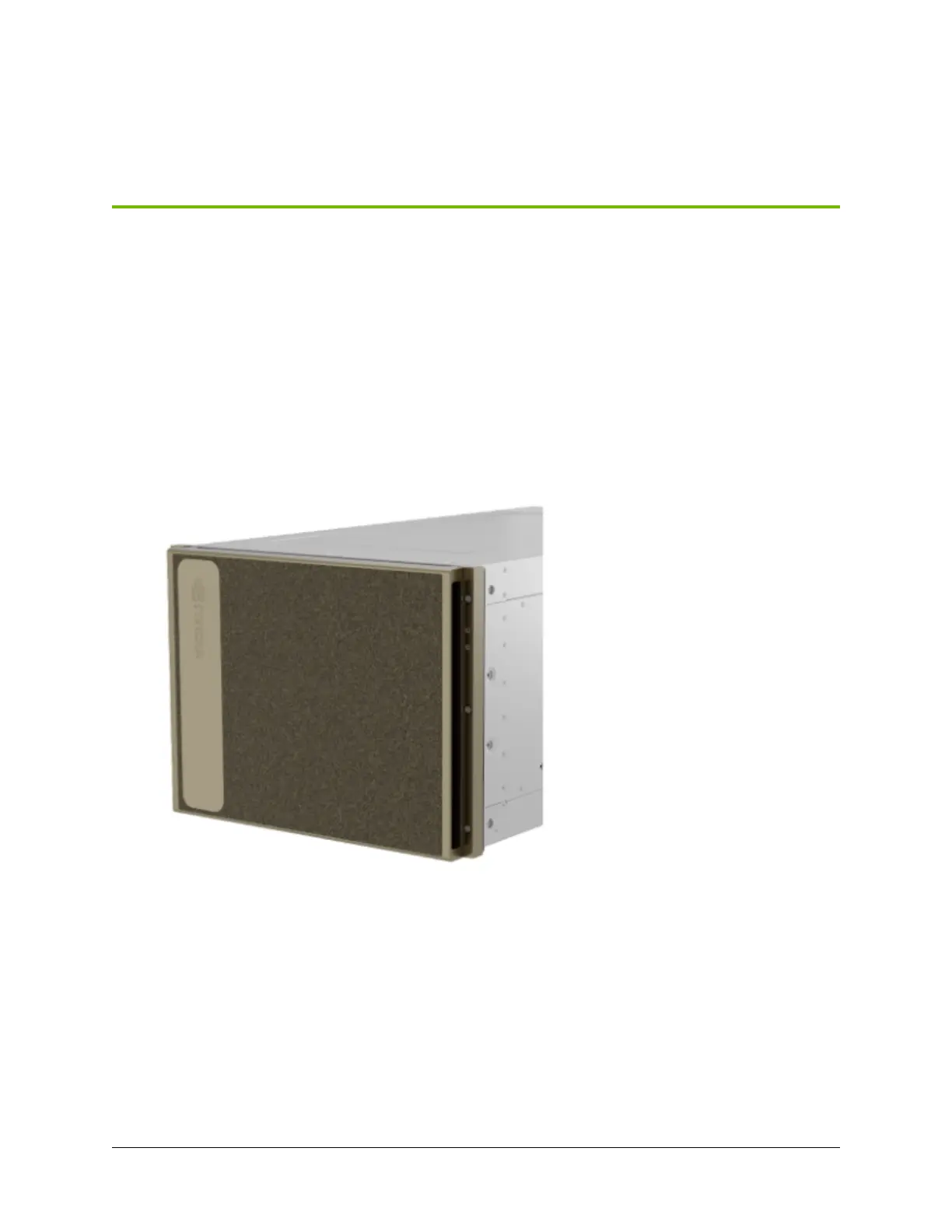

17.1. Bezel Removal

1. Grab the bezel on both sides by the side handles.

2. Pull the bezel away from the system with a horizontal motion to release it from the magnets that

keep it in place.

103
