NVIDIA DGX H100 Service Manual

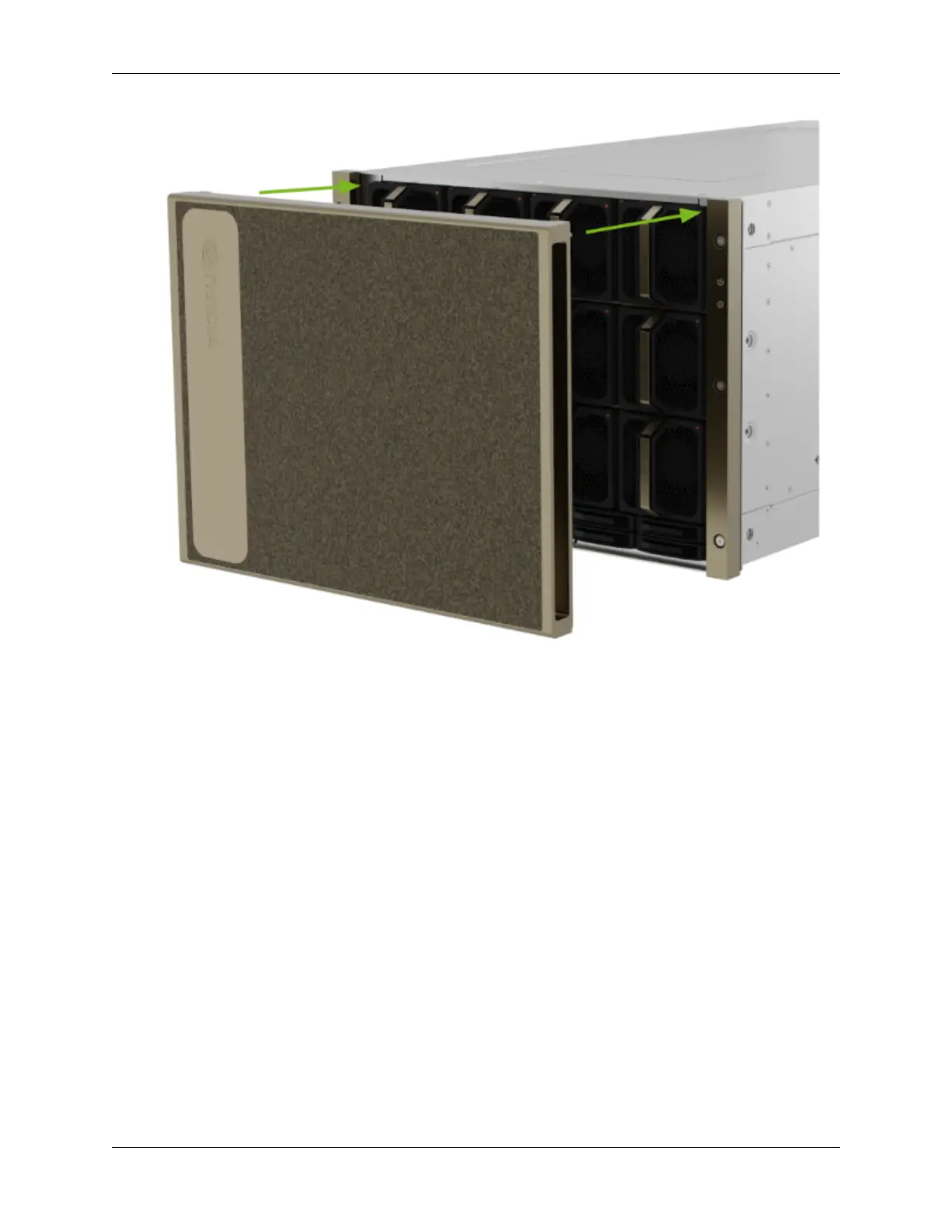

2. Attach the bezel to the system making sure the pins t in the notches and that the magnetic

latch holds the bezel securely in place.

17.2. Bezel Installation 105
