NVIDIA DGX H100 Service Manual

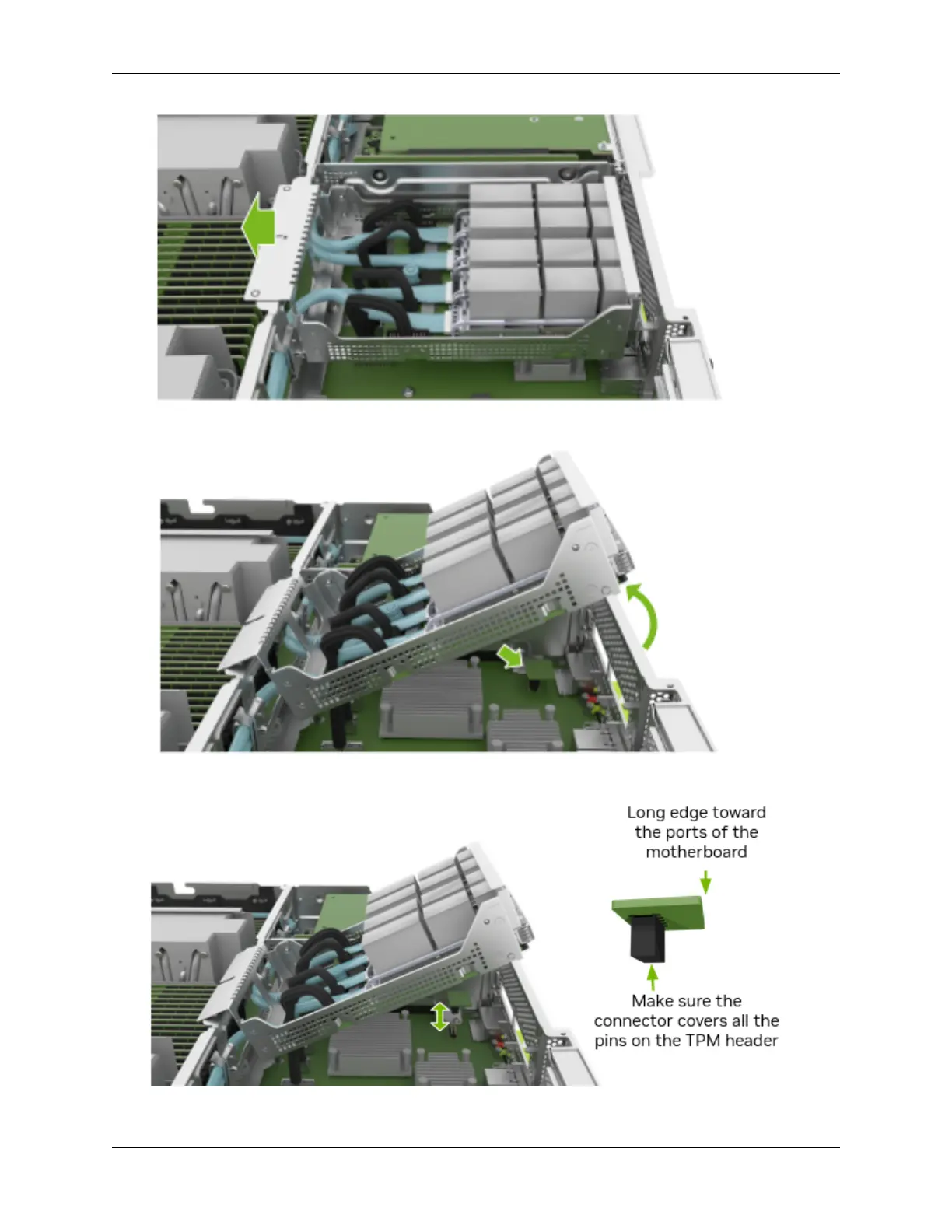

3. Rotate the OSFP carrier module to access the TPM, as shown in the following diagram:
4. Replace the TPM. Make sure that you position the TPM in the same direction as the original.
16.3. Replace the TPM Module 99

Table of Contents

Other manuals for Nvidia DGX H100

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Nvidia DGX H100 and is the answer not in the manual?

Nvidia DGX H100 Specifications

General IconGeneral
GPU8x NVIDIA H100 Tensor Core GPUs
GPU Memory640 GB HBM3 (80GB per GPU)
System Memory2 TB DDR5
Form Factor6U rackmount
Storage30TB NVMe SSD
Power Supply10kW
InterconnectNVLink 4.0
