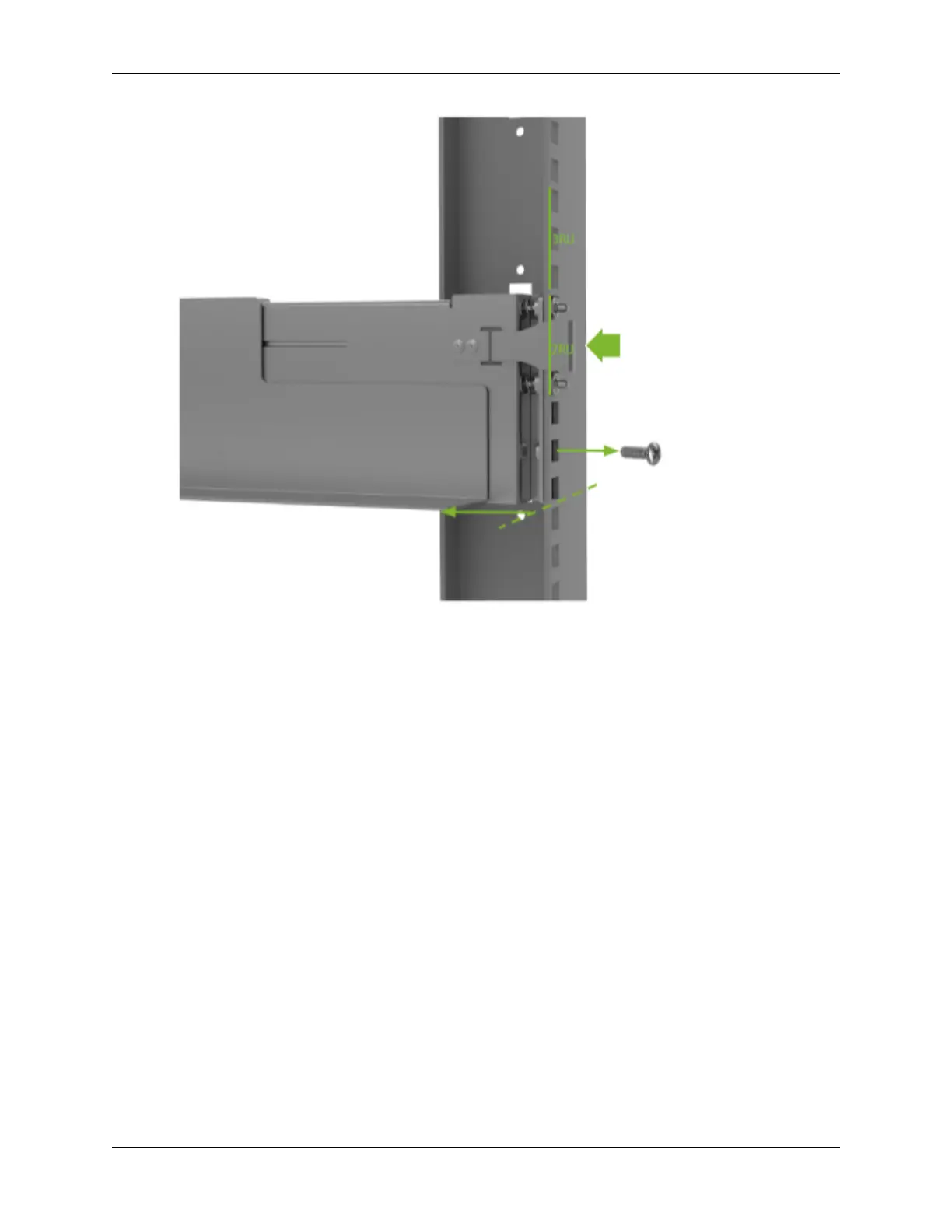

2. Pull on the metal clip and slide the rail away from the post so the progs are free from the rack.

110 Chapter 18. Rack Mount Kit Replacement
