NVIDIA DGX H100 Service Manual

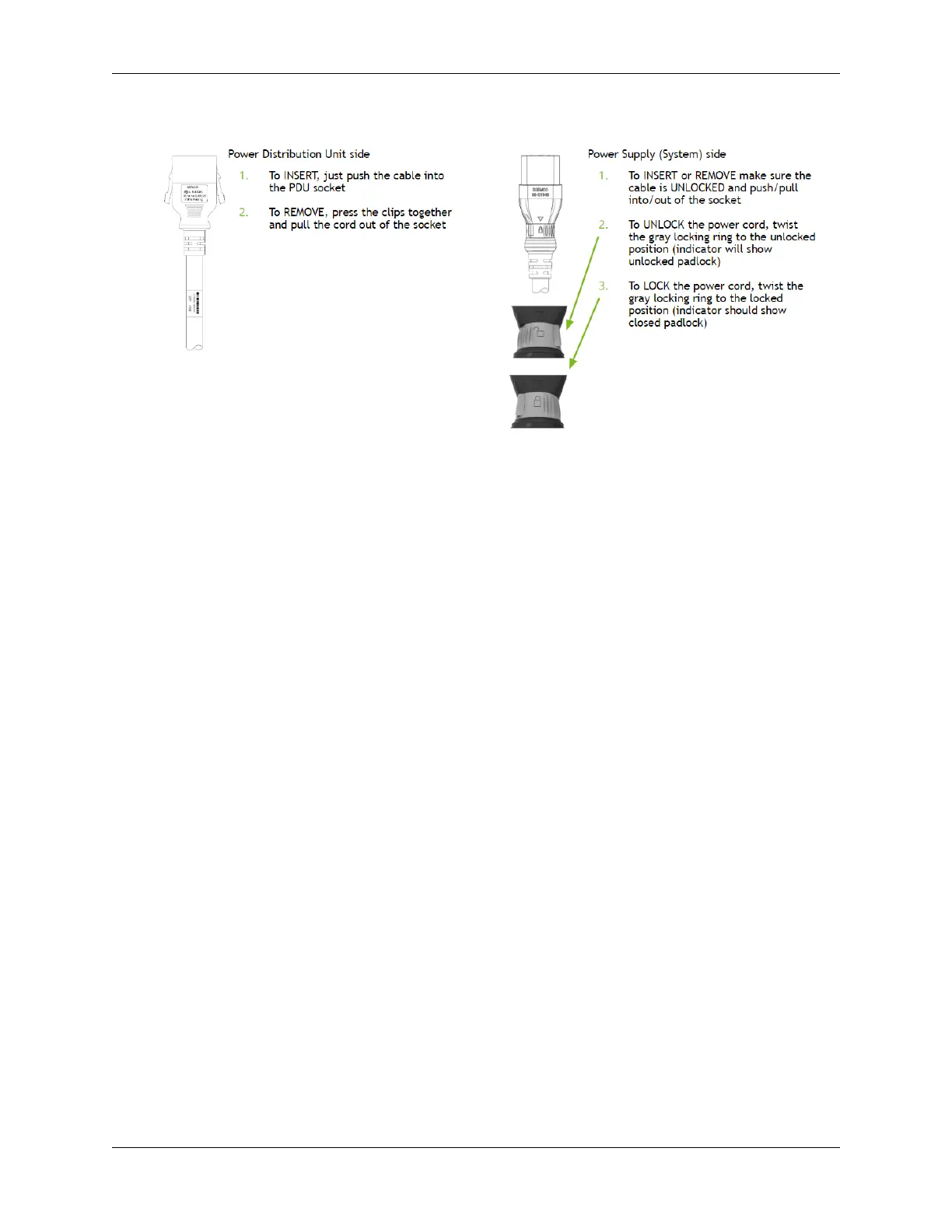

3. To remove the cable from the power supply, twist the locking ring to the unlocked position and

pull the cable out of the plug.

18 Chapter 3. Power Supply Replacement
