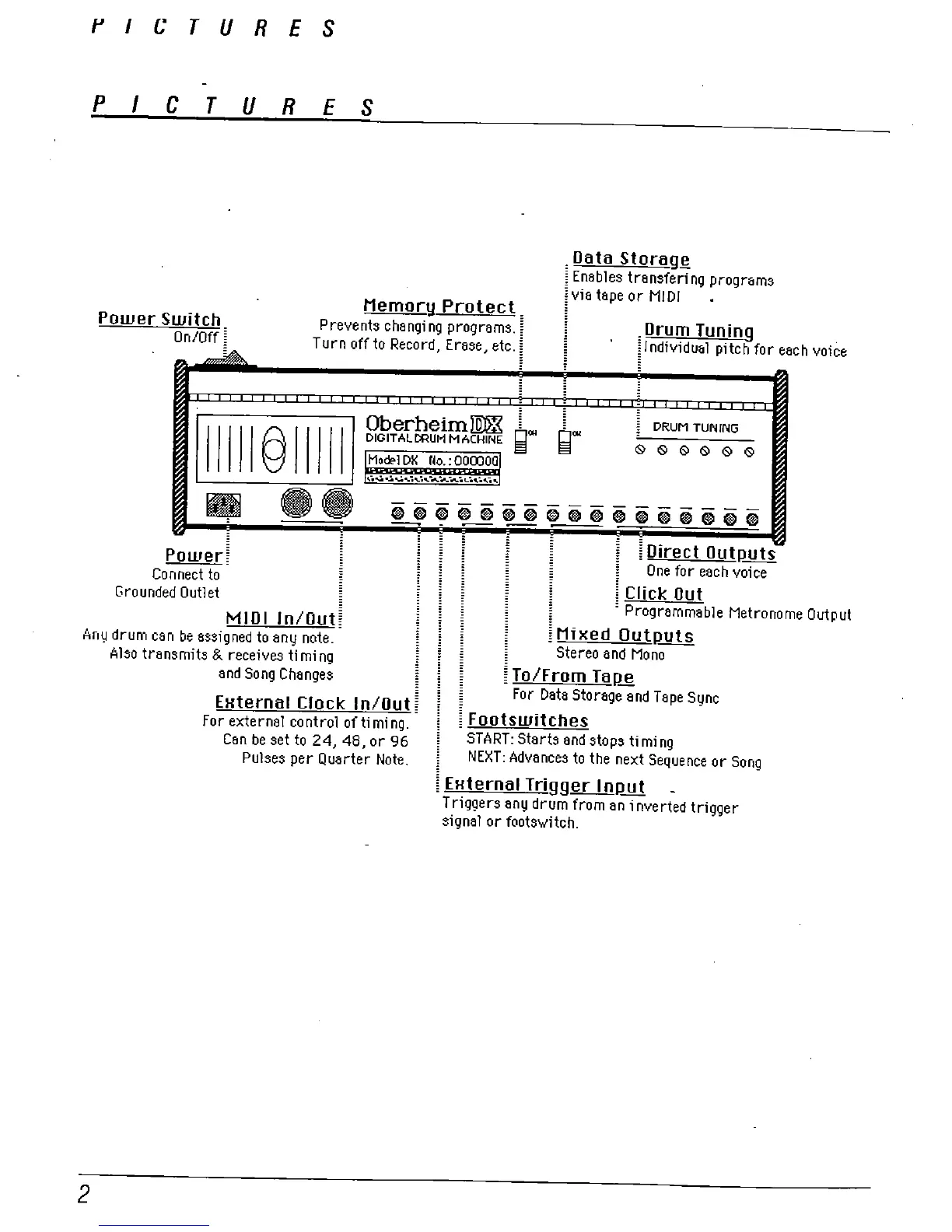

Power Switch
On/Off!
Memor
Protect
Prevents changi ng programs. 1
Turn off to Record
, Erase
, etc.
Data Stora
1 Enables transfering
programs
via tape o
Tunin
!Individual pitch for each voice
"'"91111'
Oberheim
DIG IT "'L DRUM M "'CHINE
Mocll DK 140.
: 000000
j DRUM TUN
ING
000000
;,........;..;..::.. ..-..;,,-........;,..
00(00000
00000
EHternal Clock: In/Out
For external control of ti mi
ng.
Can be set to 24
, 48
, or 96
Pulses per Quarter Note.
1 1
Direct Out(!uts
One for each voice
Click:Out
' Programmable Metronome Output
Mixed Out(!uts
Stereo and Mono
To/From Ta(!e
For Data Storage and Tape Sync
Footswitches
START: Starts and stops ti mi ng
NEXT: Advances to the next Sequence or Song
Power
Connect to
Grounded Outlet
MIDI In/Out
Any drum can be assigned to any note.
A130 transmits & receives ti
mi ng
and Song Changes
EHternal Tri
er In(!ut
Triggers any drum from an inverted trigger
signal or footswitch.
