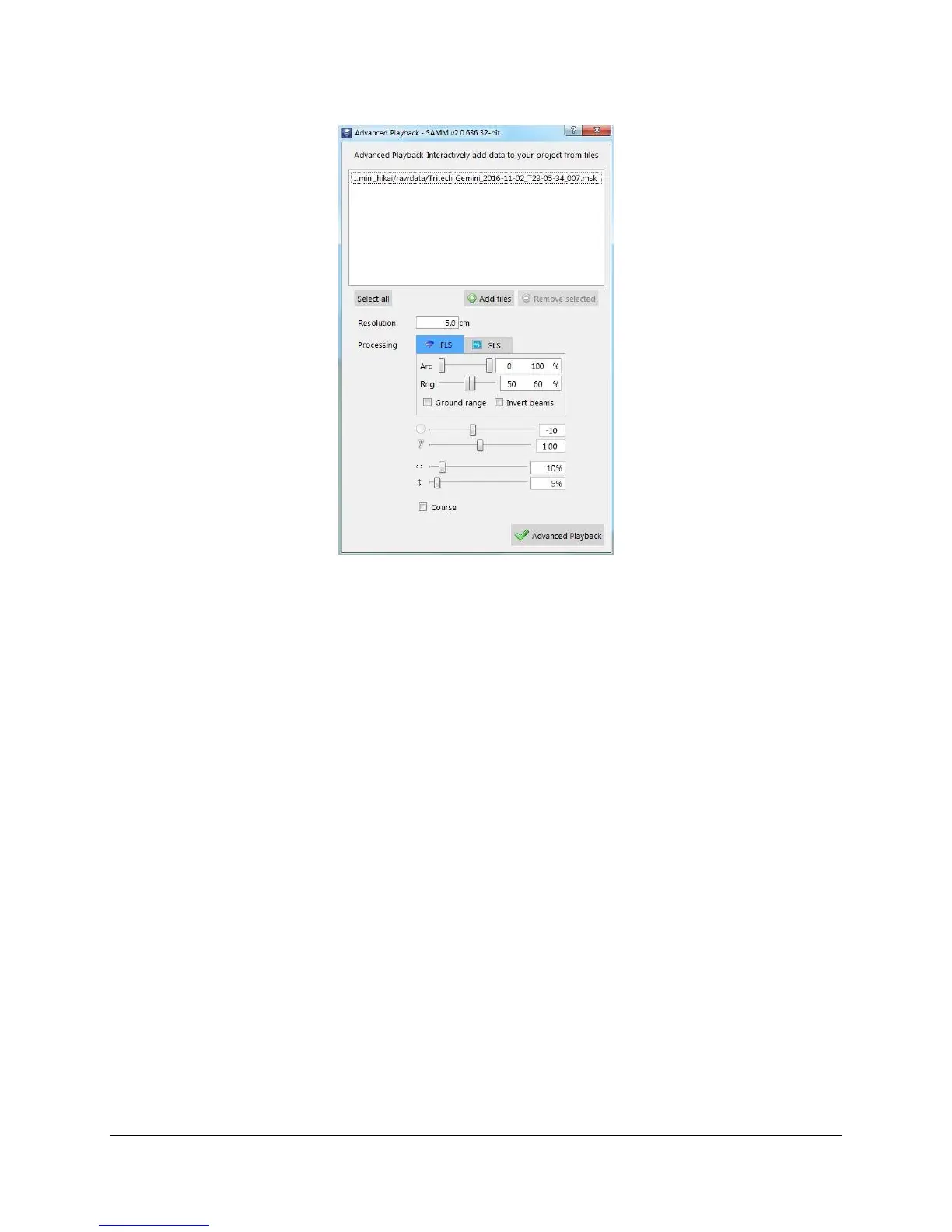

Figure 36. Advanced Playback Dialog
To load data files in Advanced load files mode:
1. Click the Add data icon.
2. Click the Advanced playback files icon.
3. Navigate to the directory containing the files.
4. Select files you wish to playback. Note that you can only playback the data of the same
format.
5. In the Advanced Playback dialog, add more files or remove selected files as necessary.
6. Set mosaic resolution.
7. Set mosaicking options or FLS or SLS data. For FLS data, set the arc and range, as well
as ground range(altitude data needs to be recorded) and invert beams. For SLS data,
set the minimum and maximum clipping ranges, ground range option and layback
options.
8. Set the gamma, brightness, horizontal feathering and vertical feathering of swaths.
9. Click Advanced Playback.
10. Monitor file loading progress in the status bar on the bottom right.
11. Click the Start button on the playback controls. The survey playback begins and mosaic
starts to build up.
