3.3 Main components

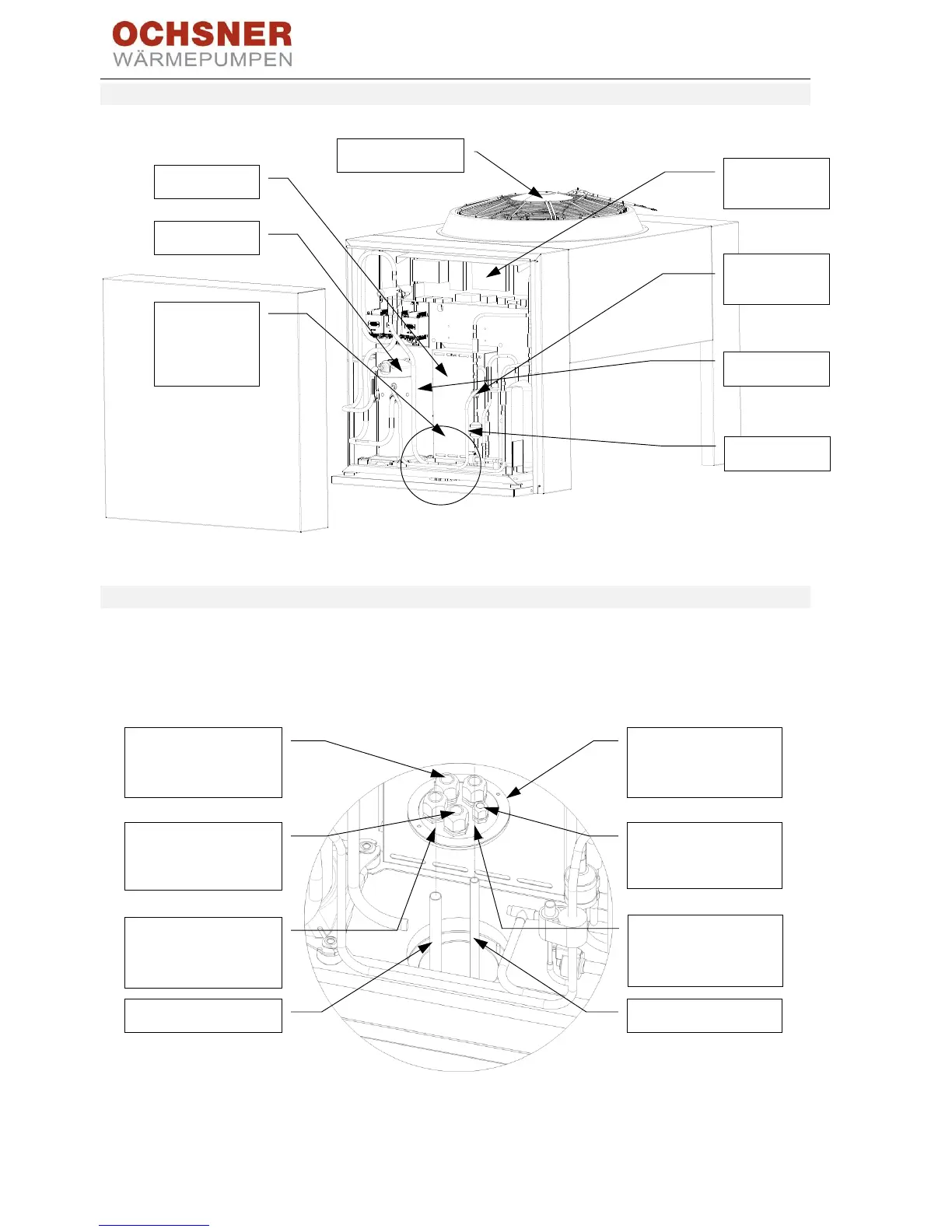

Figure 5: Outdoor unit main components
3.4 Cable entries
Remove the mounting plate to pass through the
hot gas and liquid pipes as well as the 3 supply
cables. After the outdoor unit has been
positioned, the pipes can be aligned and cables
passed through. When everything is ready, re-
align the mounting plate and tighten the cable
entries.
Figure 6: Outdoor unit conduits
Outdoor unit
control box
Compressor
Fan motor
Inverter
Refrigerant
circuit
Connection
line conduit
Cable entries
Liquid line
Hot gas line
Cable entries for control
cables
M25 x 1.5
Liquid line
Hot gas line
Conduits
Hot gas line
M25 x 1.5
Mounting plate
removed
Cable entry for BUS
cable
M16 x 1.5
Cable entry for power
supply
M25 x 1.5
Conduit
Liquid line
M25 x 1.5
