3.2 Opening the outdoor unit
The EAGLE outdoor unit is delivered as a closed
unit. It has to be opened for the connection of the
refrigeration and electric system. We recommend
securing the outdoor unit before removing the
casing cover.

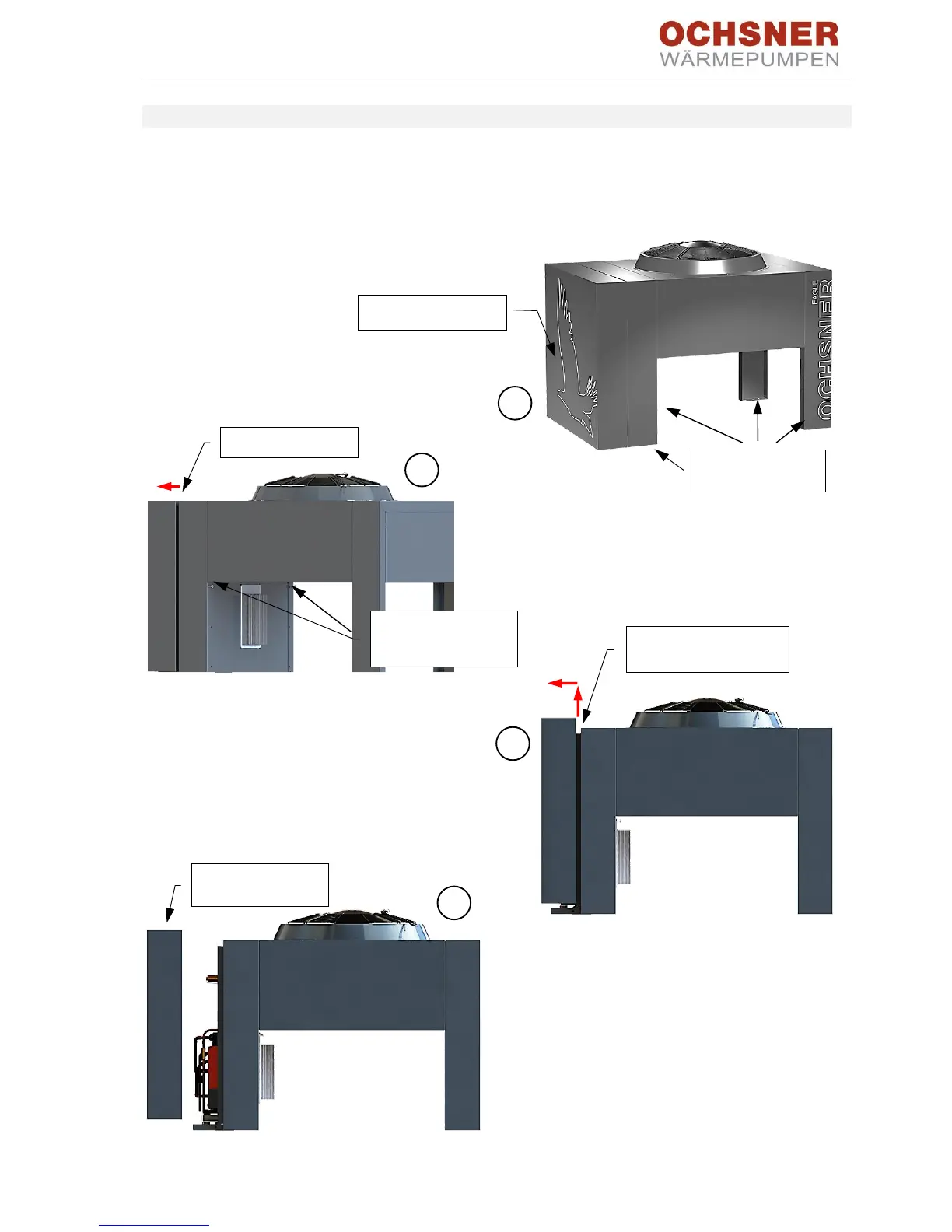

Procedure:
1. Secure the outdoor unit
2. Undo screws on the cover
3. Lift cover out
4. Remove cover
Cover can now be
removed
4
3
Slide cover upwards out
of the bracket
2
Undo 2 hexagon
socket 6 screws
M8x200
Release cover
Secure the
outdoor unit
1
Casing cover
