Ochsner Air Eagle 717 - Hydraulic and Refrigerant Connections

BA_OCHSNER AIR EAGLE_414_717_V06_EN.docx Page 22 of 76
Hydraulic and refrigerant connections
e01
Heating circuit flow 1" union nut with flat gasket
e02
Heating return 1" union nut with flat gasket
e50
Hot gas line
e51
Liquid line
c01
Cold water inlet 1" union nut with flat gasket
c06
DHW outlet 1" union nut with flat gasket
c10
DHW circulation 12 mm copper
c12
Safety valve drain

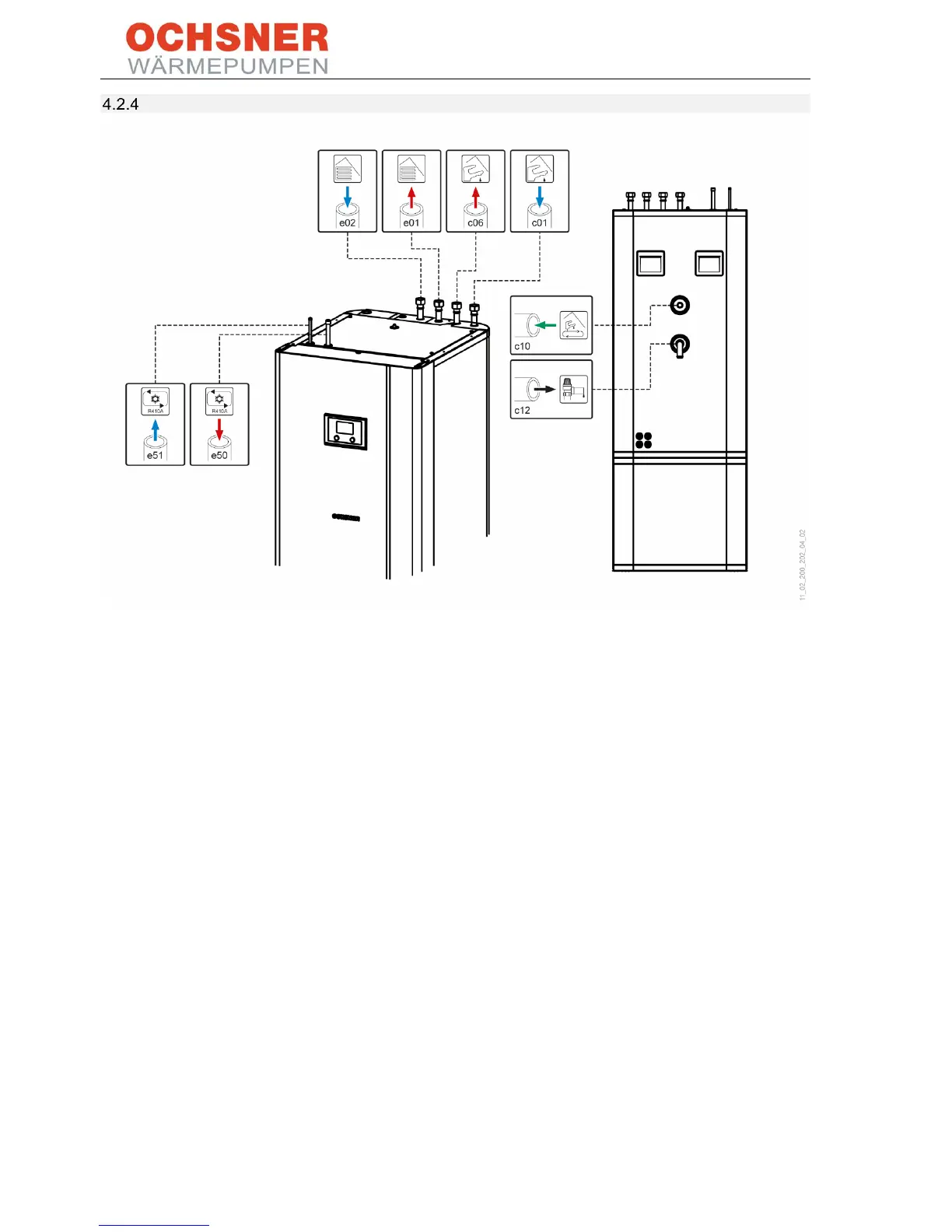

Figure 25: Hydraulic connections and labels, T200 refrigeration
