Ochsner Air Eagle 717 - Wiring Diagrams; EAGLE 717 with Golf-MIDI Indoor Unit

BA_OCHSNER AIR EAGLE_414_717_V06_EN.docx Page 41 of 76

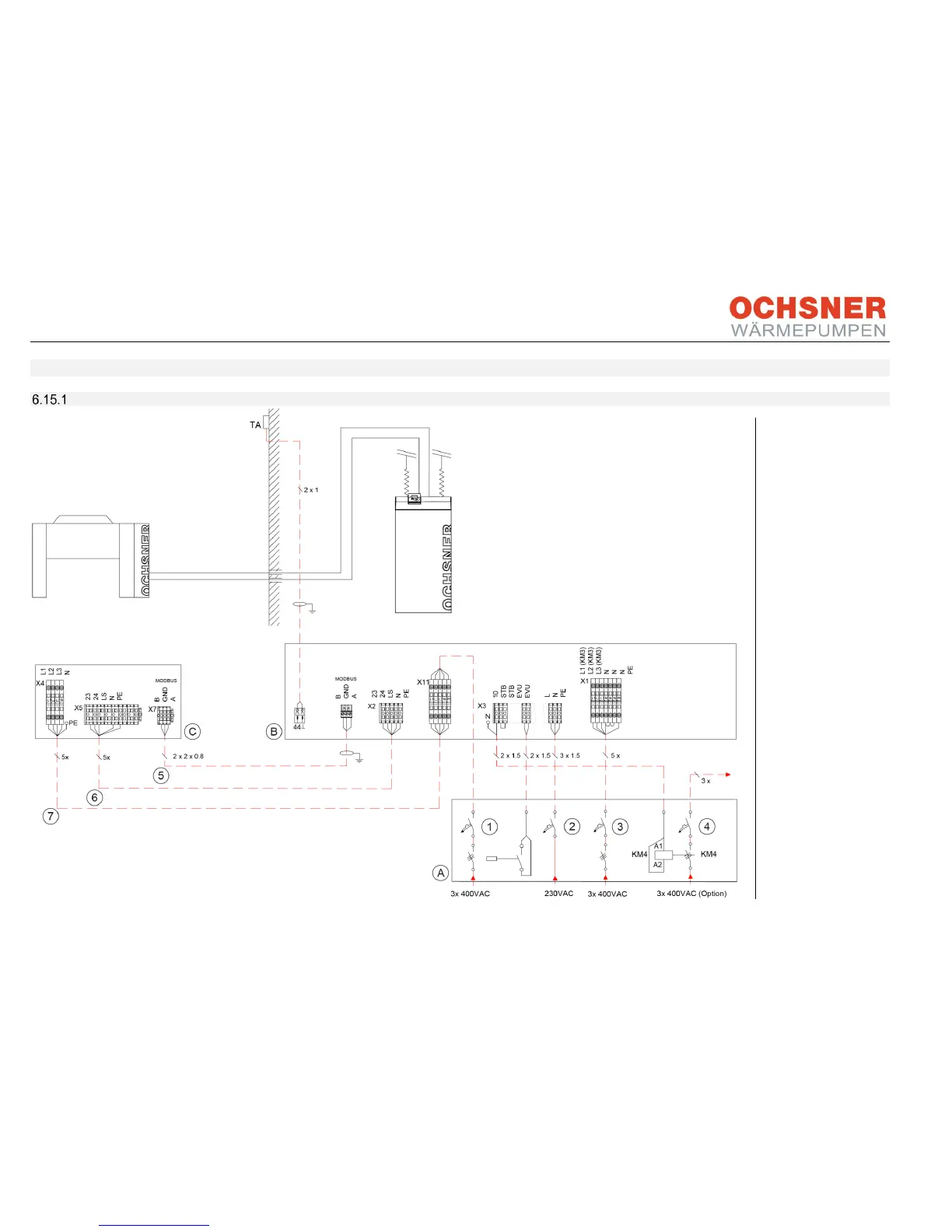

6.15 Wiring diagrams
EAGLE 717 with Golf-Midi indoor unit
A
Main distributor
B
Indoor unit control box
C
Outdoor unit control
box
1
Compressor supply
(C16A across all poles)
2
Controller supply
(C13A)
3
Electric booster heater
supply
(B16A across all poles)
4
Option:
Supply for DHW
auxiliary heater for
anti-legionella function
5
Modbus cable
6
Control cable
7
Compressor supply
