Ochsner Air Eagle 717 - Strip Foundation; Spot Foundation

BA_OCHSNER AIR EAGLE_414_717_V06_EN.docx Page 12 of 76

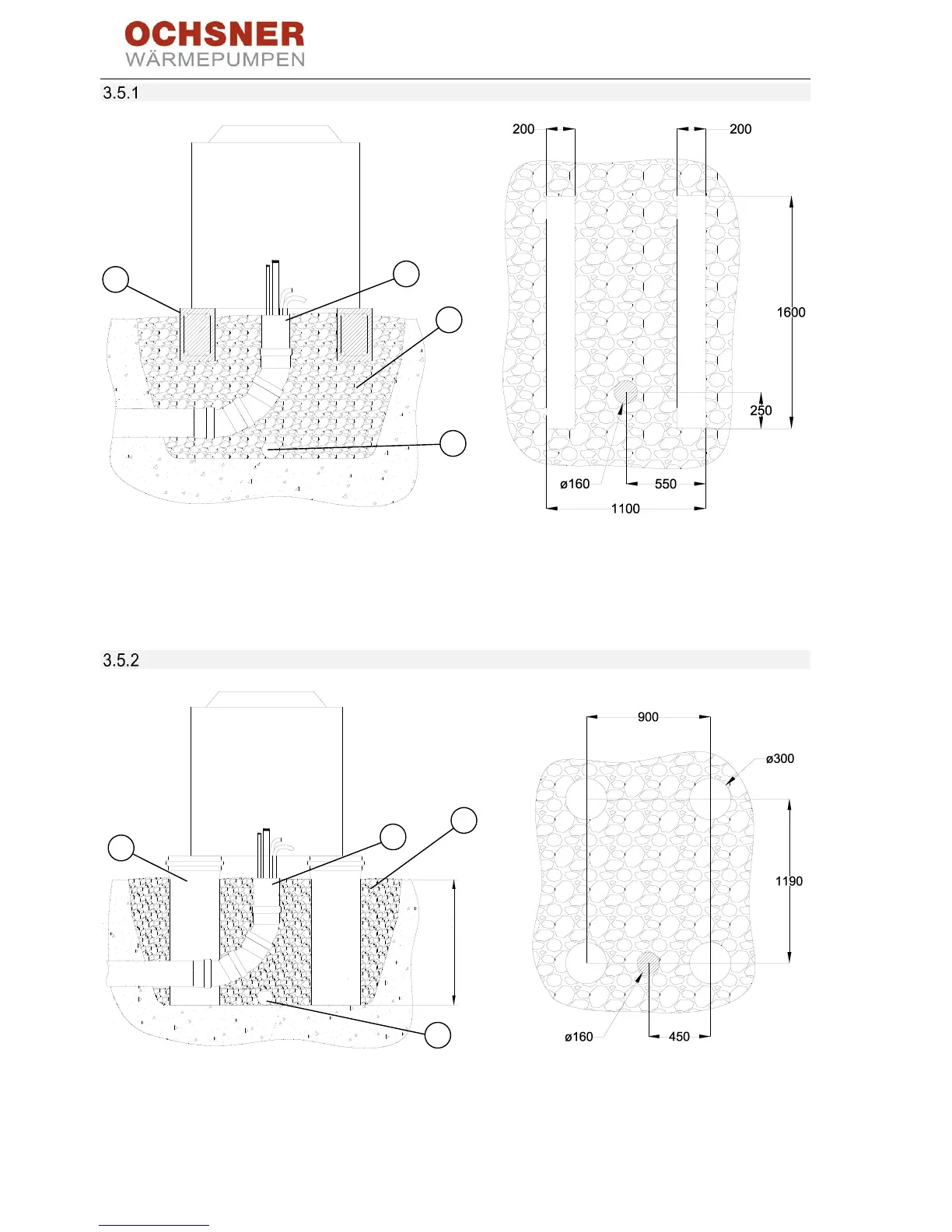

Strip foundation
1
Strip foundation
2
Pipe liner for the connecting lines (where installed underground)
3
Gravel bed
4
Drainage pipe (frostproof)
Figure 8: Strip foundation (dimensions in mm)
Spot foundation
1
Spot foundation
2
Pipe liner for the connecting lines (where installed underground)
3
Gravel bed
4
Drainage pipe (frostproof)
Figure 9: Spot foundation (dimensions in mm)
2
1
3
4
min. 800
2
1
3
4
