BA_OCHSNER AIR EAGLE_414_717_V06_EN.docx Page 21 of 76

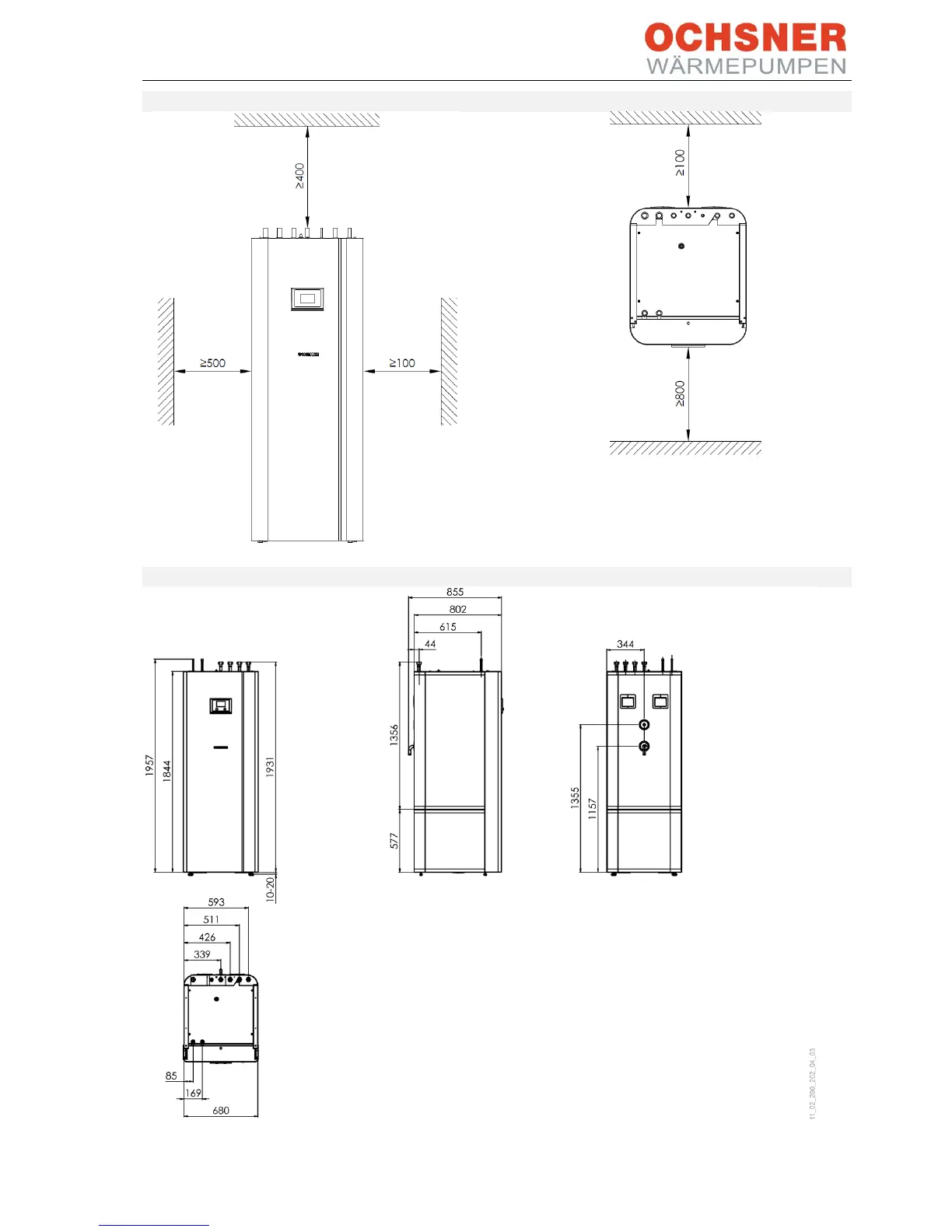

4.2.3.1 Minimum wall clearances
Figure 23: Minimum clearances (in mm)
Minimum clearances to the side can be either to
the right or the left.
4.2.3.2 Dimensions
Figure 24: Dimensions (in mm)
