4.1.3.2 Dimensions

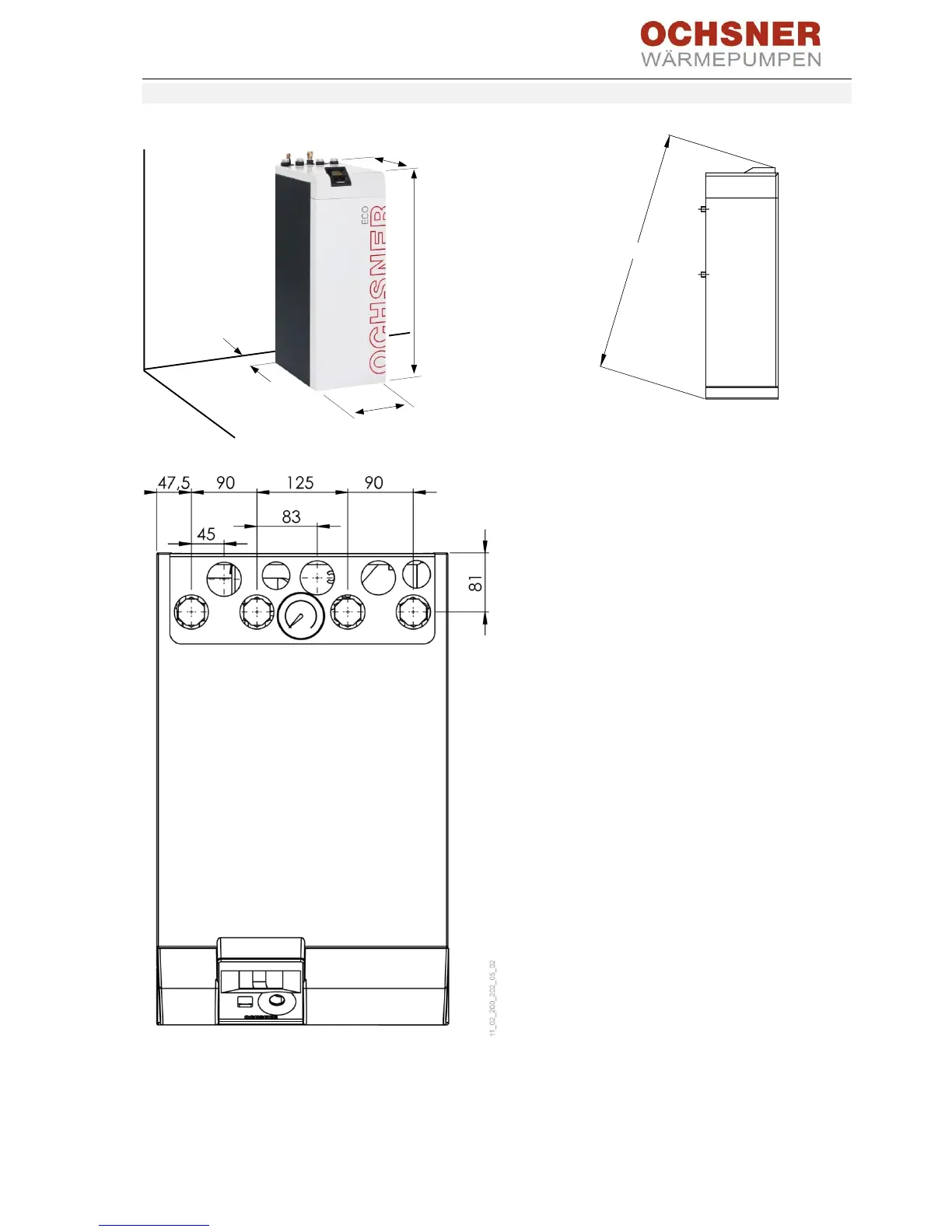

Figure 16: Indoor unit dimensions
Figure 17: Indoor unit tilt height
Figure 18: Indoor unit connection dimensions
min. 50 mm
1150 mm
400 mm
650 mm
approx. 132 cm
