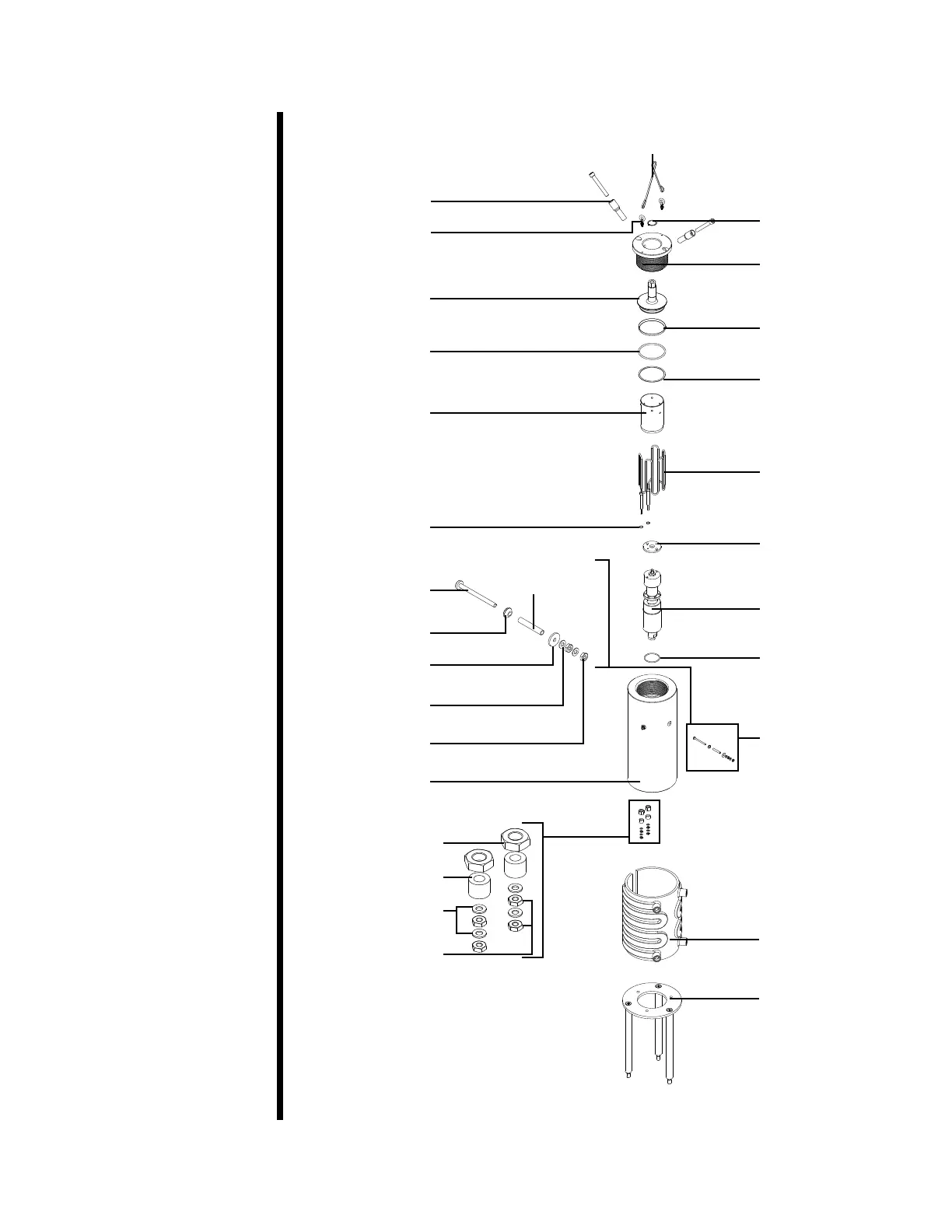

Cell Diagram for
Model 2025
Lifting Hook
(#120-35-130-1)
Retaining Ring
(#120-35-005-1)
Eyehook ½"
(#120-00-123)
Cell Cap Handle
(#120-40-009)
Cell Cap
(#120-35-003)
O-ring (#120-149)
Mandrel
(#120-35-002)
Retaining Ring
(#120-148)
Backup Ring
(#120-35-004)
Heater Shield
(#120-35-057)
Heater Coil
(#120-202)
Heater Gasket
(#120-204)
Drive Table
(#120-147-017)
Cell Body
(#120-35-001)
Sleeve
(#120-35-097A)
Washer
(#120-90-097C)
Washer
(#120-206C)
Nut (#120-206D)
Seal (#120-35-007)
Contact Post
(#120-35-008)
Cooling Jacket
(#120-35-095)
Cell Stand
(#120-35-014)
Hex Nut, Qty: 2
(#120-202A)
Spacer, Qty: 2
(#120-202B)
Washer, Qty: 4
(#120-202C)
Hex Nut, Qty: 4
(#120-202D)
Mag Drive
Assembly
(#120-147)
Mag Drive
Metal O-ring
(#120-147-014)
Contact Pin Assembly
(#120-35-097)
