OfiTE 2025 - Slurry Cup Diagram

OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ote.com 59

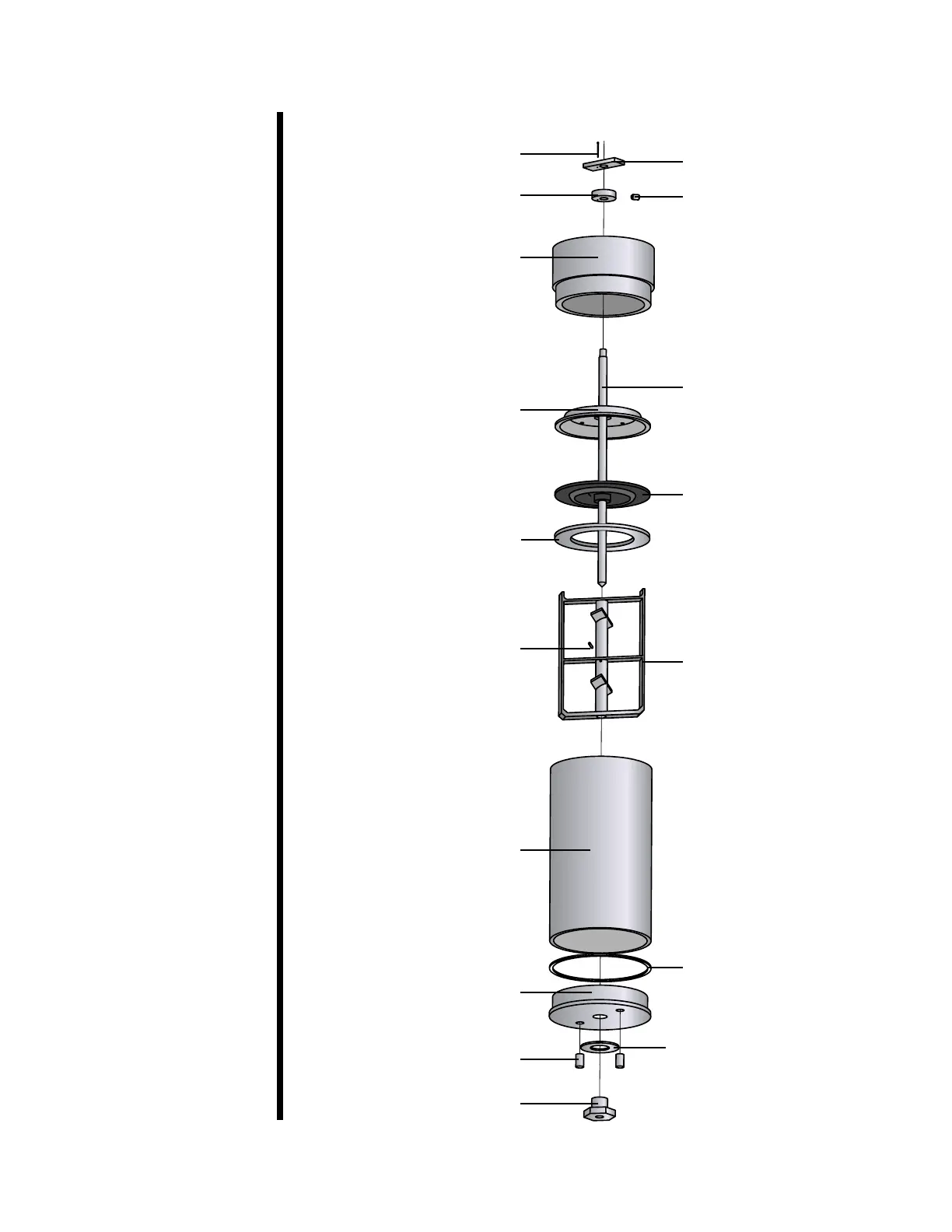

Shear Pin (#120-511)
Drive Disk (#120-509)
Expansion Chamber Lid
(#120-522)
Diaphragm Support
(#120-515)
Diaphragm Retaining Ring
(#120-508)
Paddle Pin (#120-503)
Sleeve (#120-501)
Base (#120-516)
Drive Pin (#120-512)
Pivot Bearing (#120-504)
Drive Bar (#120-510)
Drive Disk Set Screw (#120-514)
Paddle Shaft (#120-520)
Molded Diaphragm
#120-502 - Below 400°F
#120-40-502 - Above 400°F
Paddle (#120-506)
Gasket (#120-513)
Pivot Bearing Gasket (#120-505)
#120-521 Slurry Cup Assembly With Expansion Chamber
Appendix
Slurry Cup Diagram
