1. Configuration
1.5.2 Specification of network interface
1.5.2.1 General of network interface
Spec.
Network Protocol
TCP/IP sepc. Network layer
ARP, IP, ICMP, IPv6, IPSec
Transf
er layer
TCP, UDP
Application layer
L
PR, Port9100, FTP, HTTP, HTTPS, IPP, SNMPv1/v3, TELENET,
DHCP/BOOTP, DNS, DDNS, WINS, UPmP, Bonjour, SNTP,
SMTP, POP, Windows Rally (WSD Print, LLTD).
NBT/NetBEUI: SMB, NetBIOS, NetBIOS o
ver TCP
Netware: Remote printer mode(Maximum 8 print sever )
Print sever mode (Maximum 8 files sever: 32 queue)
For encrypted password (when it is print sever mode)
NetWare6J/5J/4.1J (NDS, bindery)
SNMP
EtherTalk: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP
IEEE802.1X: EAP-TLS, PEAP
(2) Cable
Non-shield twisted-pair cable with RJ-45 connector
(Category 5 is recommended)
1.5.2.3 Signal of network interface
Pin No. Signal name Direction Function
1 TXD+ FROM PRINTER Transmission data +
2 TXD- FROM PRINTER Transmission data -
3 RXD+ TO PRINTER Receive data +
4 − − Not use
5 − − Not use
6 RXD- TO PRINTER Receive data -
7 − − Not use
8 − − Not use

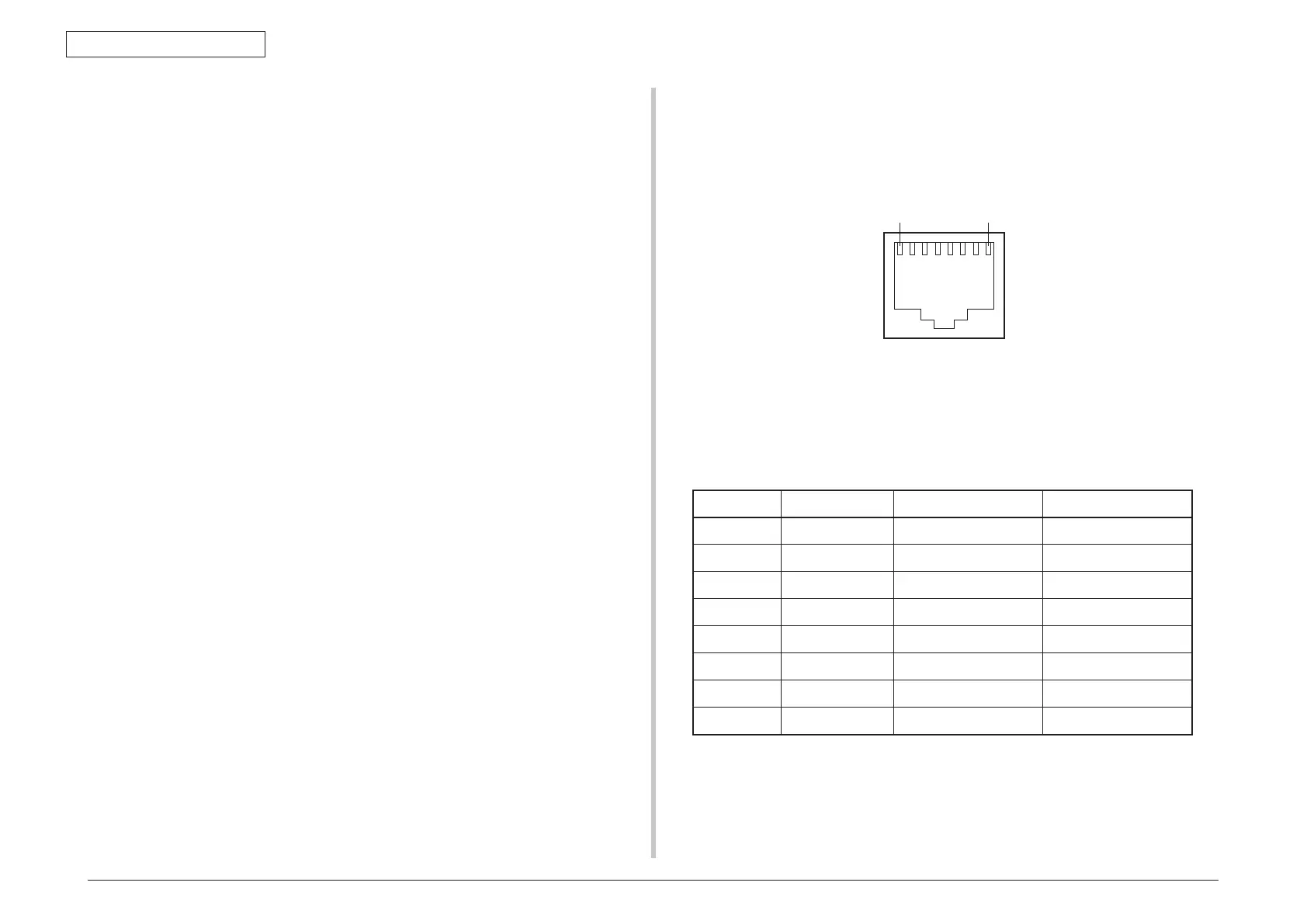

1 8
1.5.2.2 Connector and cable of network interface
(1) Connector
100BASE-TX/10 BASE-T (Auto switch, cannot be used simultaneously)
Connector pins array
