2. Operating instructions
(1) Electrophotographic processing
The general of Electrophotography process is described as below.
1. Charging
The voltage is impressed to CH roller, and the surface of OPC drum is
electrified.
2. Exposure
LED
head irradiates light to the image signal on the surface of the electrified
OPC drum. The electricity of the irradiated part on the surface of the OPC drum
is attenuated by changing in light intensity, the electrostatic latent image is
formed on the surface of the OPC drum.
3. De
velopment
The
electrified toner adheres to the electrostatic latent image of the OPC drum
by electrostatic force, and the image is developed on the surface of the OPC
drum.
4. T
ransf
er
The paper is overlapped on the surface of the OPC drum, and the electricity
is generated on the back of the paper by transfer roller, the toner image is
transcribed to the paper.
5. Fusing
Heat
and pressure
are applied to the toner image on the paper in order to make
it fusing.
6. Drum cleaning
The drum cleaning b
lade removes the toner left on the OPC drum after transfer.
7. Electricity removal
The electric potential left on the drum is removed.
8. Belt cleaning
The belt cleaning blade removes the toner left on the belt.

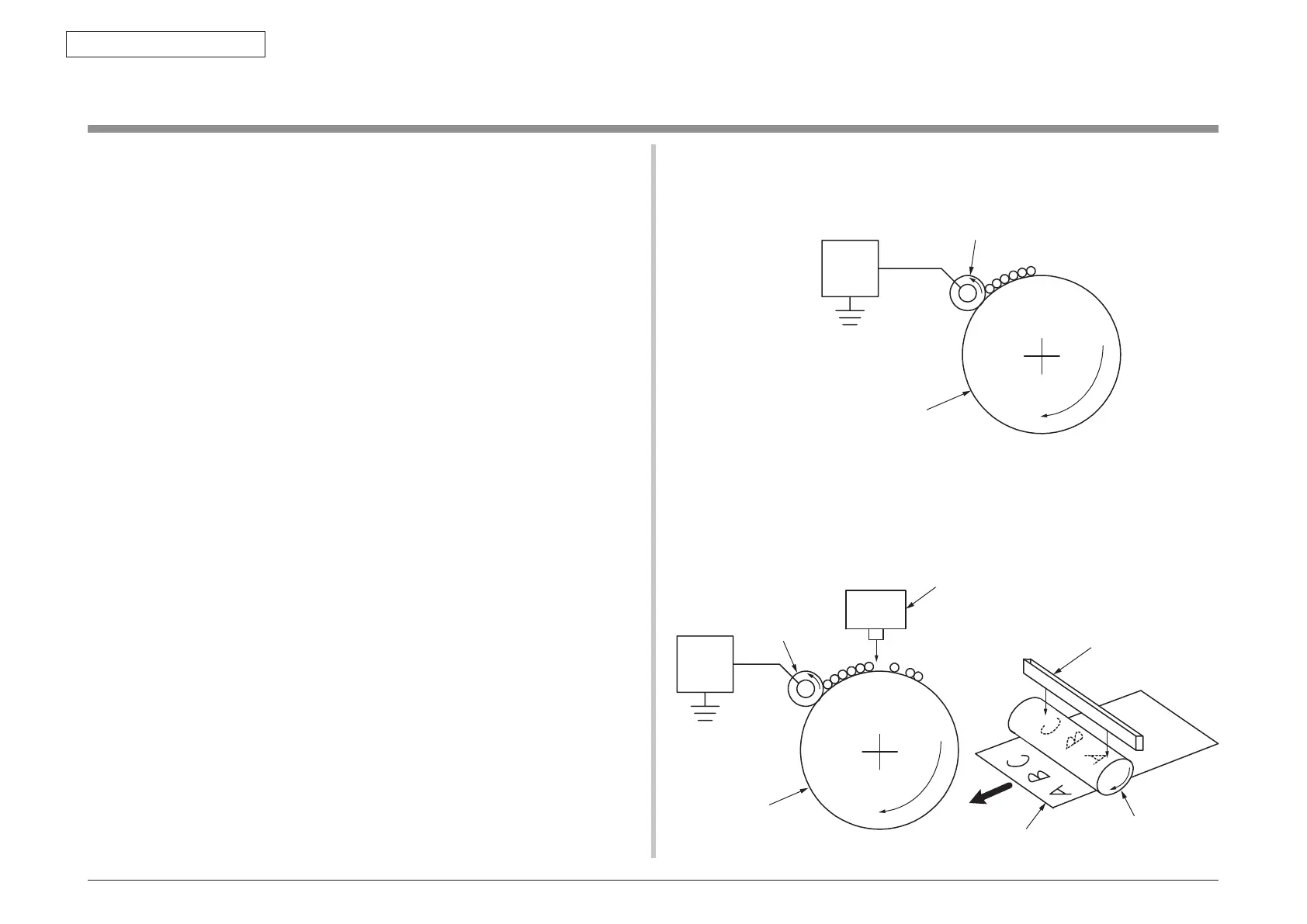

2.1 Electrophotographic processing mechanism
(2) Charging
The voltage is impressed to the charging roller in contact with the surface of
OPC drum, and the surface of OPC drum is charged.
(3) Exposure
Th
e light generated from LED head is irradiated onto the surface of the electrified
OPC drum. The electricity of the irradiated part on the surface of the OPC drum is
attenuated by changing in light intensity, the electrostatic latent image is formed
on the surface of the OPC drum.
-
-
-
-
-
-
-
-
-
Power
unit
OPC drum
Paper
LED head
OPC drum
LED head
Charging roller
-
-
-
-
-
-
Power
unit
Charging roller
OPC drum

Oki C610N Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Print speed (color, normal quality, A4/US Letter)	34 ppm
Maximum internal memory	768 MB
Mobile printing technologies	-
Supported network protocols (IPv4)	10/100-TX
Maximum duty cycle	75000 pages per month
Number of print cartridges	4
Total input capacity	300 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Media weight (tray 1)	64-220gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	64 - 250 g/m²
Power requirements	220-240VAC, 50/60Hz
Compatible operating systems	Windows 2000 / XP Home / XP Professional / XP Professionalx64 / Server 2003 / Server 2003 for x64 / Server 2008 / Server 2008 x64 / Vista (32-bit) / Vista (64-bit); Mac OS X 10.3.9 - 10.6.1
Bundled software	Color Correct, OKI LPR, PrintSuperVision.net, Swatch Utility, Template Manager, Web Driver Installer, Print Control Server2, Print Control Client, Storage Device Manager, Gamma Utility, Profile Assistant, Colour Access Policy Manager
Power consumption (printing)	600 W
Power consumption (PowerSave)	15 W
Storage temperature (T-T)	-10 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
Product color	Black, White
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	546 mm
Width	435 mm
Height	340 mm
