1.2 The Configuration of printer
The parts in the C610n are shown as below.
• Electrophotography process mechanism
• Paper feed path
• Control part (CU part/ PU part)
• Operator panel
• Power part (High-voltage part/low-voltage part)

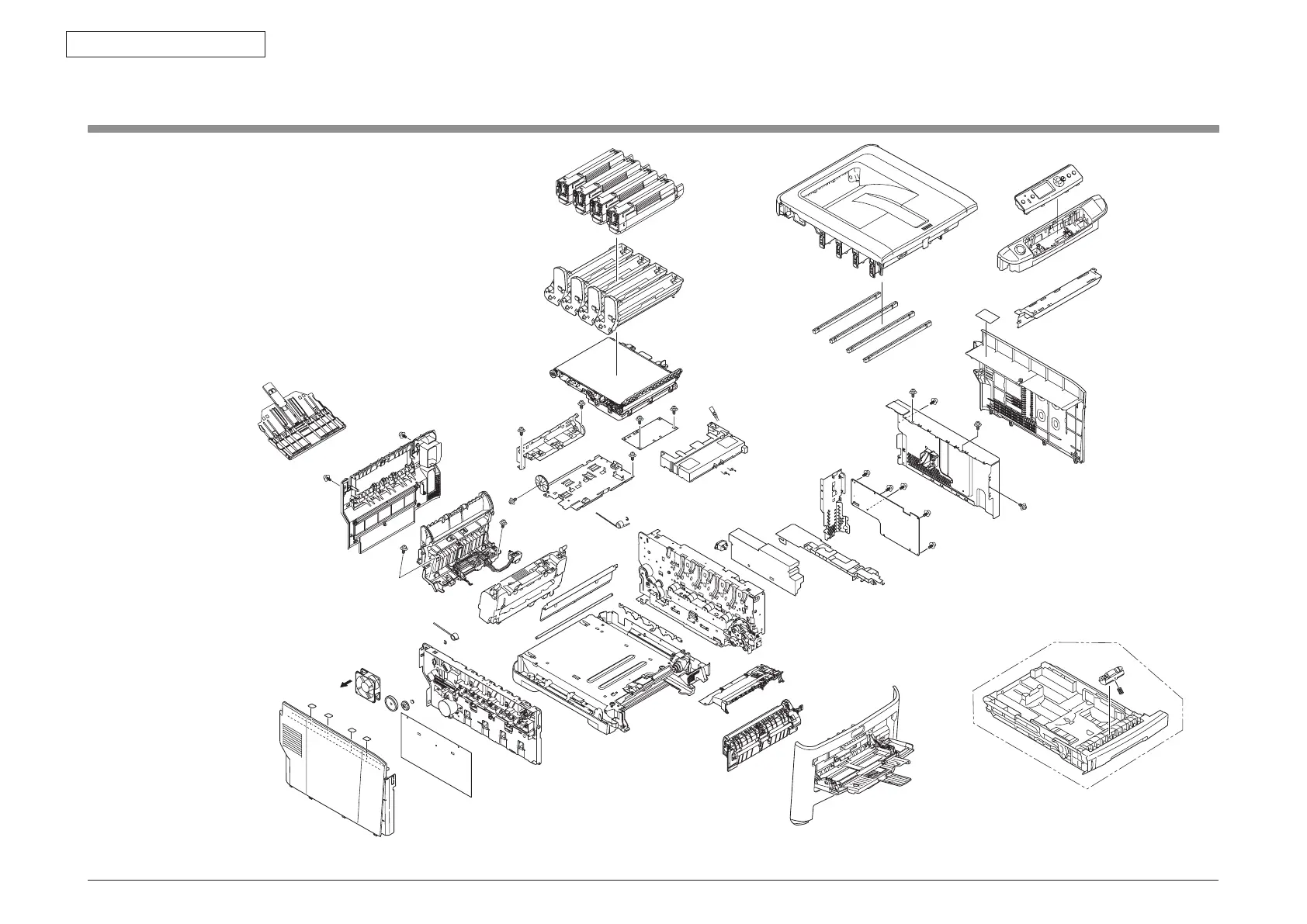

The Configuration of the printer is shown in Fig 1-2.
