5. Maintenance Menu
5.3.1.4 Motor clutch test
This self-diagnostic menu is used to test the motor and clutch.
1. Enter the self-diagnostic mode (level 1) and press the MENU+, MENU- key until
"SWITCH SCAN" is displayed in the upper row of the display area.
(Pressing the
MENU+ key increments the test item and pressing the MENU- key
decrements the test item.)
2. P
ress either the MENU+ or MENU- key until the desired menu item
corresponding to the unit to be tested in Table 5-4 is displayed in the lower row
of the display area. (Pressing the MENU+ key increments the test item and
pressing the MENU- key decrements the test item.)
MOTOR & CLUTCH TEST
ID MOTOR
3. Pressing
the ENTER key starts the test. The unit name starts flashing and the
corresponding unit is activated for 10 seconds. (Refer to Figure 5-2.)
Note! After the corresponding unit has activated for 10 seconds, it returns to the status of
step2, and is re-activated when the corresponding switch is pressed.
•
The clutch solenoid repeats turning on and off during the normal print
drive. (If a clutch solenoid cannot be activated independently, the
motor is driven at the same time.) * "ID UP/DOWN" keeps activated
until the CANCEL key is pressed.
•
If [ENTER] is pressed long (2 sec) when selecting a motor, the motor keeps
running.
4. When the CANCEL key is pressed, the corresponding unit stops activating.
(Display of the corresponding unit keeps displayed.)
5. Repeat steps 2 to 4 as required.
6. Pressing the BACK k
ey terminates the test. (Returns to the status of step 1.)
Tray 1 hopping
motor
(regist motor,
front motor)
Regist clutch
Tray 2 hopping clutch
ID motor
Fuser motor
Fuser cooling fan
Color registration (REGIST) shutter
Duplex
solenoid
Duplex
clutch
Duplex
motor
Tray 2 motor
Tray 2 regist
clutch
Hopping clutch
Belt motor
ID UP/DOWN motor
MPT clutch

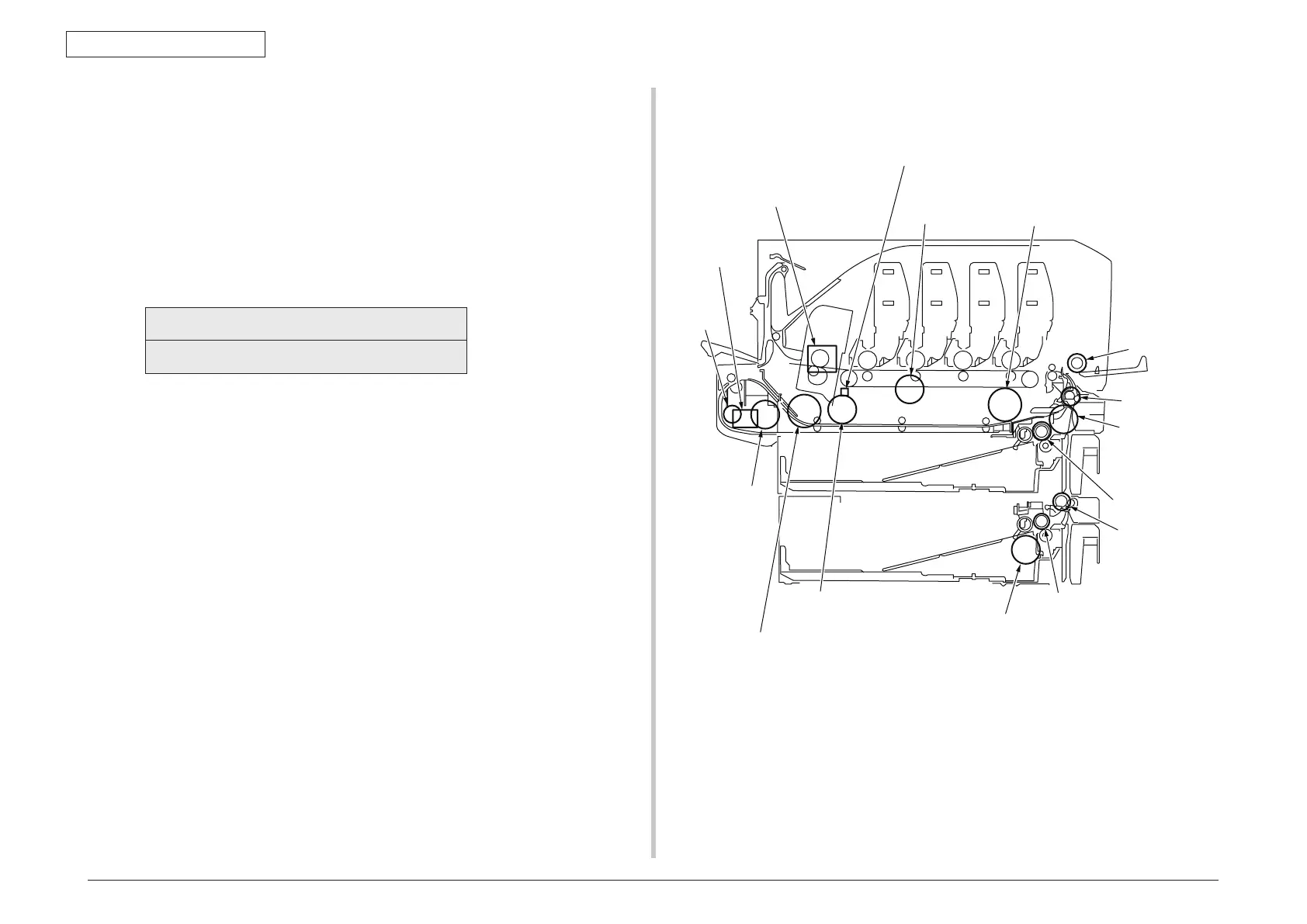

Figure 5-2

Oki C610N Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Print speed (color, normal quality, A4/US Letter)	34 ppm
Maximum internal memory	768 MB
Mobile printing technologies	-
Supported network protocols (IPv4)	10/100-TX
Maximum duty cycle	75000 pages per month
Number of print cartridges	4
Total input capacity	300 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Media weight (tray 1)	64-220gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	64 - 250 g/m²
Power requirements	220-240VAC, 50/60Hz
Compatible operating systems	Windows 2000 / XP Home / XP Professional / XP Professionalx64 / Server 2003 / Server 2003 for x64 / Server 2008 / Server 2008 x64 / Vista (32-bit) / Vista (64-bit); Mac OS X 10.3.9 - 10.6.1
Bundled software	Color Correct, OKI LPR, PrintSuperVision.net, Swatch Utility, Template Manager, Web Driver Installer, Print Control Server2, Print Control Client, Storage Device Manager, Gamma Utility, Profile Assistant, Colour Access Policy Manager
Power consumption (printing)	600 W
Power consumption (PowerSave)	15 W
Storage temperature (T-T)	-10 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
Product color	Black, White
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	546 mm
Width	435 mm
Height	340 mm
