4. Component replacement

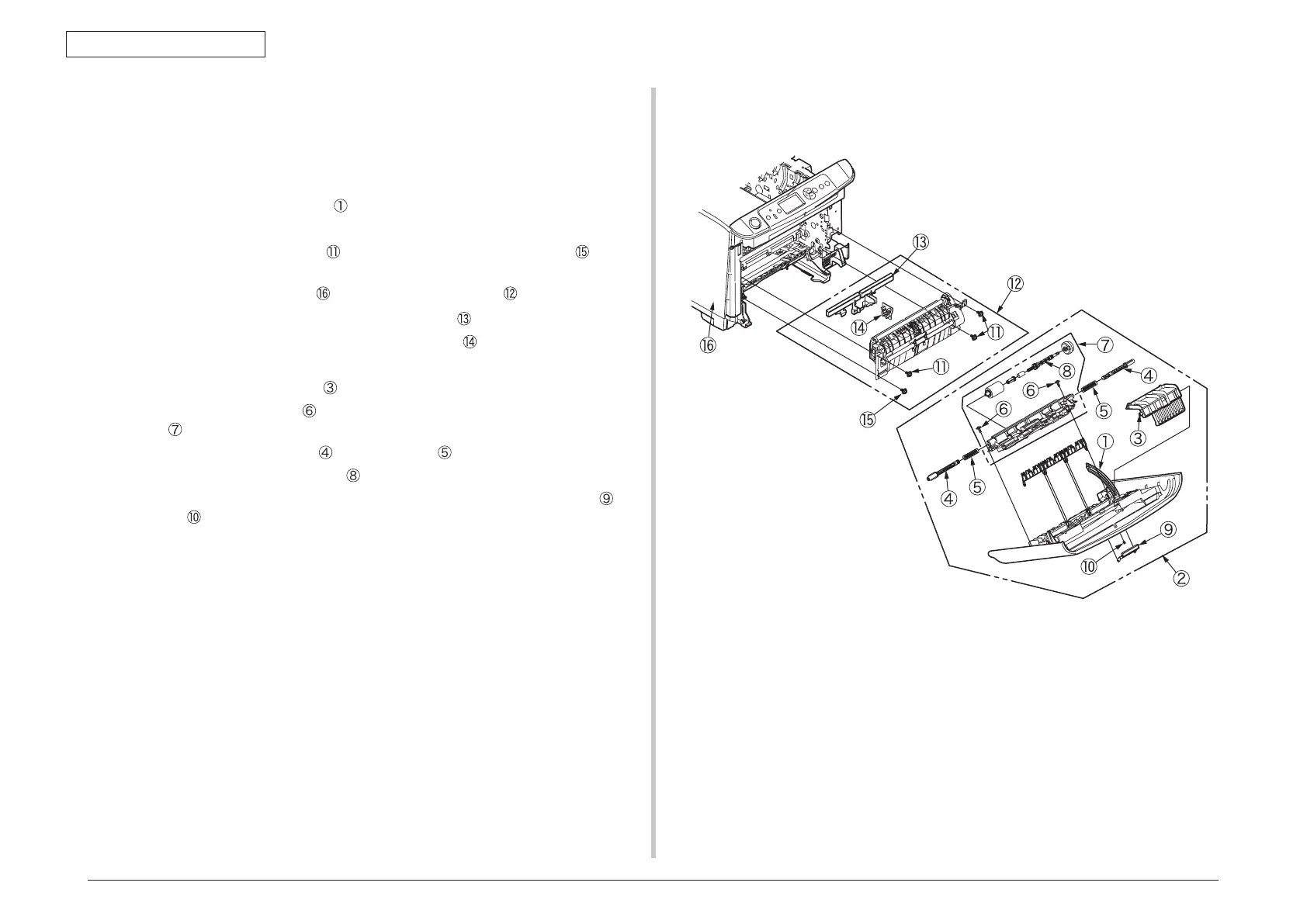

4.2.18 Cover Assy front/ Board-RSF/MPT hopping
roller/ Frame Assy separator/ Feeder Assy regist
(1) Open the top cover.
(2) Remove the plate shield and remove the connector. (See section 4.2.8)
(3) Disengage the claws of stay L
.
(4) Remove the motor cover. (See section 4.2.14)
(5) Remove the three screws
(silver, No:42920406) and screw (silver,
No:42920408).
(6) Remove the Left side cover
and remove the feeder unit .
(7) Disengage the claw, and remove the cover sensor
.
(8) Remove the connector and remove the Board-RSF
.
(9) Remove the MPT Assy. (See section 4.2.17)
(10) Rotate until the claw of lever
is disengaged, and remove it.
(11) Remove the two screws
(black, No:42932708), and remove the guide Assy
top
.
(12) Remove the two lock shafts
and two springs .
(13) Remove the hopping roller shaft
.
(14) Remove the supporters (2 places), and remove the frame Assy separator
and
spring
.
