4. Component replacement
(9) Remove the lever lock
, compression spring , torsion spring , button
switch
, cable Assy from the frame panel .

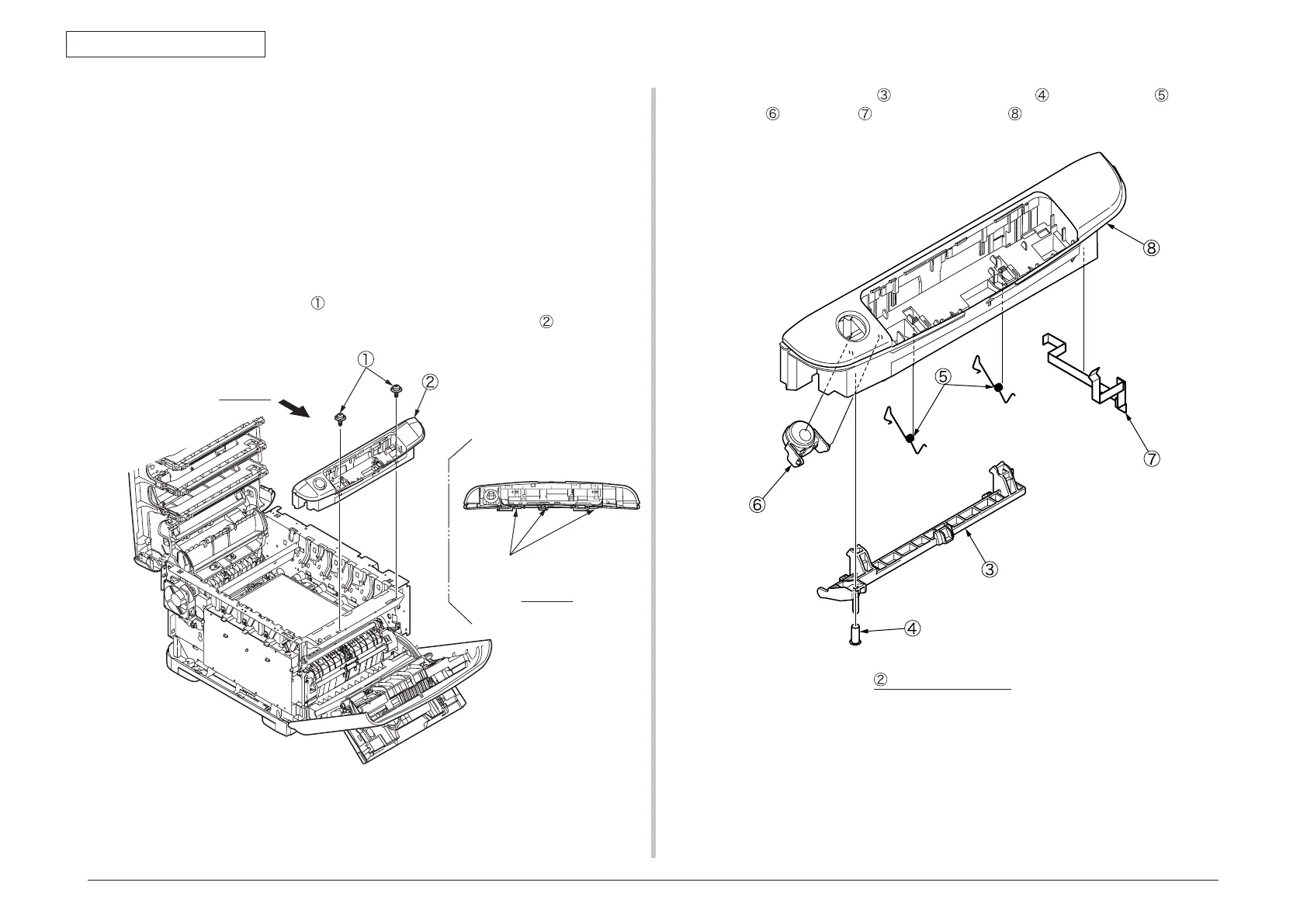

Frame panel Assy
4.2.13 Frame panel Assy
(1) Open the top cover.
(2) Open the feeder unit.
(3) Remove the left side cover. (See section 4.2.3)
(4) Remove the right side cover. (See section 4.2.4)
(5) Remove the plate shield. (See section 4.2.8 (4))
(6) Remove the connector of frame panel and remove the hanging cable.
(7) Remove the control panel Assy. (See section 4.2.11)
(8) Remove the two screws
(silver, No:42920406), disengage the claws (3
places) on frame panel Assy, and remove the frame panel Assy
.
Claw (3 places)
View A
View A

Oki C610N Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Print speed (color, normal quality, A4/US Letter)	34 ppm
Maximum internal memory	768 MB
Mobile printing technologies	-
Supported network protocols (IPv4)	10/100-TX
Maximum duty cycle	75000 pages per month
Number of print cartridges	4
Total input capacity	300 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Media weight (tray 1)	64-220gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	64 - 250 g/m²
Power requirements	220-240VAC, 50/60Hz
Compatible operating systems	Windows 2000 / XP Home / XP Professional / XP Professionalx64 / Server 2003 / Server 2003 for x64 / Server 2008 / Server 2008 x64 / Vista (32-bit) / Vista (64-bit); Mac OS X 10.3.9 - 10.6.1
Bundled software	Color Correct, OKI LPR, PrintSuperVision.net, Swatch Utility, Template Manager, Web Driver Installer, Print Control Server2, Print Control Client, Storage Device Manager, Gamma Utility, Profile Assistant, Colour Access Policy Manager
Power consumption (printing)	600 W
Power consumption (PowerSave)	15 W
Storage temperature (T-T)	-10 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
Product color	Black, White
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	546 mm
Width	435 mm
Height	340 mm
