2. Operating instructions
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
-
-
ID unit
Waste toner area
Toner cartridge
Drum cleaning blade

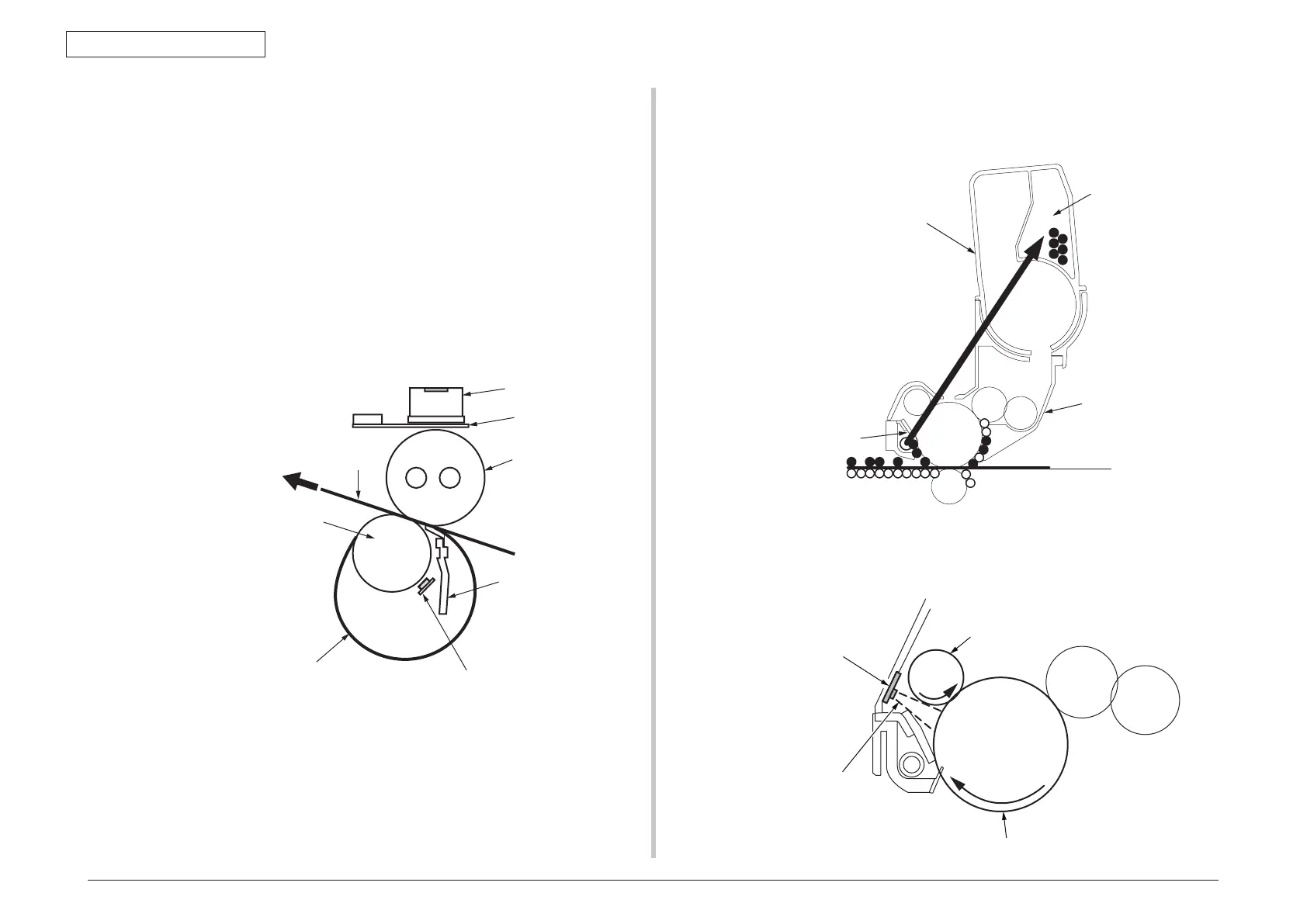

(6) Fusing
When the paper passes through the heat roller and backup roller unit, heat and
pressure are applied to the toner image on the paper and the toner is fused onto
the paper.
The halogen lamps
of 800W and 400W are built in heat roller. The backup roller
without built-in halogen lamp is heated by the heat transmission from the heat
roller. The fusing temperature is controlled by the temperature detected by the
thermistor that is not in contacting with the surface of the heat roller. On the
other hand, the temperature detected by the thermistor rubbing the surface
of backup roller is used for controlling the fusing temperature under specified
conditions. Furthermore, a thermostat is used to limit the temperature rise, if
the temperature rise of heat roller exceeds a set point, the thermostat would be
open and the voltage supply to the heater would be cut off. The backup roller
unit is pressed on the heat roller by the spring on both sides.
(7)
Drum cleaning
The
Unfused toner left on the OPC drum is cleaned up by the drum cleaning
blade, and all residual toner is collected in the waste toner area of the toner
cartridge.
Heat roller
Backup roller
Pad
Thermistor
Thermistor
Paper
Paper feeding path
Thermostat
Fuser belt
(8) Electricity removal
The electricity on the surface of the OPC drum is attenuated by irradiating the
light to the surface of the OPC drum after transfer.
Electricity-removing
light PCB
Charging roller
OPC drum
Electricity-removing
light

Oki C610N Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Print speed (color, normal quality, A4/US Letter)	34 ppm
Maximum internal memory	768 MB
Mobile printing technologies	-
Supported network protocols (IPv4)	10/100-TX
Maximum duty cycle	75000 pages per month
Number of print cartridges	4
Total input capacity	300 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Media weight (tray 1)	64-220gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	64 - 250 g/m²
Power requirements	220-240VAC, 50/60Hz
Compatible operating systems	Windows 2000 / XP Home / XP Professional / XP Professionalx64 / Server 2003 / Server 2003 for x64 / Server 2008 / Server 2008 x64 / Vista (32-bit) / Vista (64-bit); Mac OS X 10.3.9 - 10.6.1
Bundled software	Color Correct, OKI LPR, PrintSuperVision.net, Swatch Utility, Template Manager, Web Driver Installer, Print Control Server2, Print Control Client, Storage Device Manager, Gamma Utility, Profile Assistant, Colour Access Policy Manager
Power consumption (printing)	600 W
Power consumption (PowerSave)	15 W
Storage temperature (T-T)	-10 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
Product color	Black, White
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	546 mm
Width	435 mm
Height	340 mm
