Oki C610N User Manual

44205301TH Rev.1
22 /
Oki Data CONFIDENTIAL
2. Operating instructions
(1) Paper feeding from 1st tray

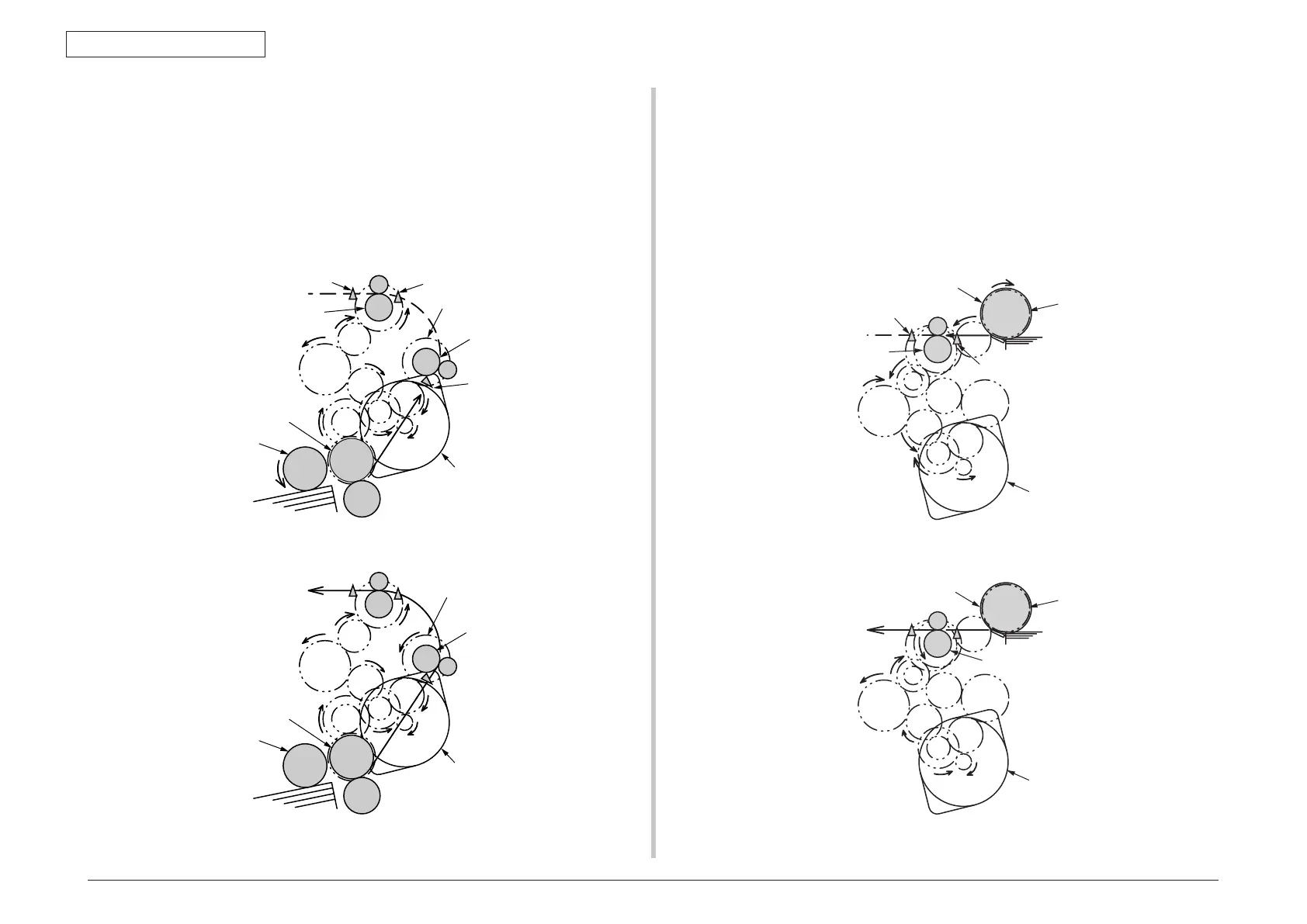

1. As figure 2-1 shows, a feed motor runs clockwise, a feed clutch engages and
paper is fed (a feed roller rotates when the feed clutch engages).
2. After turning
on an IN1 sensor, the paper is fed further a determined length
until it touches a registration sensor L (this corrects skews of the paper).
3. As figure 2-2
shows, a registration clutch engages and the registration roller
L feeds paper (the registration roller L rotates when the registration clutch
engages).
Registration Roller U
(rotating)
Feed Roller
(rotating)
Paper
Paper
Feed Motor
(running clockwise)
Registration Roller L
(not rotating)
Registration Clutch
(not engaging)
Feed Clutch
(engaging)
WR Sensor
IN2 Sensor
IN1 Sensor
Feed Roller
(not rotating)
Feed Clutch
(not engaging)
Feed Motor
(running clockwise)
Registration Roller L
(rotating)
Registration Clutch
(engaging)
Figure 2-1
Figure 2-2
Registration Roller U
(not rotating)
Registration Roller U
(rotating)
MPT Clutch
(engaging)
MPT Feed Roller
(rotating)
Feed Motor
(running counterclockwise)
WR Sensor
IN2 Sensor
Feed Motor
(running clockwise)
MPT Clutch
(not engaging)
MPT Feed Roller
(not rotating)
(2) Paper feeding from MPT
1. As figure 2-3 shows, a feed motor runs counterclockwise, an MPT clutch
engages and paper is fed (an MPT feed roller rotates when the MPT clutch
engages).
2. After turning
on an IN2 sensor, the paper is fed further a determined length
until it touches a registration roller U (this corrects skews of the paper).
3. As figure 2-4
shows, the feed motor runs clockwise and the registration roller
U feeds the paper (the registration roller U rotates when the feed motor runs
clockwise).
Figure 2-3
Figure 2-4

Oki C610N Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Print speed (color, normal quality, A4/US Letter)	34 ppm
Maximum internal memory	768 MB
Mobile printing technologies	-
Supported network protocols (IPv4)	10/100-TX
Maximum duty cycle	75000 pages per month
Number of print cartridges	4
Total input capacity	300 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Media weight (tray 1)	64-220gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	64 - 250 g/m²
Power requirements	220-240VAC, 50/60Hz
Compatible operating systems	Windows 2000 / XP Home / XP Professional / XP Professionalx64 / Server 2003 / Server 2003 for x64 / Server 2008 / Server 2008 x64 / Vista (32-bit) / Vista (64-bit); Mac OS X 10.3.9 - 10.6.1
Bundled software	Color Correct, OKI LPR, PrintSuperVision.net, Swatch Utility, Template Manager, Web Driver Installer, Print Control Server2, Print Control Client, Storage Device Manager, Gamma Utility, Profile Assistant, Colour Access Policy Manager
Power consumption (printing)	600 W
Power consumption (PowerSave)	15 W
Storage temperature (T-T)	-10 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
Product color	Black, White
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	546 mm
Width	435 mm
Height	340 mm
