2. Operating instructions
(4) Updown operation of ID unit
1. The up and down operation of the ID unit is done by driving the liftup motor.

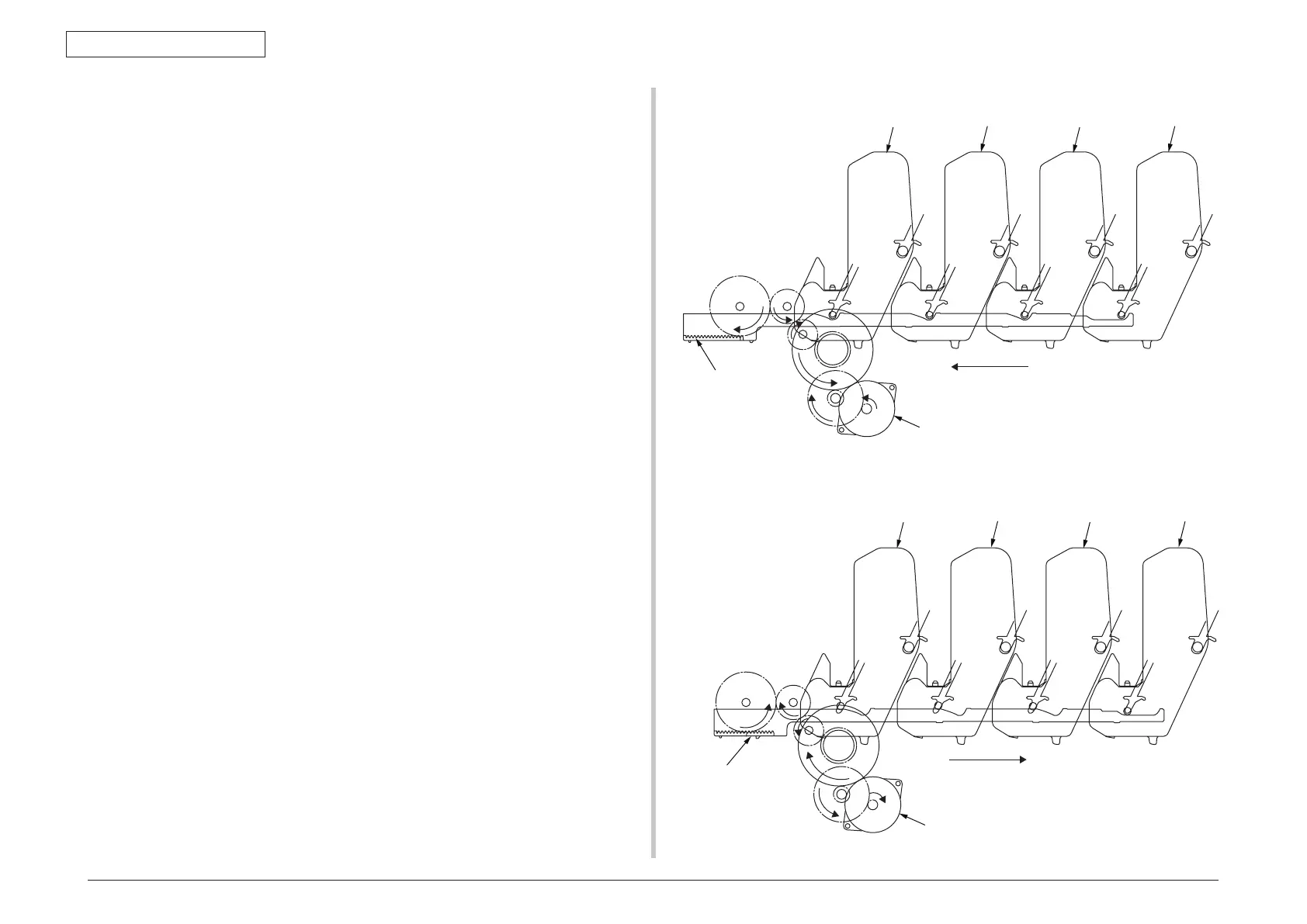

2. Fig. 2-6 shows the operation of each ID unit when color printing. When the
liftup motor is rotated (counter clockwise), the liftup link slides to left, and
each ID unit is in DOWN condition as shown in Fig. 2-6. Under this condition,
the color printing is available.
3. Fig.
2-7 shows the operation of each ID unit when mono printing. When the
liftup motor is rotated (clockwise), the liftup link slides to right, and each ID
unit (except K-ID unit) is in UP condition as shown in Fig. 2-7. Under this
condition, the mono printing is available.
Liftup link
Liftup link
C-ID unit M-ID unit Y-ID unit K-ID unit
C-ID unit M-ID unit Y-ID unit K-ID unit
Liftup motor (CCW)
The operation of each ID unit when color printing
C-ID unit DOWN
M-ID unit DOWN
Y-ID unit DOWN
K-ID unit DOWN
Liftup motor (CW)
The operation of each ID unit when mono printing
C-ID unit Liftup
M-ID unit Liftup
Y-ID unit Liftup
K-ID unit DOWN
Figure 2-6
Figure 2-7

Oki C610N Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	8 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Print speed (color, normal quality, A4/US Letter)	34 ppm
Maximum internal memory	768 MB
Mobile printing technologies	-
Supported network protocols (IPv4)	10/100-TX
Maximum duty cycle	75000 pages per month
Number of print cartridges	4
Total input capacity	300 sheets
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Media weight (tray 1)	64-220gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	64 - 250 g/m²
Power requirements	220-240VAC, 50/60Hz
Compatible operating systems	Windows 2000 / XP Home / XP Professional / XP Professionalx64 / Server 2003 / Server 2003 for x64 / Server 2008 / Server 2008 x64 / Vista (32-bit) / Vista (64-bit); Mac OS X 10.3.9 - 10.6.1
Bundled software	Color Correct, OKI LPR, PrintSuperVision.net, Swatch Utility, Template Manager, Web Driver Installer, Print Control Server2, Print Control Client, Storage Device Manager, Gamma Utility, Profile Assistant, Colour Access Policy Manager
Power consumption (printing)	600 W
Power consumption (PowerSave)	15 W
Storage temperature (T-T)	-10 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Standard interfaces	Ethernet, USB 2.0
Product color	Black, White
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	546 mm
Width	435 mm
Height	340 mm
