1. CONFIGURATION
1.2 Printer configuration
The internal part of the C830 printer is composed of the following sections:
• Electrophotographic processing section
• Paper paths
• Controllers (CU/PU)
• Operator panel
• Power supplies (high-voltage power supply/low-voltage power supply)

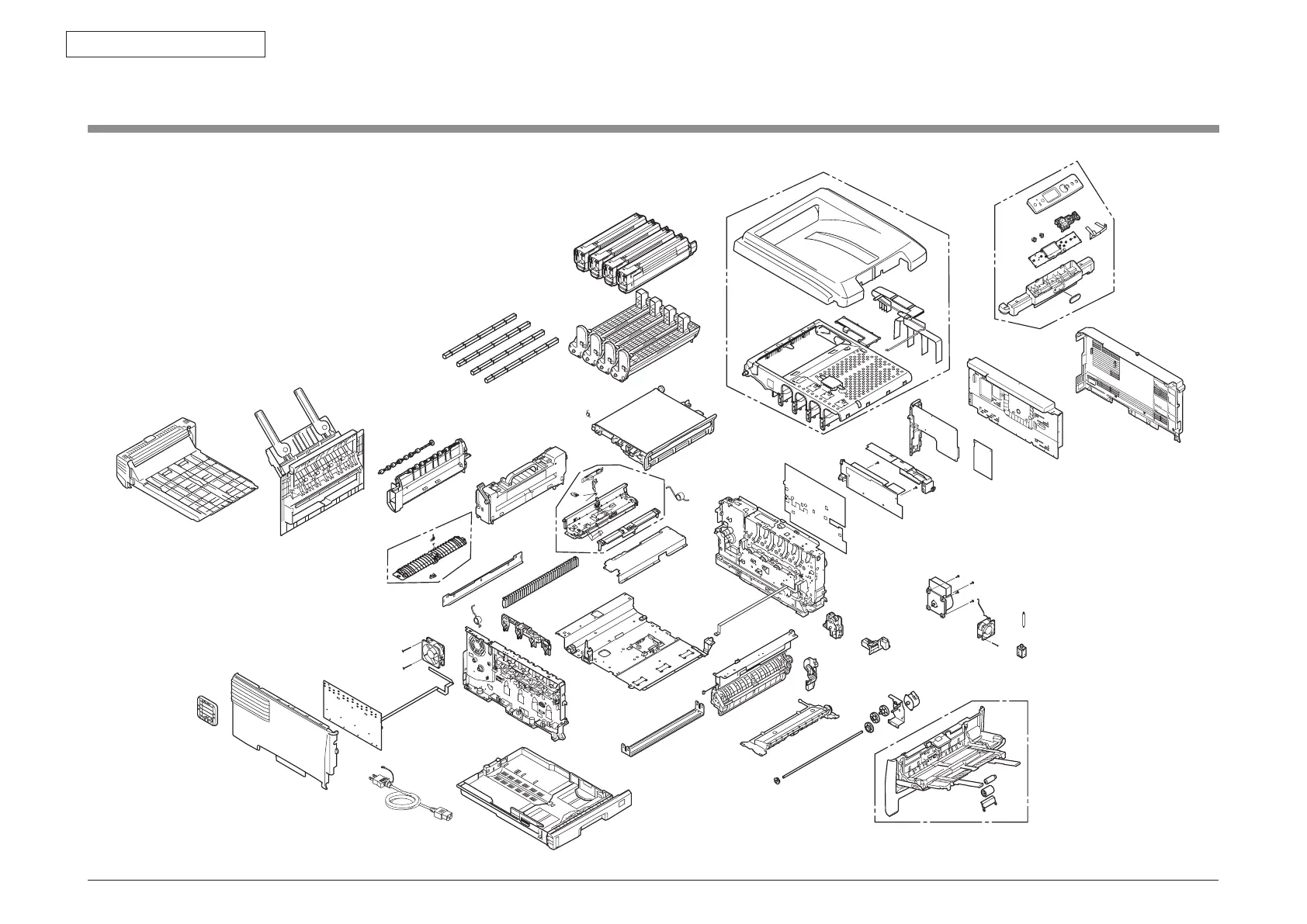

Figure 1-2 represents the configuration of the printer.
Figure 1-2
