44015503TH Rev. 1
103 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
4.3 Portions Lubricated
Class
Amount Applied (cc)
Width (mm)
Sample
S A B C D E F
0.0005 0.003 0.005 0.01 0.03 0.05 0.1
1.24 2.25 2.67 3.37 4.86 5.76 7.26
W
Portions lubricated are shown in this section. The other portions must not be lubricated.
Lubrication is not required during assembly or disassembly, except that the lubricant specified
must be applied to portions from which lubricant was wiped.
Lubrication
(1) Lubricant names and their abbreviations
EM-30L: Molykote EM-30L
HP-300: Molykote HP-300
PM: Pan motor oil 10W-40 or ZOA 10W-30

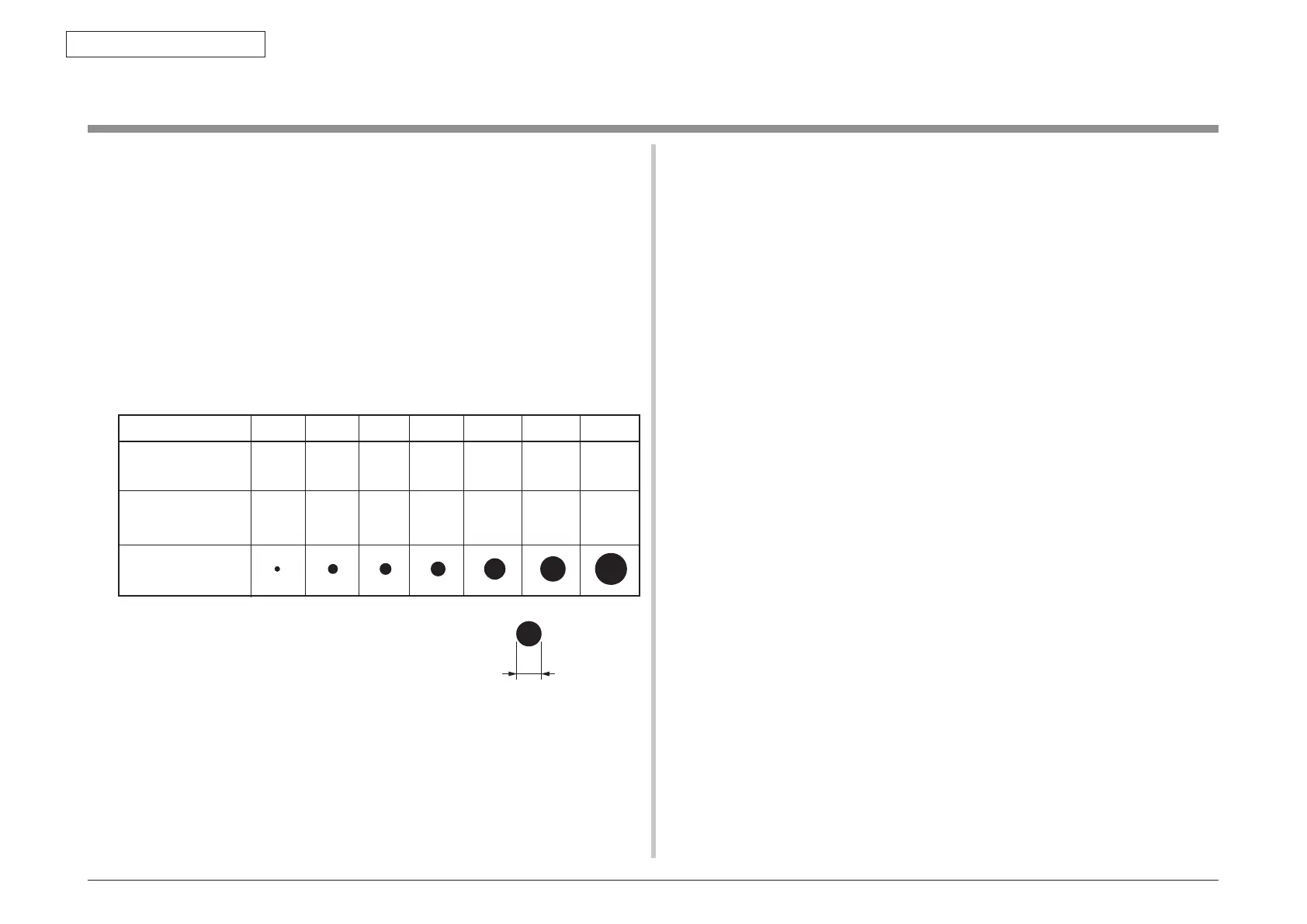

(2) Grease boundary samples
To Next Page
