4. REPLACEMENT OF PARTS
4.2.24 Paper feed roller (multi-purpose tray)

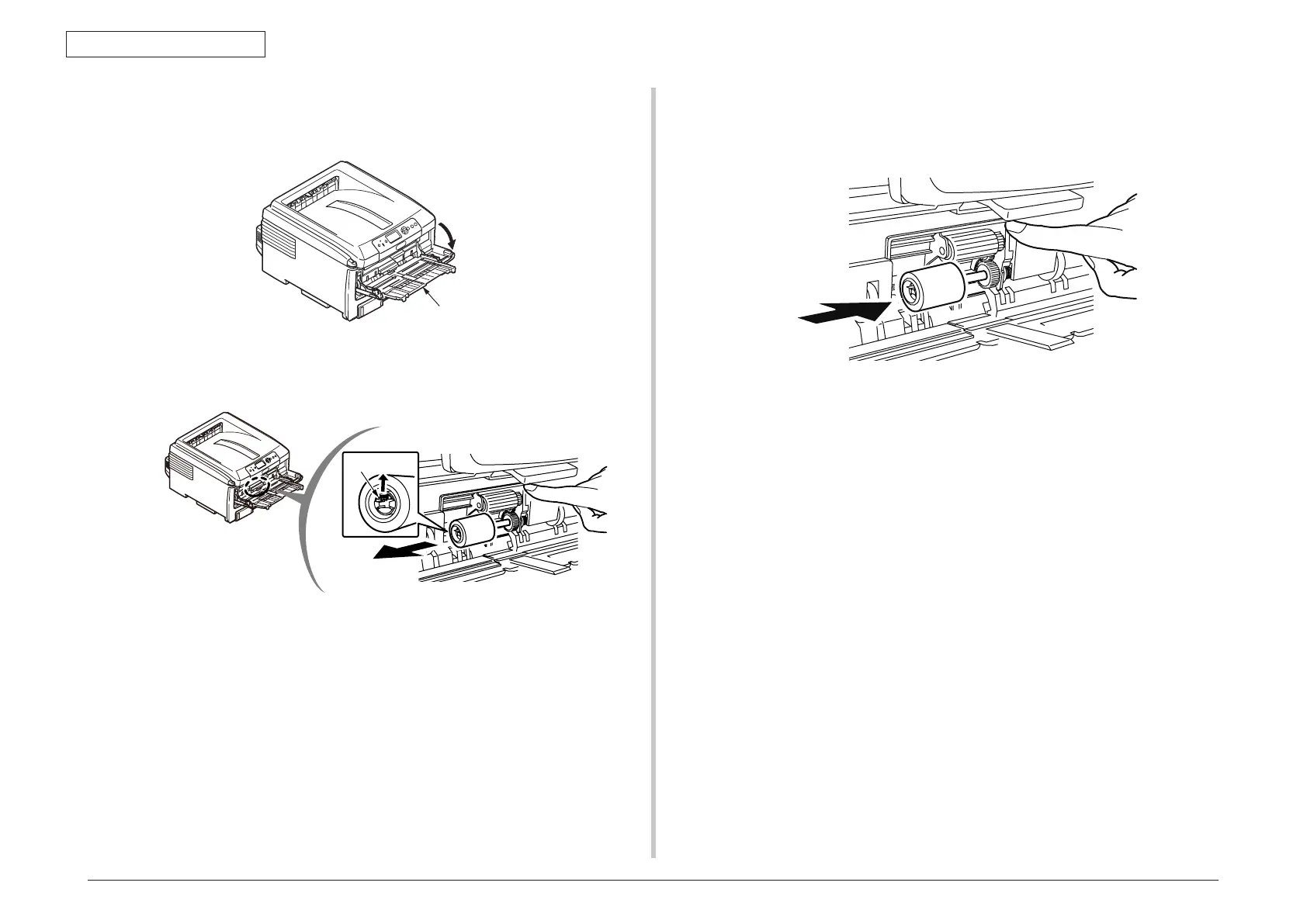

(1) Turn off the printer and open the multi-purpose tray.
(2) Lift the paper pick-up section and, pressing the protrusion of the paper feed roller of
the multi-purpose tray outward, remove the from its shaft.
No
tes on attaching paper feed roller:
1. To attach a new paper feed roller, insert it onto the shaft and turn it all the way.
After attaching the roller, make sure it is not removed out of the shaft.
