4. REPLACEMENT OF PARTS

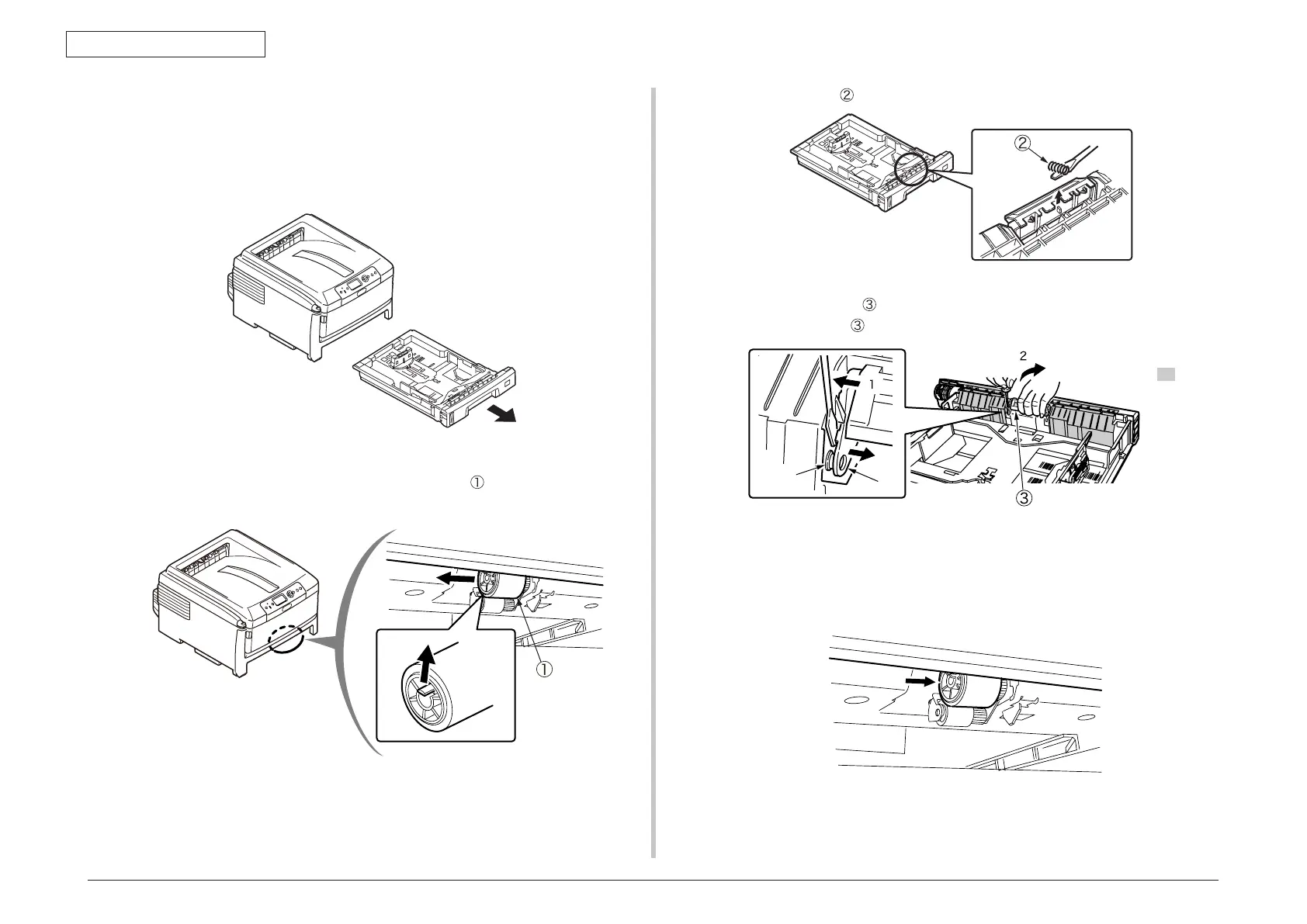

4.2.22 Paper feed roller (tray 1)
Note! When replacing the paper feed roller of the tray 1, be sure to replace the
separator of the tray 1.
(
1) Turn off the printer and remove the paper cassette of the tray 1.
(3) Remove the spring
from the paper cassette.
(2) Pressing the protrusion of the paper feed roller (large)
outward, detach the roller
from its shaft.
(4) Warping the separator
until its one leg is removed out of the support of the leg,
detach the separator .
Support
Leg
Be careful not to damage
the shaded area ( ).
Notes on attaching paper feed roller:
1. To attach a new paper feed roller, insert it onto the shaft and turn it all the way.
After attaching the roller, make sure it is not removed out of the shaft.
