4. REPLACEMENT OF PARTS
4.2.12 Board PRP

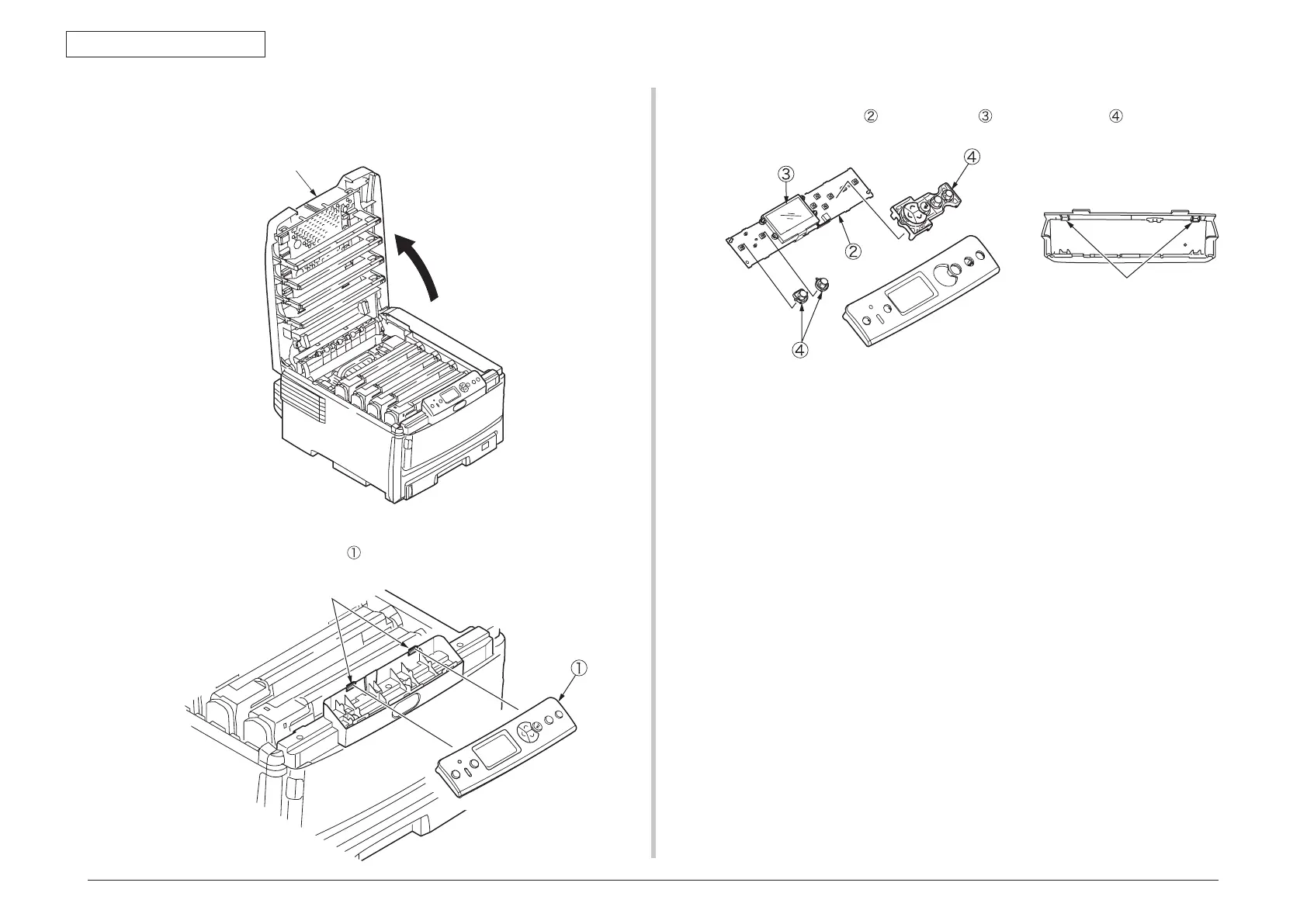

(1) Open the top cover.
(2) Unlatch the operator cover Assy.
at the two points A, remove the FFC and the
Assy.
(3) As shown in diagram (2), unlatch the operator panel cover Assy. at the two points B,
remove the board PRP
, the LCD button and the button key .
Top cover
Unlatched points A
Unlatched points B
Diagram (2)
