Oki C810 - MPT Assy., MPT Hopping Roller, Separator and Pick-Up Roller

44015503TH Rev. 1
87 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
Unlatched point

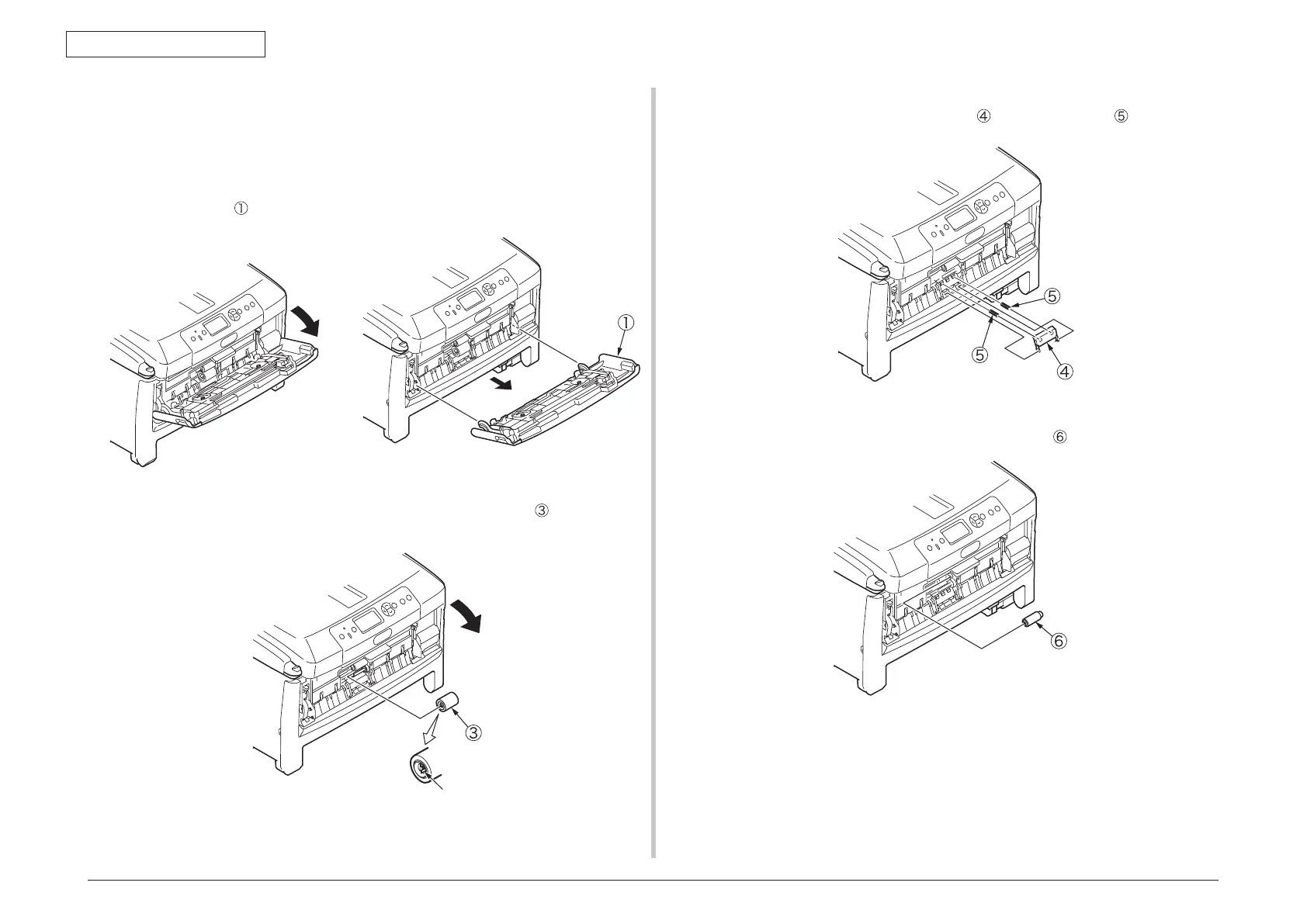

4.2.16 MPT Assy., MPT hopping roller, separator and
pick-up roller
(1) Remove the paper cassette.
(2) Open the multi-purpose tray, warp and remove the stay on each side and detach
the MPT Assy.
.
(3) Lift the pick-up Assy. and, bowing the lug of the paper feed roller
, slide the roller
to the left to detach the roller.
(4) Turn the separator Assy. frontward around its two support points to disengage the
Assy. at the points to detach the separator
and the two springs .
(5) Warping the side of the frame, detach the pick-up roller .
