4. REPLACEMENT OF PARTS

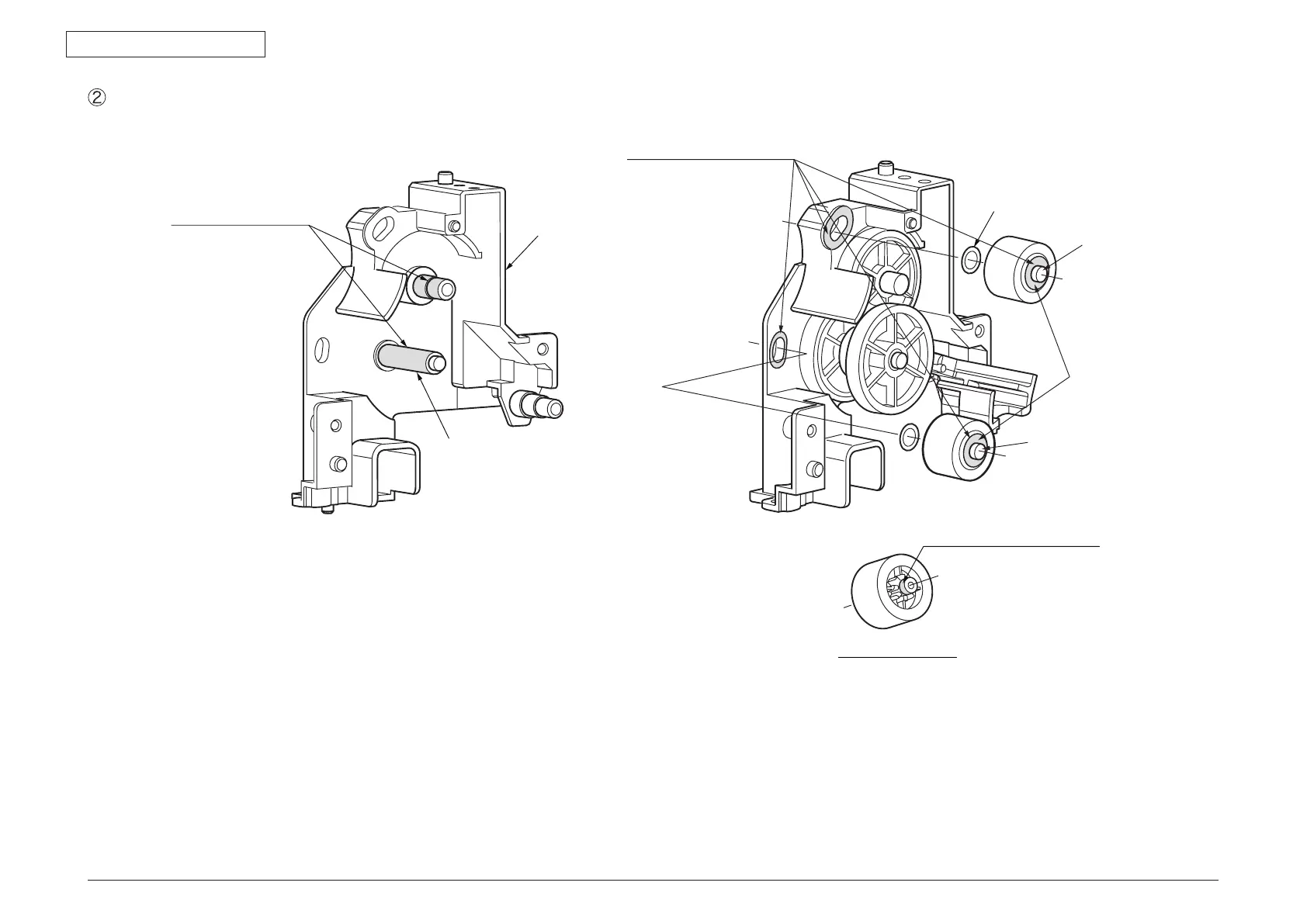

Gear-holder-Assy.

Class-C Molykote (EM-30L)

to hatched areas

Post-gear-holder

Spacer-coupled

Spacer-gear

Gear-planet-Z24

Back of gear-planet-Z24

Class-B Molykote (EM-30L) to post

Holder-gear-A

Class-B EM-30L to hatched areas
