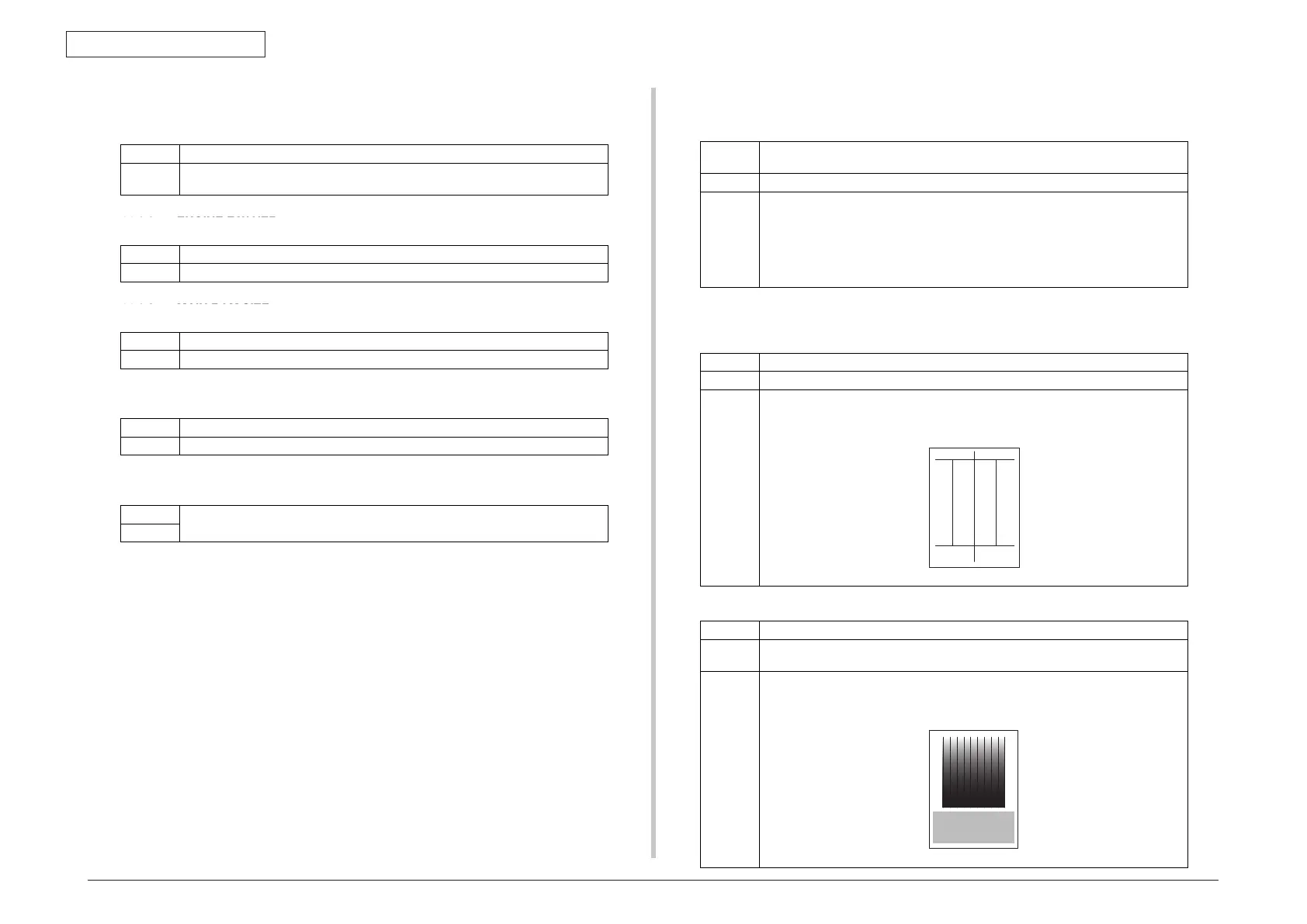

Page #132 background imageLoading...
Page #132 background image
44292401TH Rev.1
131 /
Oki Data CONFIDENTIAL
ADJUSTMENT/SETTING
14.6 DISPLAY
14.6.1 MAIN F/W VER.
14.6.2 ENGINE F/W VER.
14.6.3 MAIN RAM SIZE
14.6.4 SERIAL NO.
14.6.5 BB CPLD VERSION
Function Displays the version of the controller firmware.
Use
When upgrading the firmware
When the image processing board has been replaced with a new one
Function Displays the version of the engine firmware.
Use When the printer control board has been replaced with a new one
Function Displays the size of the main memory.
Use When checking for the memory size
Function Displays the serial number of the printer engine.
Use When checking for the printer serial number
Function
Displays the version of the BB CPLD firmware.
Use
14.7 FUNCTION
14.7.1 PAPER FEED TEST
14.7.2 PRN TEST PATTERN
A. PATTERN1
B. PATTERN2
Function
To check the paper feeding in the paper take-up/transport sections without printing on
the paper.
Use When a paper misfeed occurs
Setting/
procedure
1. Select the [TRAY1] or [TRAY2].
2. Press the Select key to begin testing paper feeding.
3. Press the Stop/Reset key to stop testing paper feeding.
NOTE
It cannot be operated at the time of warming up.
Don't count.
Function To print the test pattern for adjusting the image.
Use If there is tilt or when registration or zoom ratio adjustments are performed
Setting/
procedure
1. Select the [TRAY1] or [TRAY2].
2. Select the [PATTERN1].
3. Press the Select key to print the test pattern.
4139F3C550DA
Function To print the test pattern for halftones and gradations.
Use
When checking density and pitch irregularities
When checking reproducibility of gradations
Setting/
procedure
1. Select the [TRAY1] or [TRAY2].
2. Select the [PATTERN2].
3. Press the Select key to print the test pattern.
4139F3C551DA
