Oki MC160MFP Maintenance Manual

44292401TH Rev.1
87 /
Oki Data CONFIDENTIAL
MAINTENANCE

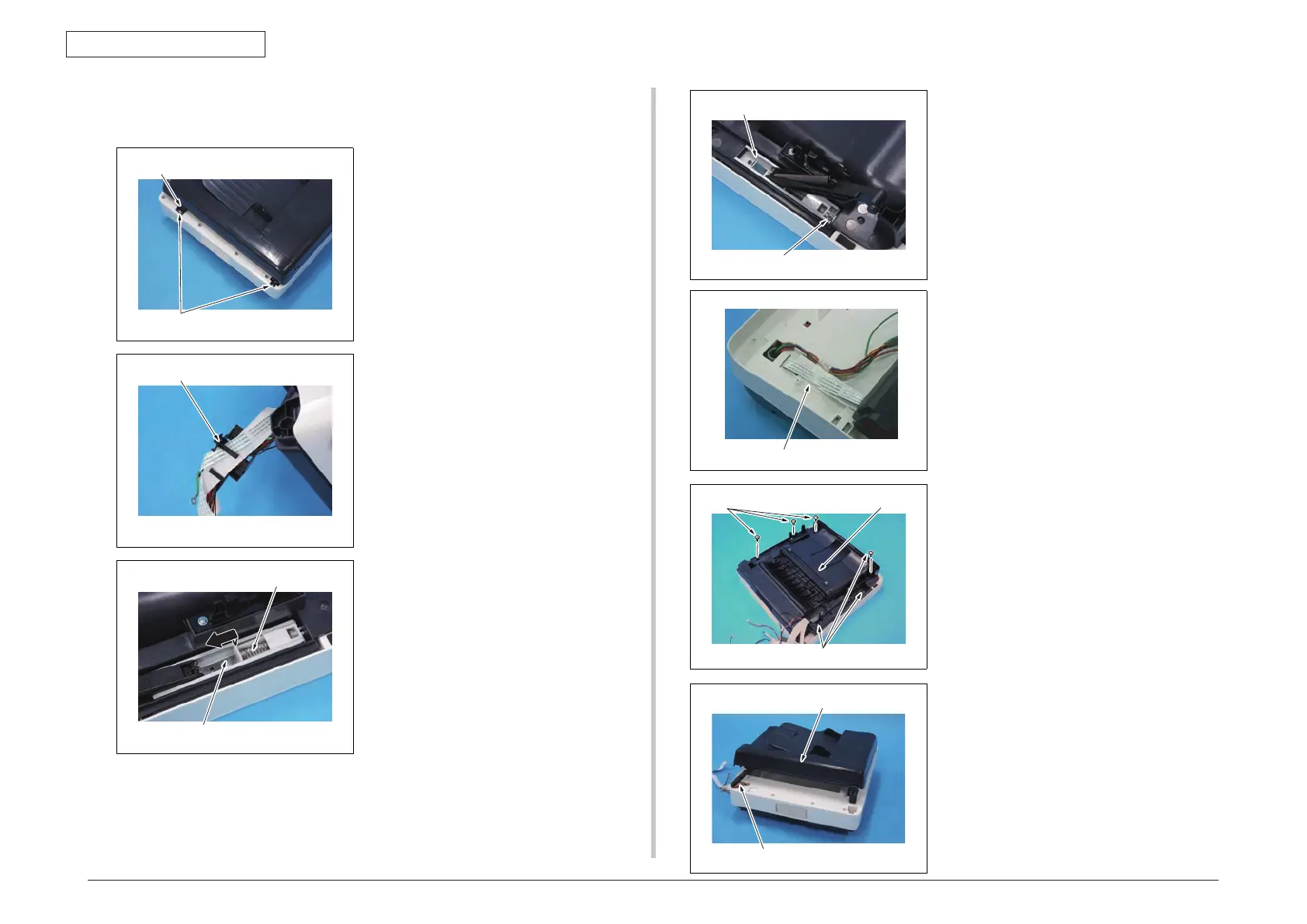

6.3.19 Auto document feeder unit (ADF)
7.3.19 Auto document feeder unit (ADF)
1. Remove the IR unit.
See P.85
2. Remove two screws [1], and remove
the stopper [2].
3. Remove the harness from the har-
ness guide [1].
4. While pressing down the plate [1],
move the spring assy [2] in the direc-
tion of the arrow.
A034F2C098DA
[1]
[2]
A034F2C099DA
[1]
A034F2C105DA
[1]
[2]
5. Remove the screw [1], and remove
the arm unit [2].
6. Repeat the steps 4 and 5 to remove
the arm unit located on the opposite
side.
7. Remove the tape [1].
8. Remove six screws [1], and remove
the IR unit lower cover assy [2].
9. Pull out all harnesses [1] and remove
the auto document feeder unit [2].
A034F2C106DA
[1]
[2]
A0HFF2C522DA
[1]
A034F2C107DA
[1]
[1]
[2]
A034F2C100DA
[1]
[2]
5. Remove the screw [1], and remove
the arm unit [2].
6. Repeat the steps 4 and 5 to remove
the arm unit located on the opposite
side.
7. Remove the tape [1].
8. Remove six screws [1], and remove
the IR unit lower cover assy [2].
9. Pull out all harnesses [1] and remove
the auto document feeder unit [2].
A034F2C106DA
[1]
[2]
A0HFF2C522DA
[1]
A034F2C107DA
[1]
[1]
[2]
A034F2C100DA
[1]
[2]
5. Remove the screw [1], and remove
the arm unit [2].
6. Repeat the steps 4 and 5 to remove
the arm unit located on the opposite
side.
7. Remove the tape [1].
8. Remove six screws [1], and remove
the IR unit lower cover assy [2].
9. Pull out all harnesses [1] and remove
the auto document feeder unit [2].
A034F2C106DA
[1]
[2]
A0HFF2C522DA
[1]
A034F2C107DA
[1]
[1]
[2]
A034F2C100DA
[1]
[2]
5. Remove the screw [1], and remove
the arm unit [2].
6. Repeat the steps 4 and 5 to remove
the arm unit located on the opposite
side.
7. Remove the tape [1].
8. Remove six screws [1], and remove
the IR unit lower cover assy [2].
9. Pull out all harnesses [1] and remove
the auto document feeder unit [2].
A034F2C106DA
[1]
[2]
A0HFF2C522DA
[1]
A034F2C107DA
[1]
[1]
[2]
A034F2C100DA
[1]
[2]
