Oki MC160MFP Maintenance Manual

44292401TH Rev.1
88 /
Oki Data CONFIDENTIAL
MAINTENANCE

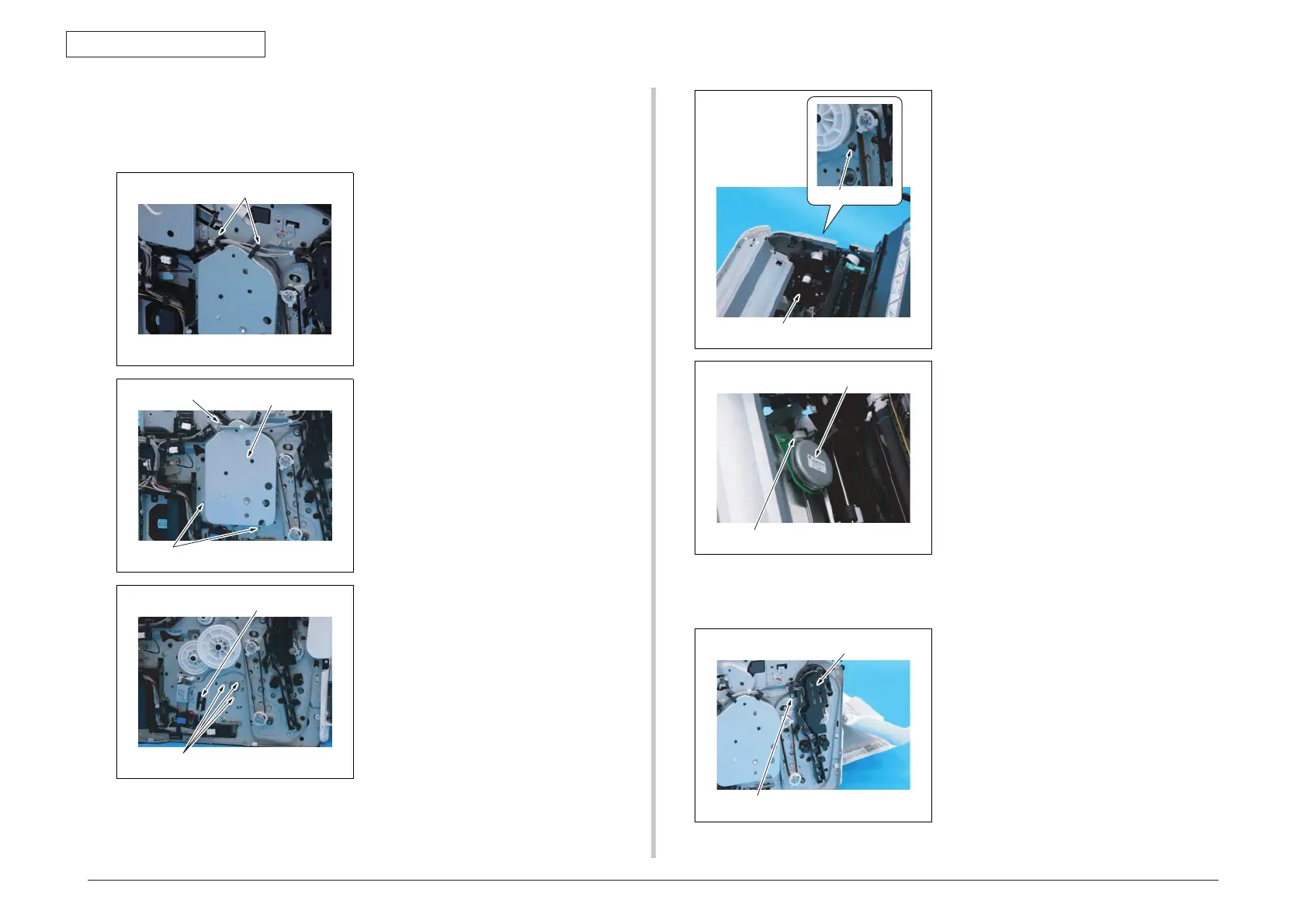

7.3.20 Transport motor (M1)
1. Remove the left cover.
See P.76
2. Remove all toner cartridges.
See P.70
3. Remove the harness from two wire
saddles [1].
4. Remove three screws [1], and
remove the plate [2].
5. Remove three screws [1].
6. Remove the harness [2] from the
harness guide.
A034F2C101DA
[1]
A034F2C036DA
[1]
[1]
[2]
A034F2C037DA
[1]
[2]
7. Unlock the tab [1], and remove the
motor cover [2].
8. Disconnect the connector [1], and
remove the transport motor [2].
7.3.21 Developing motor (M3)
1. Remove the left cover.
See P.76
2. Remove the screw [1], and remove
the harness guide [2] by taking out
the harness.
A034F2C038DA
[2]
[1]
A034F2C039DA
[1]
[2]
A034F2C046DA
[1]
[2]
6.3.20 Transport motor (M1)
6.3.21 Developing motor (M3)
