185 Maintenance
Cleaning the Media Feed Rollers for Tray 2
Be sure to remove the duplex option before cleaning the media feed rollers for
Tray 2.
1 If the duplex option is installed, remove it.
" If the duplex option is not installed and the locking pins are installed at
the back of Tray 2, remove the locking pins (one in each opening on
the left and right sides at the back of Tray 2).
To remove a locking pin, turn it to either the left or the right so that its
grip is vertical, and then pull out the locking pin to remove it.
2 Remove the dust cover from Tray 1 and close the tray.

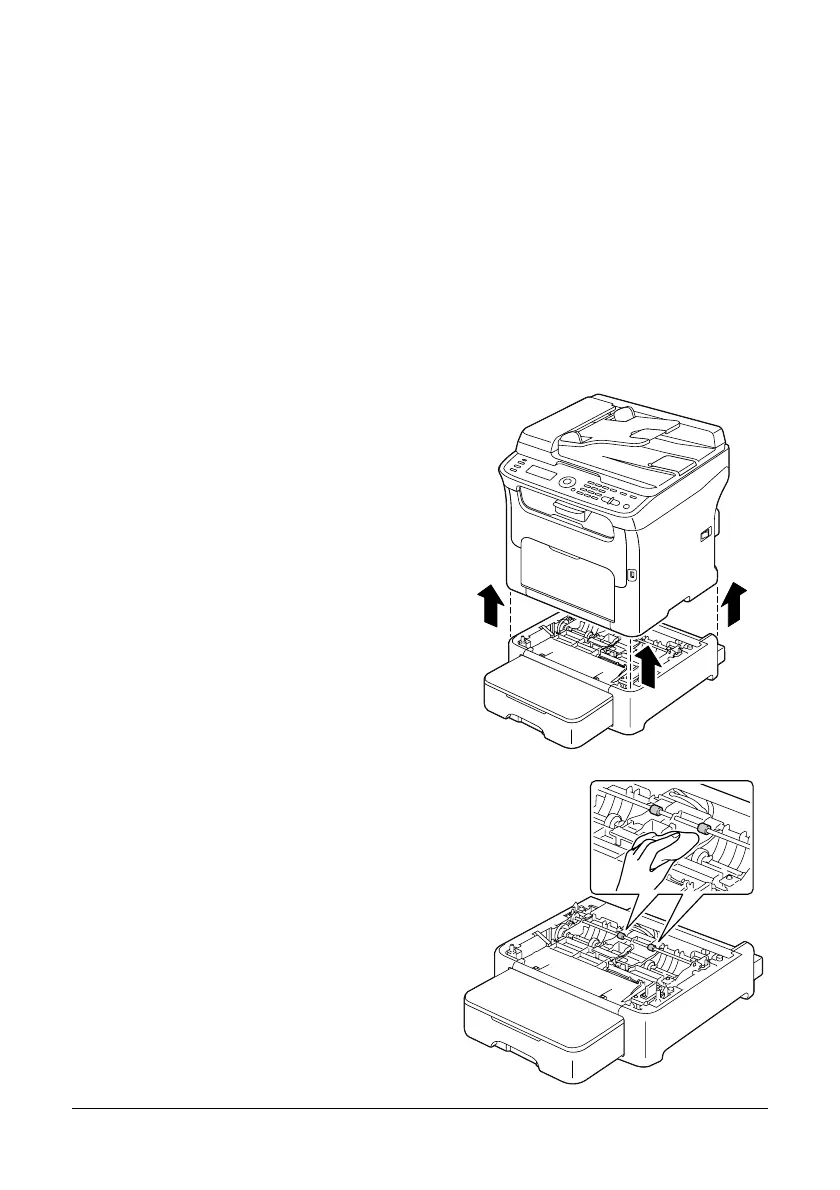

3 Lift the machine off of Tray 2 and
temporarily place it on a sturdy flat
surface.
4 Clean the media feed rollers by wip-
ing them with a soft, dry cloth.
To Next Page
