86
Media Handling
Other Media
When loading
media other than p
lain pape
r
, set the media
mode (Label, Letter-
head, Thick S
t
ock 1, or Thick S
tock 2) in the driver for optimum print quality
.
Loading Label Sheets/Letterheads a
nd Thick Stock
1

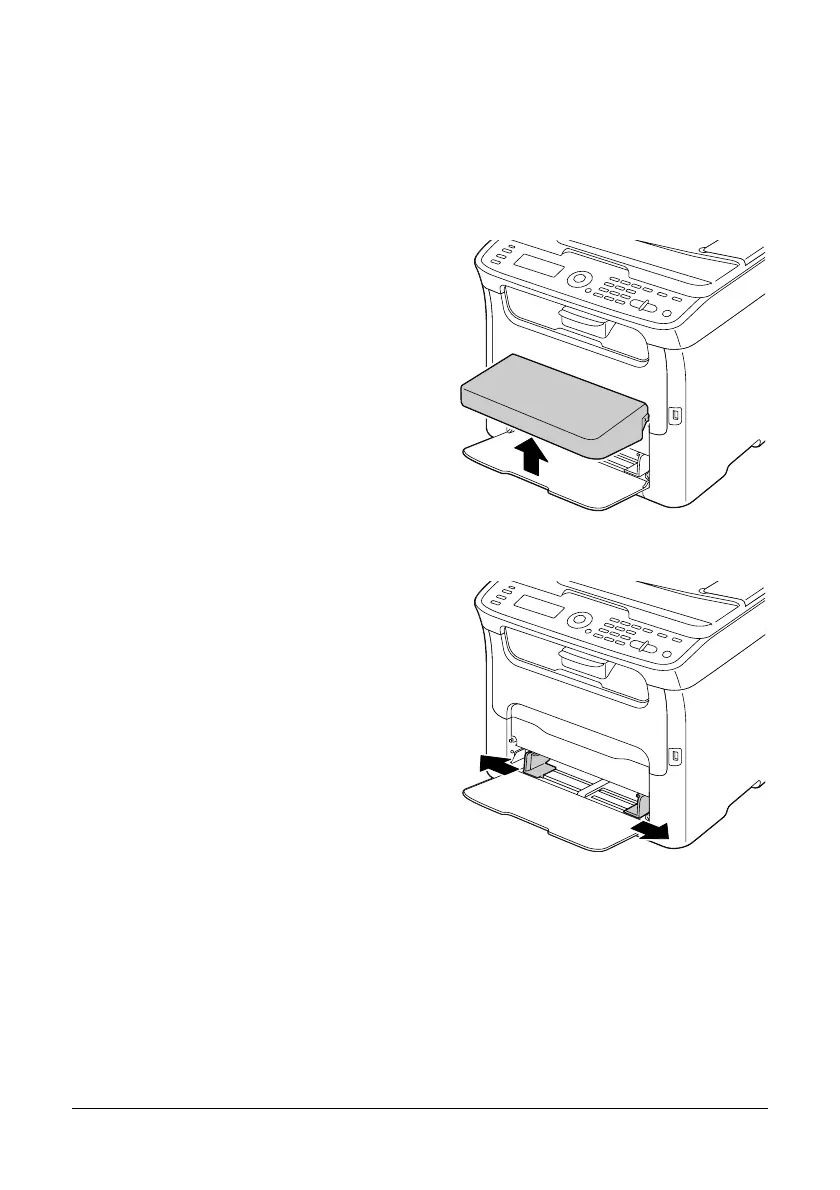

Remove the dust cover
.
2
Remove any media in the tray
.
3
Slide the media guides to provide
more space between them.
