256

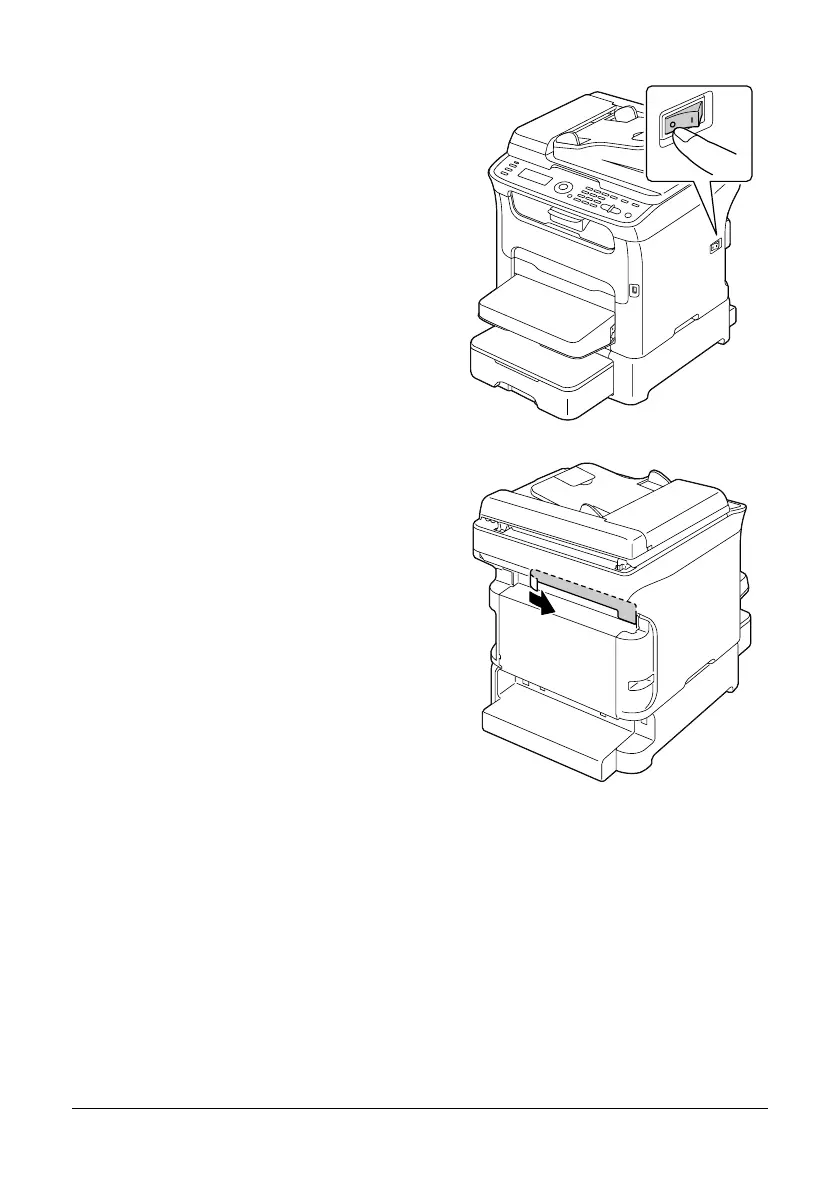

Installing Accessories
1
Turn off the machine and discon-
nect the power cord and interface
cables.
2
Remove the tape affixed to the rear
cover
.
3
If the locking pins are installed on the left and right side at the back of T
ray 2,
remove them.
255
257
