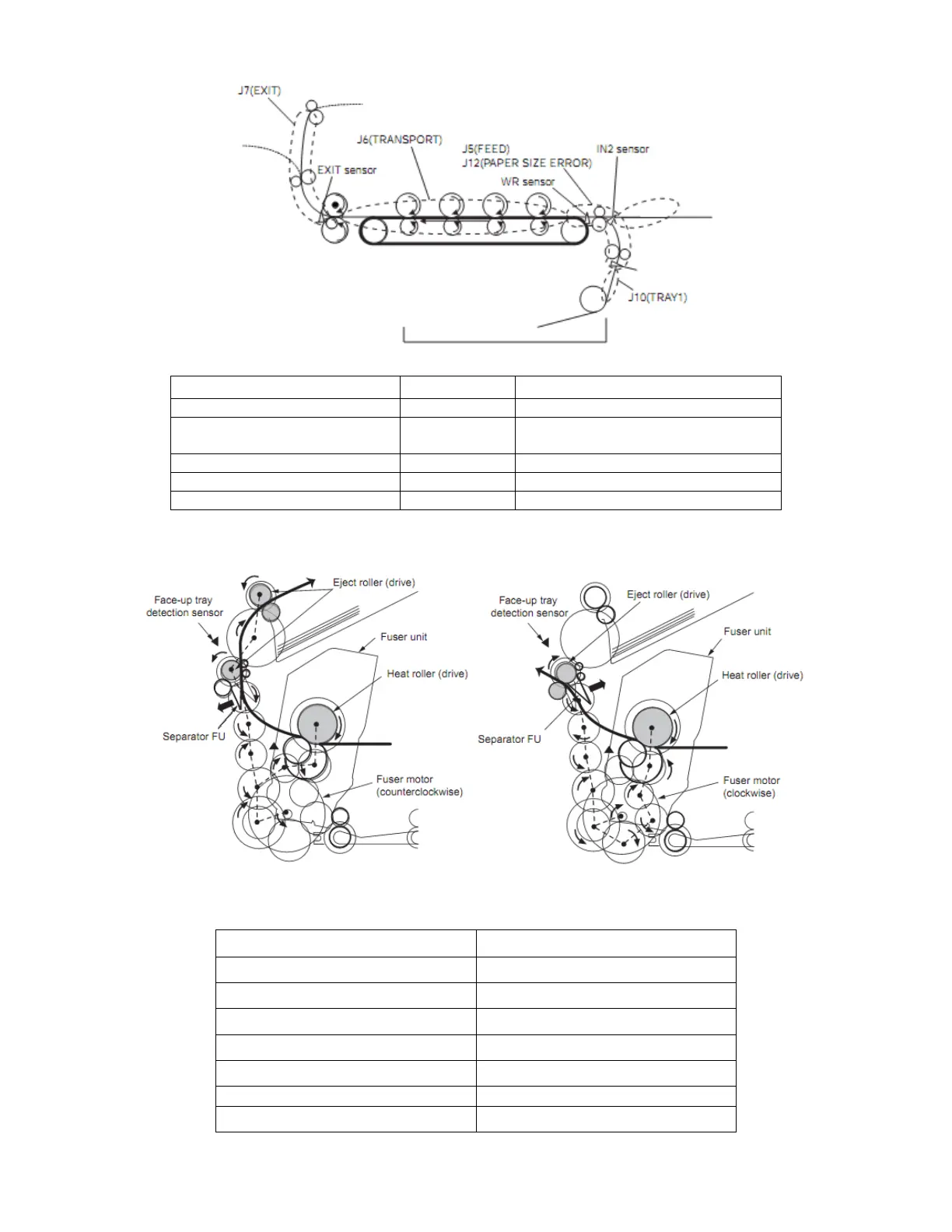

Transport Path Sensors
Location Reference Sensor
Feed (front cover jam) J5 IN2, WR
Transport (paper feed jam) J6 IN1, IN2, WR,
EXIT
Exit (paper reject jam) J7 EXIT
Tray1 (paper feed jam) J10 N1
Paper size error (paper size error) J12 N1
Paper Exit – Face-Down Stacker Paper Exit – Face-Up Stacker
Paper Jam Code Table for the print engine
Code Number Jam Location
370 Duplex reversal
371 Duplex input
372 Feed error at Duplex
373 Multi-feed in Duplex Unit
380 Feed
381 Transport
382 Exit
