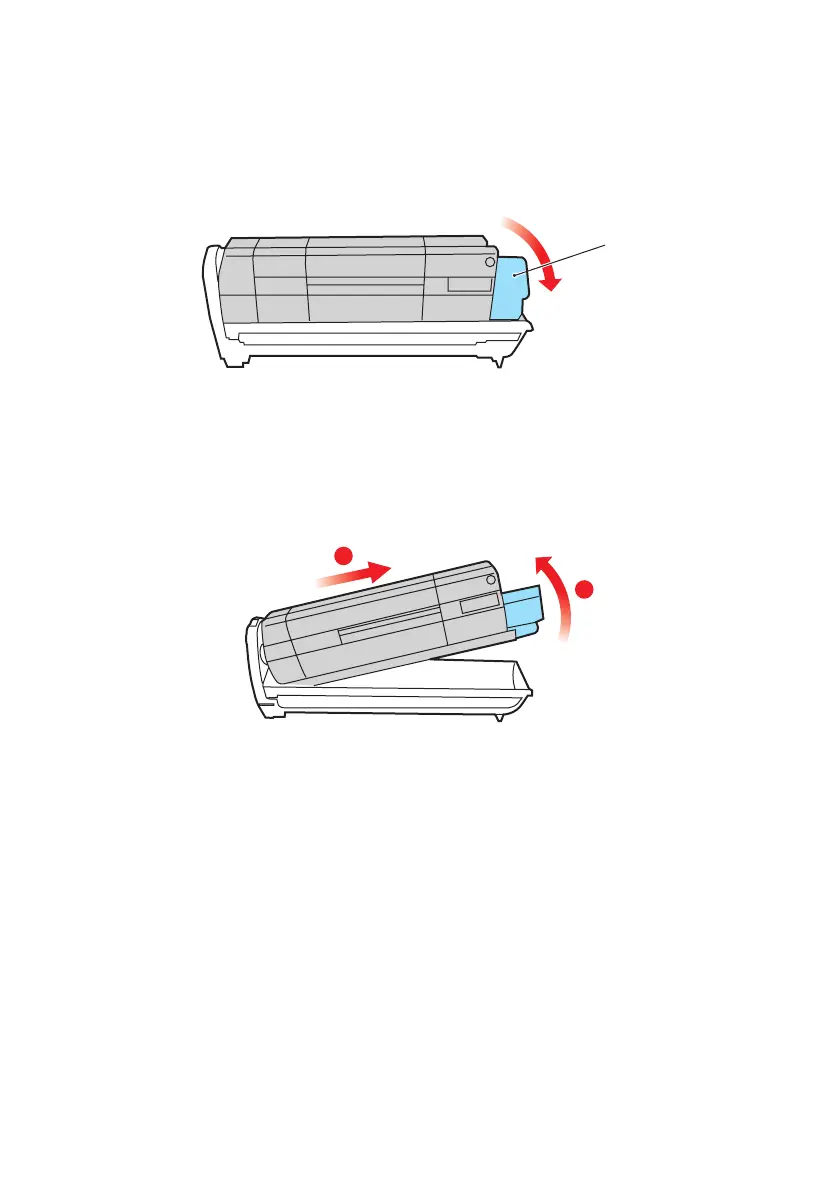

6. With the colored toner release lever (1) to the right, pull

the lever towards you. This will release the bond between

the toner cartridge and the image drum cartridge.

Ton er Re le ase Ou t.eps

7. Lift the right-hand end of the cartridge and then draw the

cartridge to the right to release the left-hand end as

shown, and withdraw the toner cartridge out of the image

drum cartridge. Place the cartridge on a piece of paper to

avoid marking your furniture.

Toner Out Out.eps

8. Take the new image drum cartridge out of its packaging

and place it on the piece of paper where the old cartridge

was placed. Keep it the same way round as the old unit.

Pack the old cartridge inside the packaging material for

disposal.

9. Place the toner cartridge onto the new image drum

cartridge as shown. Push the left end in first, and then

lower the right end in. (It is not necessary to fit a new
