Paper handling > 23

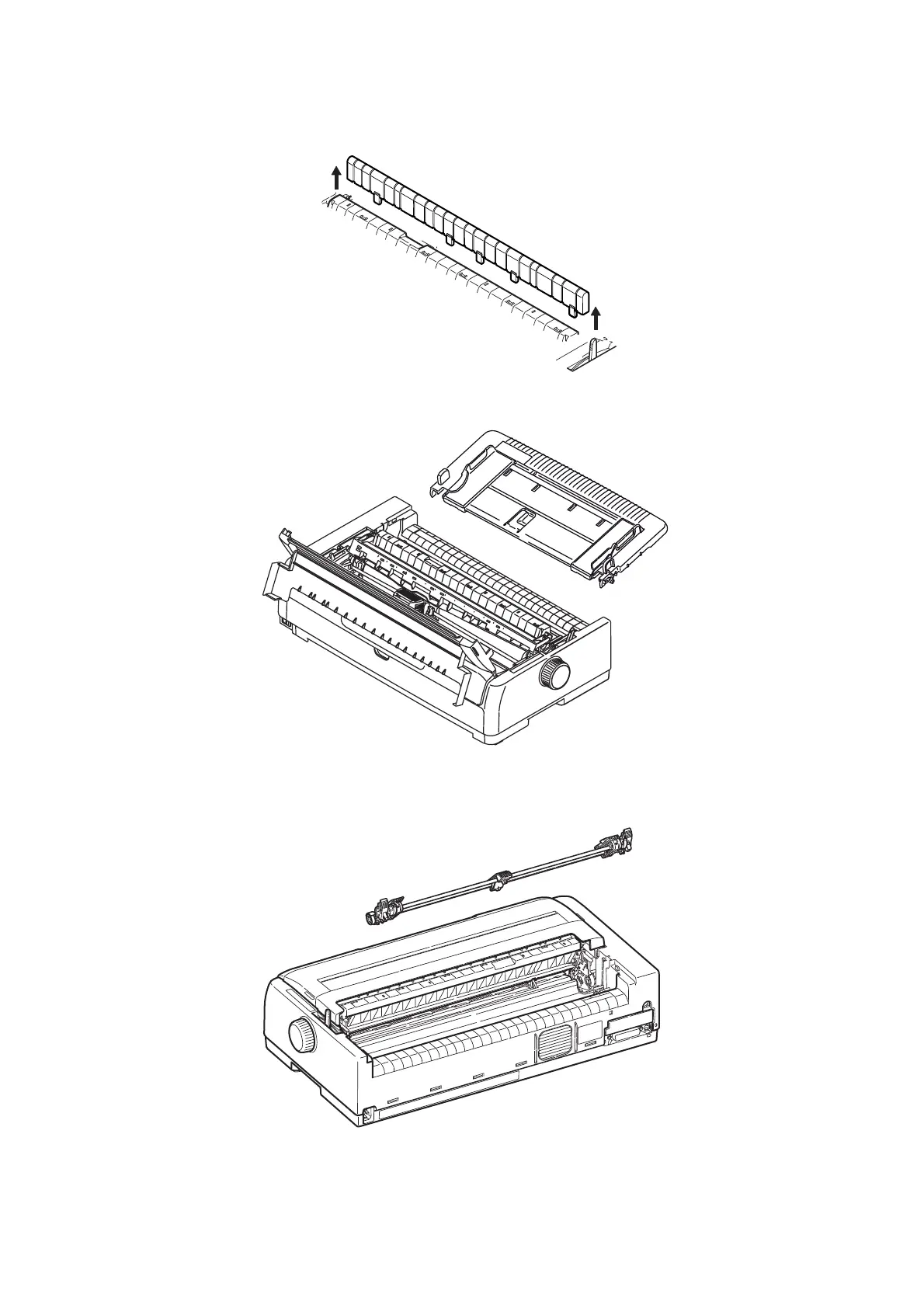

4. Remove the Pull-up Guide assembly support.
5. Remove the top tray by holding the tray by the tabs on both sides and pulling it up.
6. Turn the printer, so that the back of the printer is facing you.
7. Remove the tractor assembly. See “Dismounting the rear pin tractor” on page 21.
8. Turn the printer, so that the front is facing you.
9. Replace the top paper tray by aligning the arrows and then pushing it down.
