Oki MPS2731mc - Sheet-Document; Paper-Weight-Assy; Spring-PW-ADF

44952001TH Rev.2
4-14
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

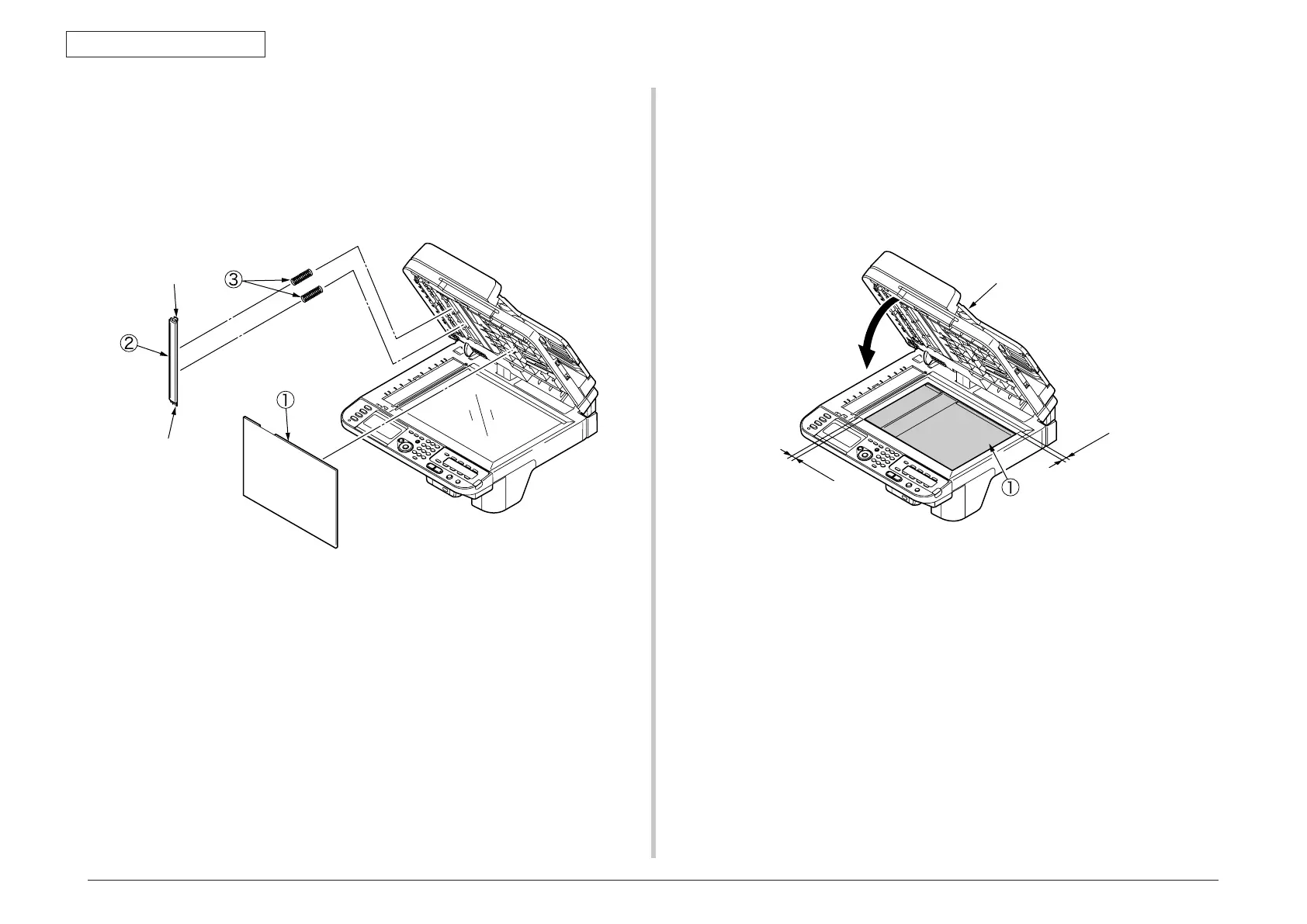

4.2.7.3 Sheet-document / Paper-weight-assy / Spring-PW-ADF
(1) Open the ADF-unit.
(2) Remove the sheet-document
①
.
(3) Remove two claws to remove the paper-weight-assy
②
and two spring-PW-ADF
③
.
Claw
Claw
ADF-unit
0.
5
m
m
0
.5
m
m
<Attention of affix the sheet-document>
(1) Degrease the affix area of ADF-unit.
(2) Remove the peeling-off sheet.
(3) Set the sheet-document
①
(see the figure below).
(4) Close the ADF-unit.
