4.REPLACEMENT OF PARTS

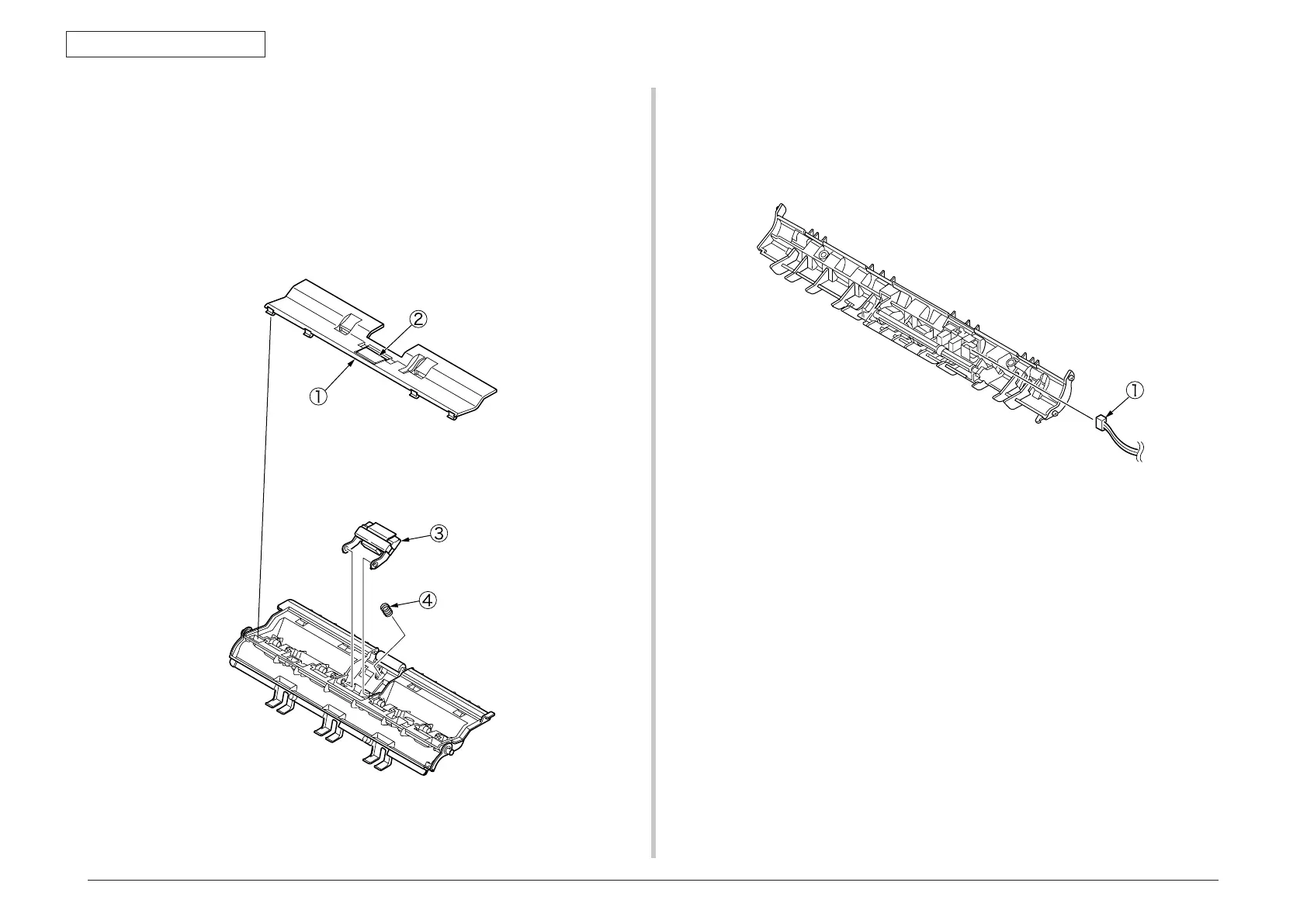

4.2.7.7 Guide-A-sub / Frame-assy-separator / Spring-separator /

Rubber-friction

(1) Remove the guide-A-sub

①with

rubber-friction

②

(2) Remove the frame-assy separator

③

and spring-separator

④

Note! • Ifchangethe

②

… Remove the

②

, then degrease the

①

and afﬁx the

②

 • Ifchangethe

①

… Remove the

①

and

②

together.

4.2.7.8 Cable (ADF-Rev SNS)

(1) Remove the cable

①
