4.REPLACEMENT OF PARTS

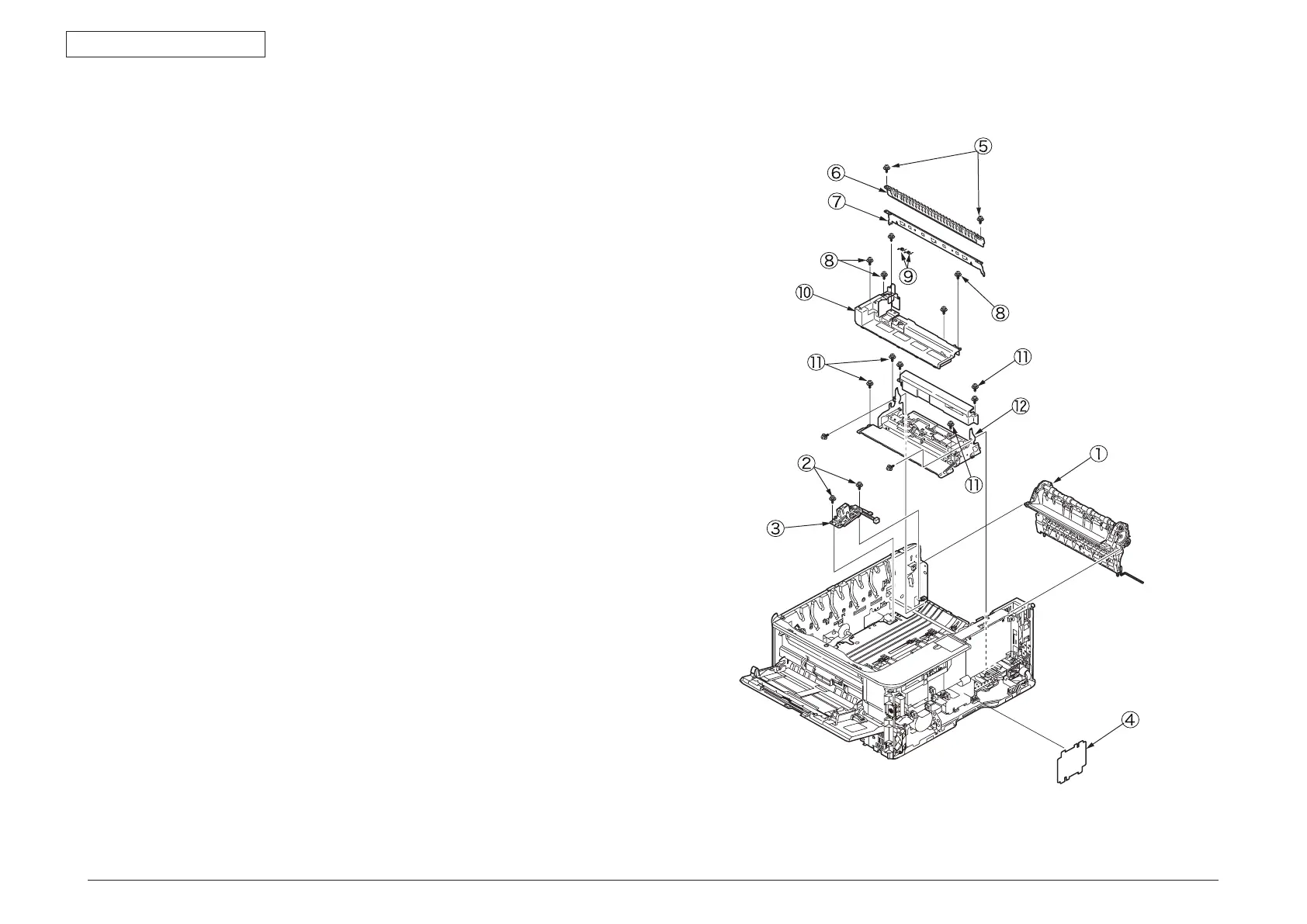

4.2.17 Guide-ejectionassembly,fuserconnector

assembly and color-registration assembly

(1) Remove the left side cover, the right side cover, the rear cover and the top cover

assembly.

(2) Remove the CU/PU board and the low-voltage power supply.

(3) Detachtheguide-ejectionassembly

①

(4) Remove the two (silver-colored) screws

②

to detach the fuser connector assembly

③

(5) Remove the ﬁlm-power board

④

(6) Remove the two (silver-colored) screws

⑤

to remove the cover-beam

⑥

and the

plate-beam

⑦

(7) Remove the three (silver-colored) screws

⑧

to remove the two torsion springs

⑨

and then the cover-code

⑩

(8) Remove the four (silver-colored) screws

⑪

to detach the color-registration

assembly

⑫

Oki MPS2731mc Maintenance Manual
