44952001TH Rev.2

4-22

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

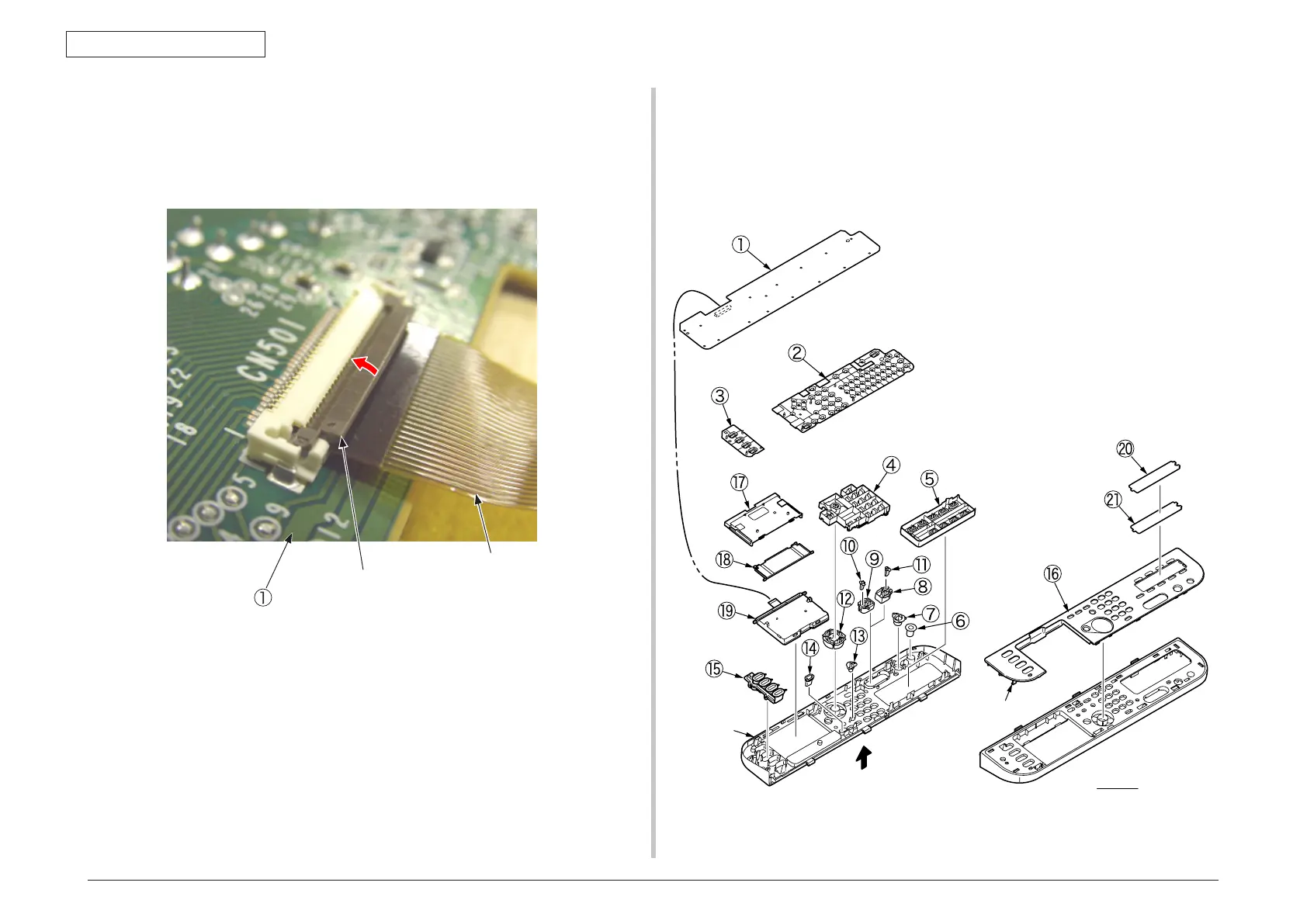

4.2.7.12 Frame-OP-panel / OPE board (MC342/MC362/MC342dw/

MC362w)

(1) Remove the eight claws to remove the OPE board

①

(2) Remove the LCD cable, while part A is raised in the direction of arrow.

8 × claws

11 × Latches

ViewA

Method of removing LCD cable

(3) Remove the rubber-pad (R)

②

and rubber-pad (L)

③

(4) Remove the button and lens

④

⑮

(5) Remove the eleven latches to remove the cover-op-panel

⑯

(6) Remove the cover bottom

⑰

and cover-cable

⑱

and LCD-assy

⑲

(7) Remove the ﬁlm-one-touch

⑳

and sheet-one-touch

󰼼

Part A

LCD cable
